- General Electric IS200AEPAH1BDB Printed Circuit Board
Sale

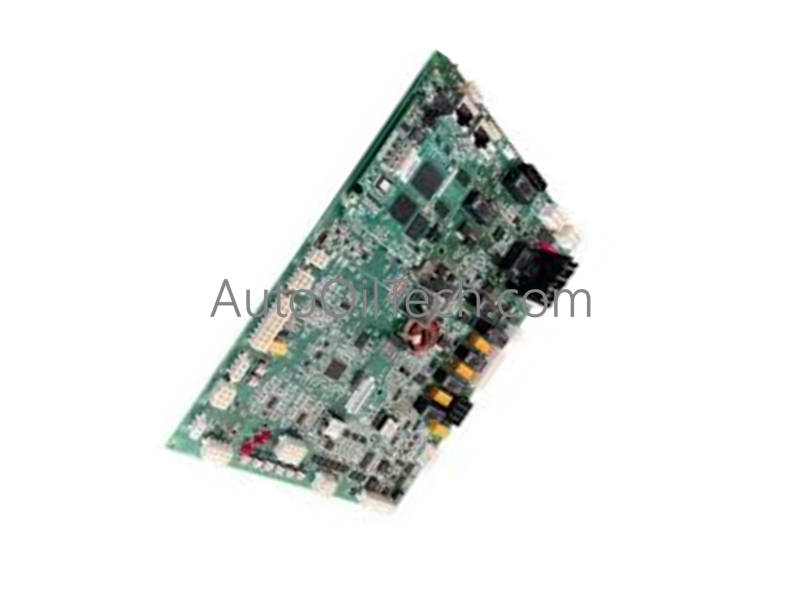

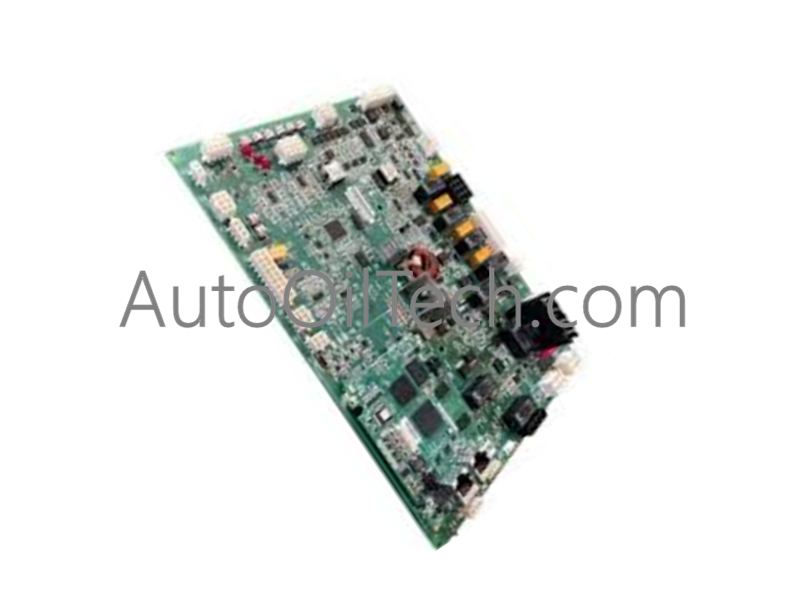

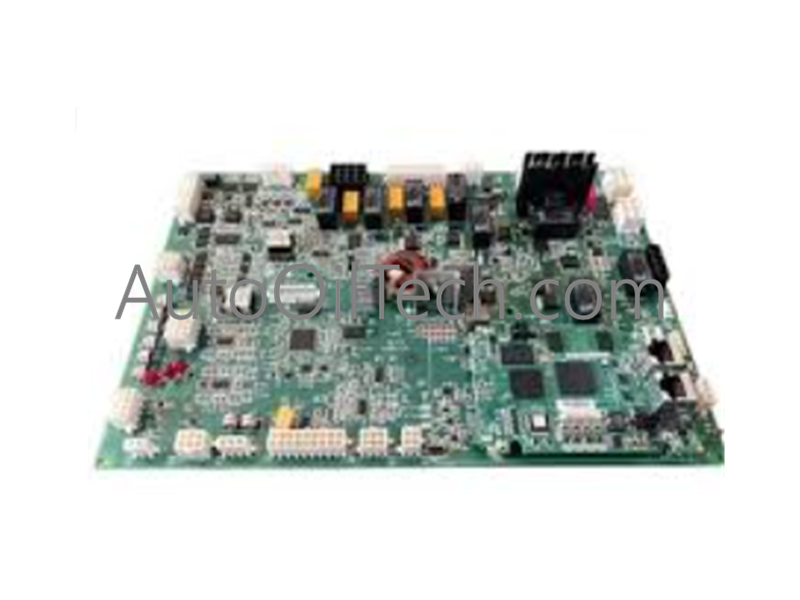

General Electric IS200AEPAH1BDB Printed Circuit Board
No reviews
In stock!
- Part Number: IS200AEPAH1BDB
- Brand: General Electric
- Type: Printed Circuit Boards
- Dimensions: 4.1x12.5x10.5cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The GE IS200AEPAH1BDB, also cataloged as the IS200AEPAH1BDB Printed Circuit Board, operates as a dedicated hardware component for power distribution and Ethernet-based communication within Mark VI turbine control platforms.
Suffix Breakdown & Model Matrix
| Code Element | Designation / Value | Functional Description |
|---|---|---|
| Primary Model | IS200AEPAH1BDB | Main Ethernet-based Power Distribution Module assembly |
| Acronym | EPDM | Ethernet-based Power Distribution Module designation |
| Functional Revision | 1BDB | Hardware and layout revision identifier |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEPAH1BDB |
| Brand | General Electric (GE) |
| Origin | USA / Global Manufacturing Plants |
| Weight | Standard printed circuit board profile (~0.3 kg estimated) |
| Dimensions | Standard Mark VI card form factor |
| Operating Temp | Industrial temperature profile (resistant to high thermal conditions) |
| Power Consumption | Powered via 125 VDC system supply rail |
| Power Supply Rating | 125 VDC |
| Software Frame Rates | 10 ms, 20 ms, and 40 ms execution intervals |
| Communication Protocols | Ethernet-based system communication |
| System Architecture | Supports simplex or triple redundant (TMR) configurations |
Firmware Flash Compatibility and Deterministic Networks
Operating within industrial control rack assemblies, the module maintains deterministic network communication velocities across backplane and Ethernet links. Firmware flash compatibility and hardware revision alignment coordinate execution across 10 ms, 20 ms, and 40 ms software frame rates. Built-in fault self-diagnosis circuits monitor internal power distribution rails and communication integrity, isolating faults to ensure safe runtime execution in high electromagnetic interference (EMI) environments.
Frequently Asked Questions
Q: What primary function does the IS200AEPAH1BDB module serve within the Mark VI control system?
A: It operates as an Ethernet-based Power Distribution Module (EPDM) managing power routing and system communication.
Q: What power supply voltage is required to energize the module?
A: The hardware is rated for a nominal 125 VDC power supply input.
Q: Does the board support redundant system architectures?
A: Yes, it is designed for deployment in both simplex and triple redundant (TMR) application configurations.
Field Installation Guidelines
Ensure that all rack power is completely de-energized prior to inserting or extracting the IS200AEPAH1BDB printed circuit board from the Mark VI chassis. Handle the board strictly by its edges while wearing an ESD-safe wrist strap to prevent electrostatic discharge damage. Align the module carefully with card slot guides, push firmly to seat the backplane connectors, and secure retention screws to maintain mechanical stability and ground continuity.
