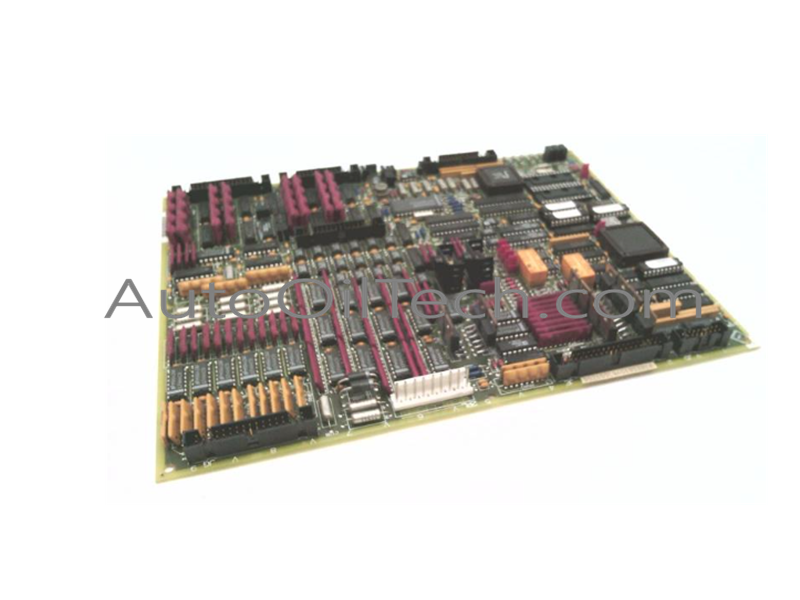

General Electric DS215TCQAG1BZZ01A Circuit Board

Configured for analog signal processing in Mark V Speedtronic systems, the General Electric DS215TCQAG1BZZ01A (DS215TCQA Circuit Board with Firmware) provides direct physical execution of LVDT input monitoring and relay-based control loop management within automated turbine drive assemblies.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control & Drive Characteristics

• Backplane bus communication velocity: The board manages high-speed LVDT data acquisition and digital control regulator updates, utilizing high-density ribbon cable interfaces to maintain deterministic timing for turbine protection logic.
• Profinet / EtherNet/IP deterministic networks: While utilizing the proprietary Mark V backplane architecture, the board is engineered to maintain signal synchronization necessary for integration within synchronized control networks.
• I/O density scaling: The PCB integrates multiple 34-pin (JA, JB, JD, JE, JG, 3PL) and 40-pin connectors to maximize I/O connectivity for redundant transducer inputs (VDC1 and VDC2).
• Firmware flash compatibility: The board utilizes integrated firmware and digital control regulators configurable via the Mark V I/O software package, ensuring consistent operation across gas, steam, and wind turbine applications.

Frequently Asked Questions

Q: What action is taken by the board during a current fault suicide event?

A: When current fault suicide is enabled, a relay on the board de-energizes, and a set of normally-closed contacts shorts the output terminals together to achieve a safe state.

Q: How should ribbon cables be handled during board replacement?

A: Inspect the defective board while installed and mark each ribbon cable with its corresponding connector ID (e.g., JA, JB) to ensure precise reconnection during the installation of the replacement board.

Field Installation Guidelines

• Mounting: Install the board between existing cards in the cabinet, ensuring the component side—specifically the six diagnostic LEDs—is visible through the glass front of the board cabinet for real-time monitoring.
• Grounding: Ensure the rack assembly is connected to the cabinet common ground. A solid ground reference is mandatory to maintain the signal integrity of the sensitive LVDT transducer inputs.
• Wiring: Connect ribbon cables by the connector housing only to prevent conductor fatigue. Ensure the 34-pin connectors (JA, JB, JD, JE, JG, 3PL) are fully seated and that the cable orientation matches the original configuration to prevent logic errors. Use the factory-supplied LED labels to verify system health post-installation.
