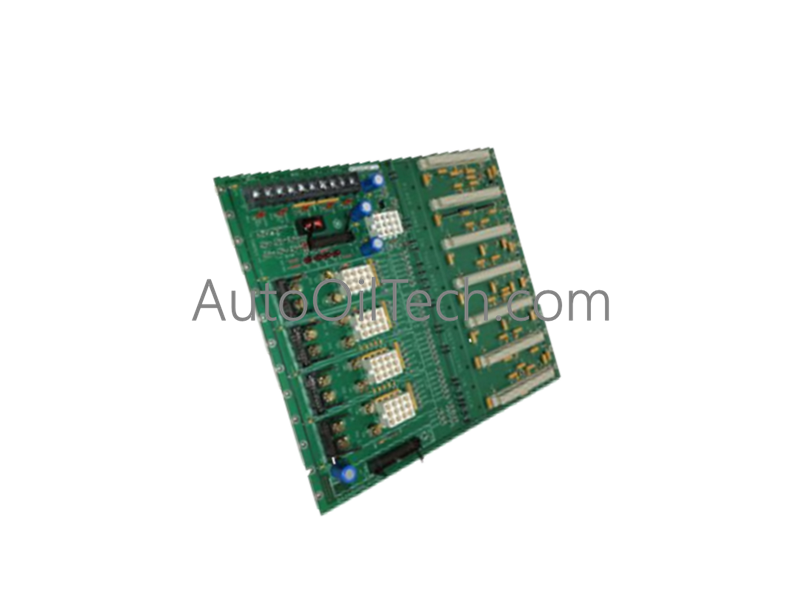

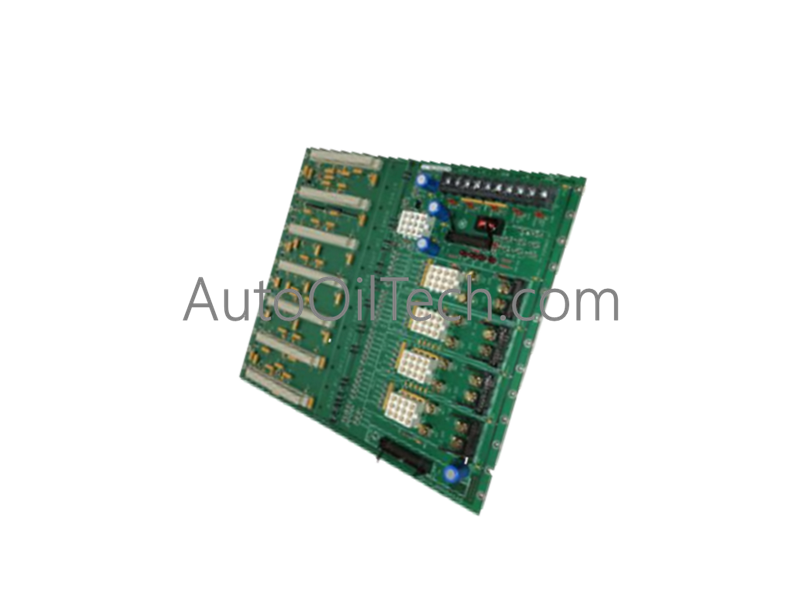

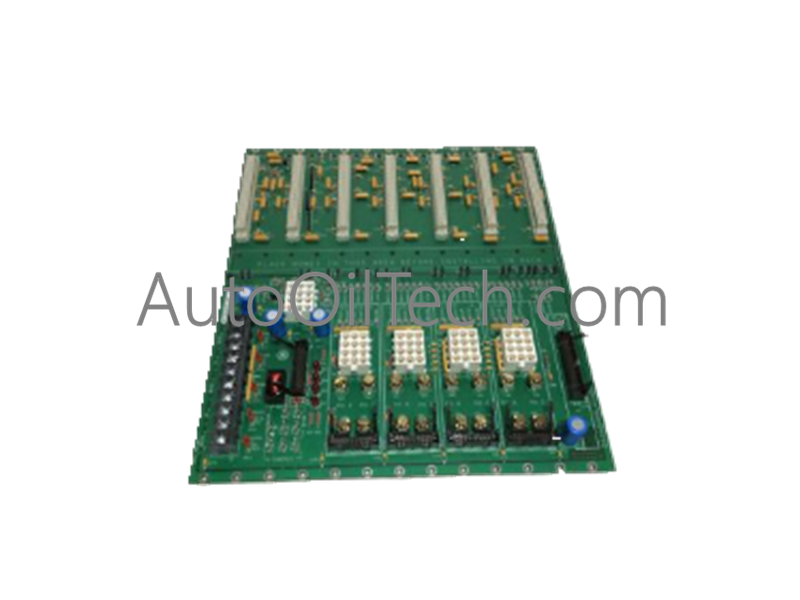

General Electric DS200VPBLG2A VME Backplane Boards

In stock!
  • Part Number: DS200VPBLG2A
  • Brand: General Electric
  • Type: VME Backplane Boards
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: General Electric LS2100 , VME Backplane Boards

Product Description

The General Electric DS200VPBLG2A, also cataloged as the DS200VPBLG2A VME Backplane Boards, operates as a dedicated hardware component for bus signal routing and power distribution within LS2100 Series exciter control architectures.

Suffix Breakdown & Model Matrix

  • DS200VPBL: Base catalog part number designating the VME backplane board platform.
  • G2: Group variation suffix indicating the second hardware version iteration.
  • A: Functional product revision suffix indicating the specific manufacturing revision level.

Hardware Specifications

Parameter Specification
Model DS200VPBLG2A
Brand General Electric (GE) Industrial Systems
Origin United States
Weight Standard industrial PCB weight
Dimensions Standard VME backplane form factor
Operating Temp Industrial operating temperature profile
Power Consumption P1 backplane and power bug fed
Module Type VME Backplane Board
System Compatibility LS2100 Series Exciter Control

Industrial Control & Drive Technical Properties

Operating within industrial control and drive architectures, the VME backplane board supports backplane bus communication velocity and deterministic network interactions. The hardware architecture features I/O density scaling capabilities, firmware flash compatibility, ten electrical power bugs connecting the P1 backplane, a 34-pin ribbon EXJV exciter connector for bridge signal management, and eight VME-type connectors (six double-wide spaced and two single-spaced) in section J2 supporting DSPC, gate distribution status boards, exciter boards, and I/O extender daughterboards.

Frequently Asked Questions

Q: Does the DS200VPBLG2A backplane board support live insertion and removal under power?

A: Hot-swap operations are not permitted; system power must be completely de-energized and electrostatic discharge (ESD) precautions observed prior to handling or servicing the board.

Q: What power connector type and grounding configuration does the board utilize?

A: The board utilizes a 12-pin Mate-n-Lock connector (JAA) featuring isolated digital common ground (DCOMI) and isolated analog common ground (ACOMI) connections.

Field Installation Guidelines

  1. Ensure the control cabinet chassis slot is clean and free of particulate debris prior to backplane board mounting.
  2. Verify that all system power supply rails are completely isolated before installing or servicing the hardware module.
  3. Observe proper electrostatic discharge (ESD) precautions by wearing a grounded wrist strap when handling the printed circuit board.
  4. Check all ten power bugs, the 34-pin EXJV ribbon cable, and VME connector alignments against system wiring diagrams before energizing.
