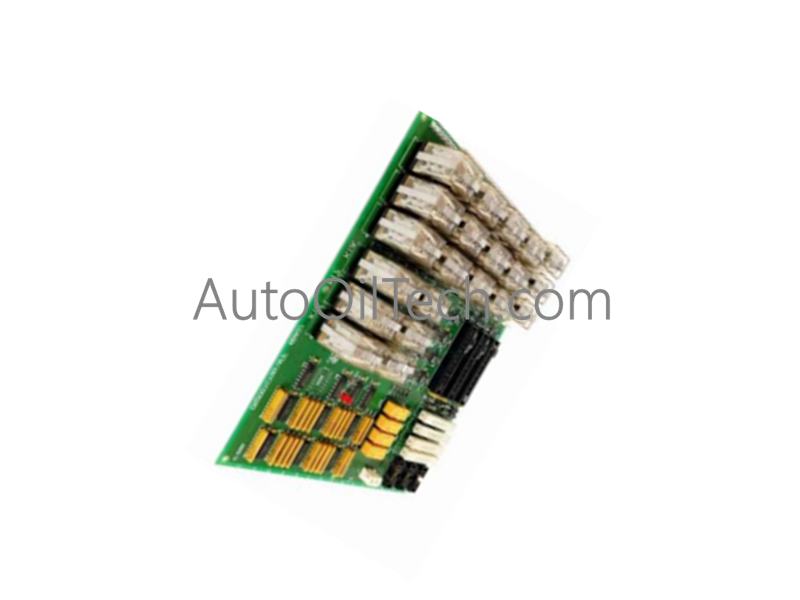

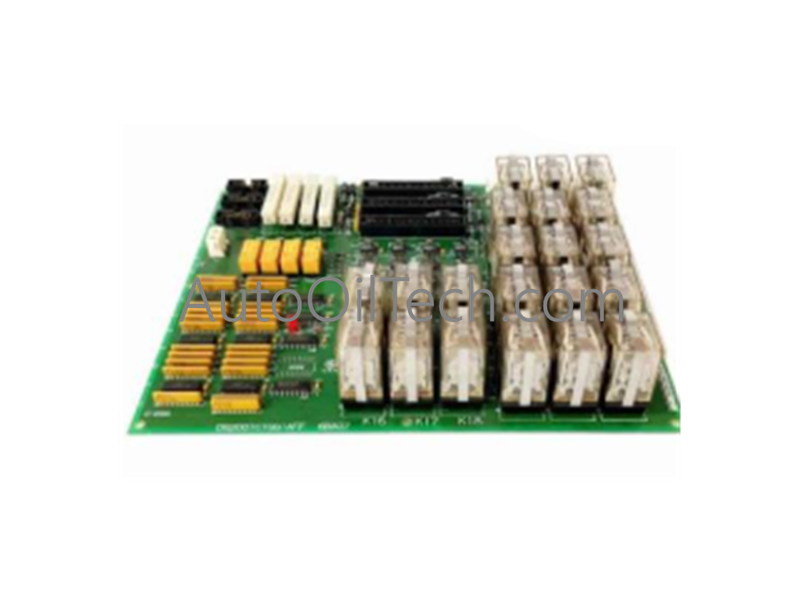

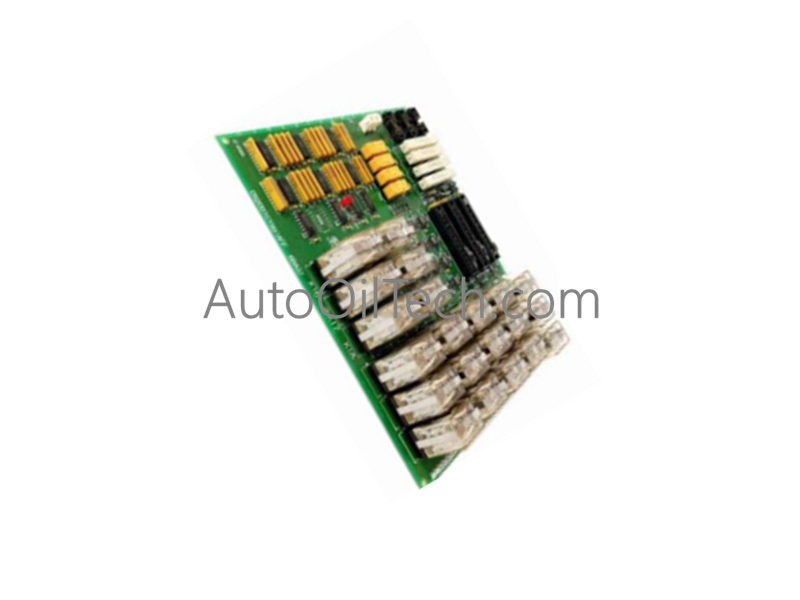

General Electric DS200TCTGG1A Board

In stock!
  • Part Number: DS200TCTGG1A
  • Brand: General Electric
  • Type: Communication Modules
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: Communication Modules , General Electric Mark V

Product Description

Configured for turbine control and signal management in Speedtronic networks, the General Electric DS200TCTGG1A (DS200TCTGG1A Speedtronic Control System Board) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200TCTGG1A
Brand General Electric
Origin Global Manufacturing Facility
Weight 3 kg (Shipping weight)
Dimensions Standard Mark V rack form factor
Operating Temp Standard industrial cabinet range
Power Consumption Backplane-supplied low voltage logic power
Board Type Speedtronic Control System Board
Onboard Interface 21 plug-in relays, three 50-pin connectors, two 12-pin connectors

Profinet / EtherNet/IP Deterministic Networks, I/O Density Scaling, and Firmware Flash Compatibility

The control system board manages high-speed logic switching and signal routing across deterministic backplane architectures, supporting rigorous I/O density scaling for turbine management applications. Firmware flash compatibility allows seamless integration of updated operational logic through system programming interfaces without requiring physical hardware modifications. Onboard plug-in relays and multi-pin connectors maintain deterministic response times across critical turbine control loops.

Frequently Asked Questions

Q: What is the primary function of the DS200TCTGG1A board within the Speedtronic system?

A: It functions as a specialized control system board designed for relay switching and signal interfacing in Mark V turbine control platforms.

Q: Can this control board be replaced while the system rack is energized?

A: No. All power feeds to the drive and control cabinet must be completely isolated and locked out before extracting or inserting the board.

Q: How are external communication and internal links established on the board?

A: The board utilizes three 50-pin connectors and two 12-pin connectors alongside twenty-one plug-in relays for comprehensive signal routing.

Field Installation Guidelines

  1. Ensure all system power sources and external circuit feeds to the control cabinet are fully isolated and verified dead.
  2. Put on an approved ESD ground strap and inspect the slot connectors for alignment and absence of damage.
  3. Slide the DS200TCTGG1A board firmly into the designated guide rails, ensuring complete engagement with the backplane connectors.
  4. Secure any retaining hardware and verify diagnostic indicators via the engineering terminal before re-energizing the system.
