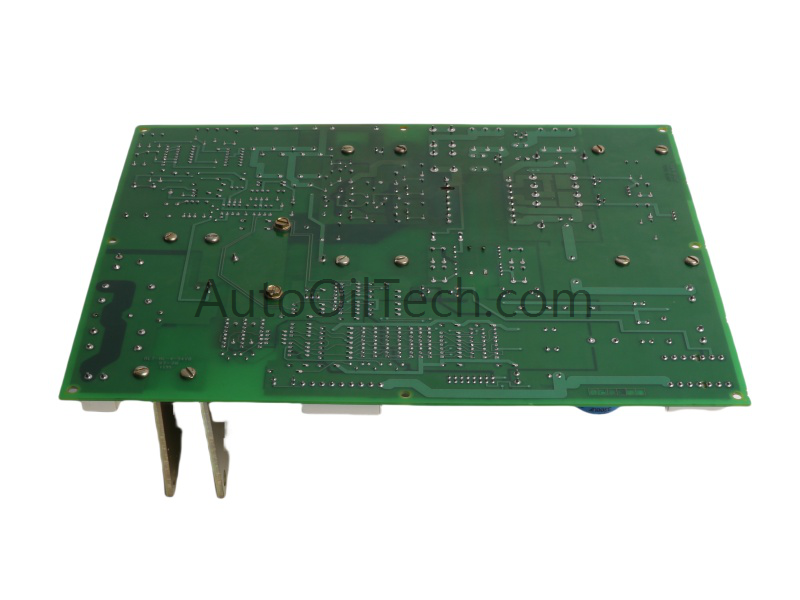

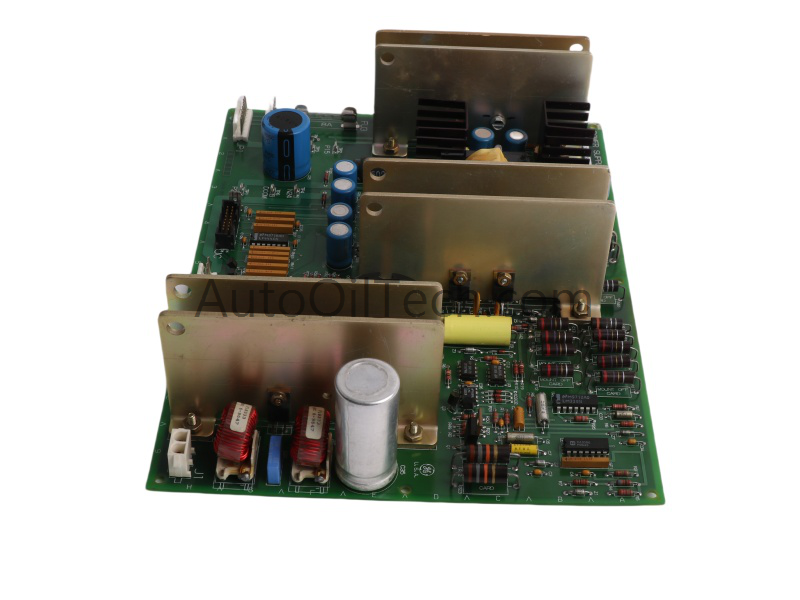

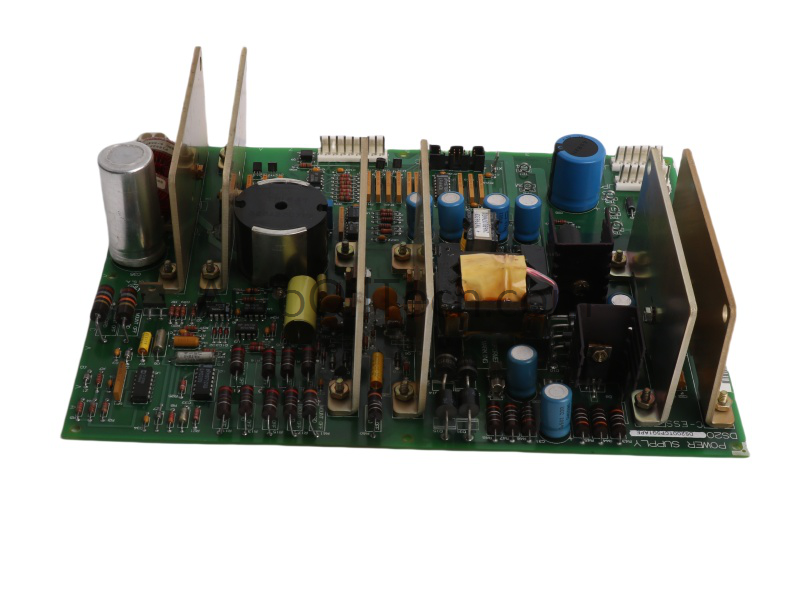

The DS200TCPSG1ARE DC Power Supply Input Board by General Electric is a legacy module designed for the Mark V turbine control system. It converts 125 VDC input into multiple regulated outputs, supporting critical control components across GE’s Speedtronic platform.
Technical Specifications
Specification
Detail
Model Number
DS200TCPSG1ARE
Product Series
Multilin / Mark V
Manufacturer
General Electric (GE)
Module Type
DC Power Supply Input Board
System Compatibility
DCS / Speedtronic Mark V
Dimensions (cm)
28 × 21.3 × 6.8
Weight
1.2 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Performance & Features
The DS200TCPSG1ARE board delivers regulated outputs of +5 VDC, +12 VDC, +24 VDC, and -24 VDC from a 125 VDC input. It includes:
One 16-pin and one 9-pin connector for system integration
Three replaceable fuses with clamp-secured current paths
Multiple test points for diagnostics and maintenance
Surge protection and voltage regulation circuitry
Its rugged design ensures stable operation in demanding turbine environments, including wind, steam, and gas applications.
Application & Compatibility
The DS200TCPSG1ARE supports legacy GE Speedtronic systems and remains in active use despite the Mark V series being discontinued. It integrates with modules like DS200SDCCG1A and DS200LDCCH1A, making it ideal for refurbishment, spare part replacement, and long-term system support.
