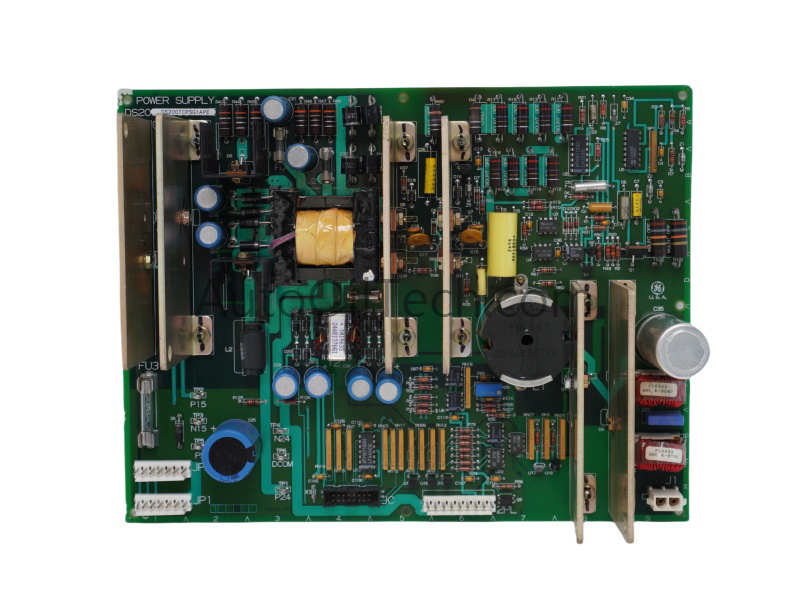

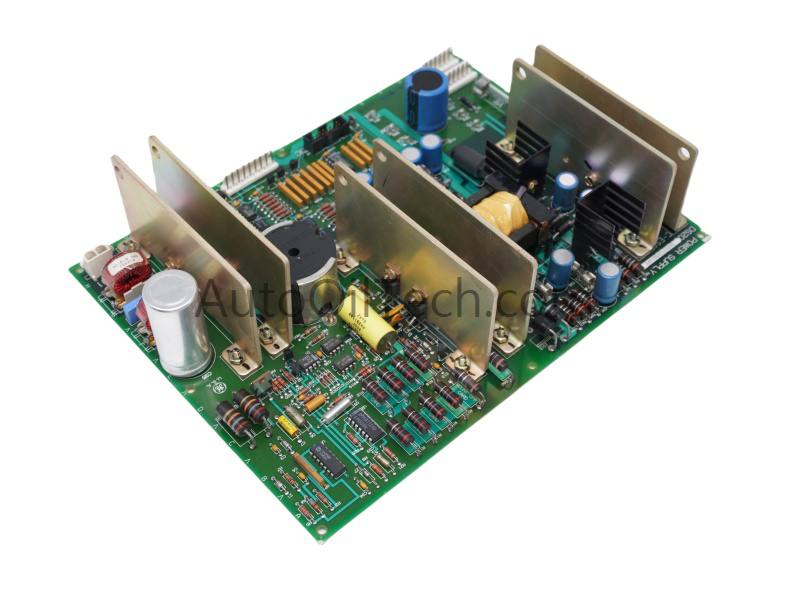

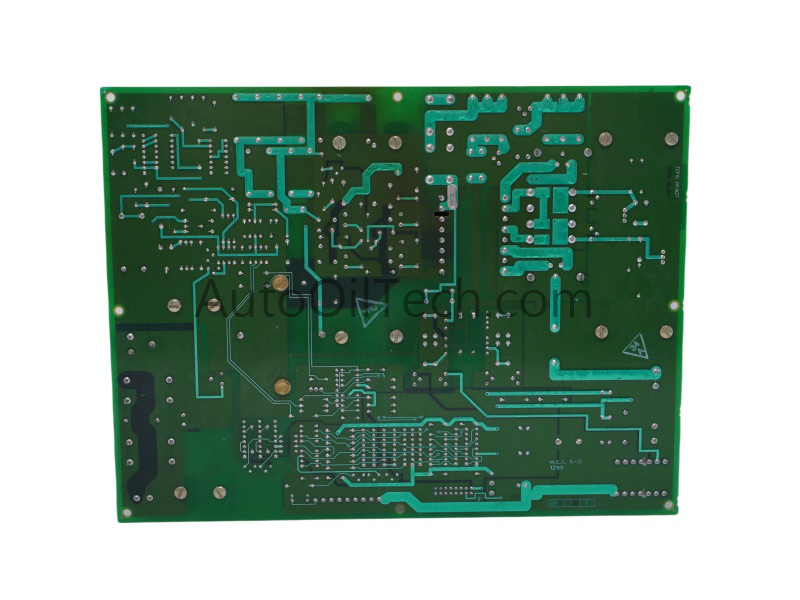

The DS200TCPSG1AME DC Input Power Supply Circuit Board from General Electric’s Mark VIE turbine control series is a vital module engineered to convert 125 VDC input power into the required voltages for multiple Mark V applications. Designed for reliability and seamless integration, it supports critical functions such as powering RTDs, servo valve current outputs, and microprocessor supplies.
Key Technical Specifications
Model:DS200TCPSG1AME
Type: DC Input Power Supply Circuit Board
System Compatibility: Mark VIE / Mark V Turbine Control Systems
Input Power: 125 VDC via J1 connector
Output Distribution: Connectors 2PL, JC, JP1, JP2 supply power to TCQC, TCCA, TCDA boards
Hardware Components:
Protective fuses
Heat sinks
Resistor arrays
Transformers
Inductor coils
Metal oxide varistors
Diagnostics: Test points (TP) for troubleshooting and monitoring
Design Features:
Factory drilled with GE logo and identifying marks
Protective PCB coating for durability
No hardware/software configuration required for installation
Physical Specs:
Dimensions: 28 × 21.3 × 6.8 cm
Weight: 1.2 kg
HS Code: 8537101190
Origin: USA
Condition: Brand New
Availability: In Stock
Application Scenarios
Power conversion and distribution in Mark V turbine control systems
Supplying regulated voltages for RTDs, servo valves, and microprocessors
Reliable integration into DCS environments requiring stable DC input conversion
FAQ
Q: What input voltage does the DS200TCPSG1AME handle? A: It converts 125 VDC input power into required system voltages.
Q: Does the board require configuration before use? A: No, it integrates directly without hardware or software adjustments.
Q: Which boards receive power from this module? A: TCQC, TCCA, and TCDA boards via dedicated connectors.
