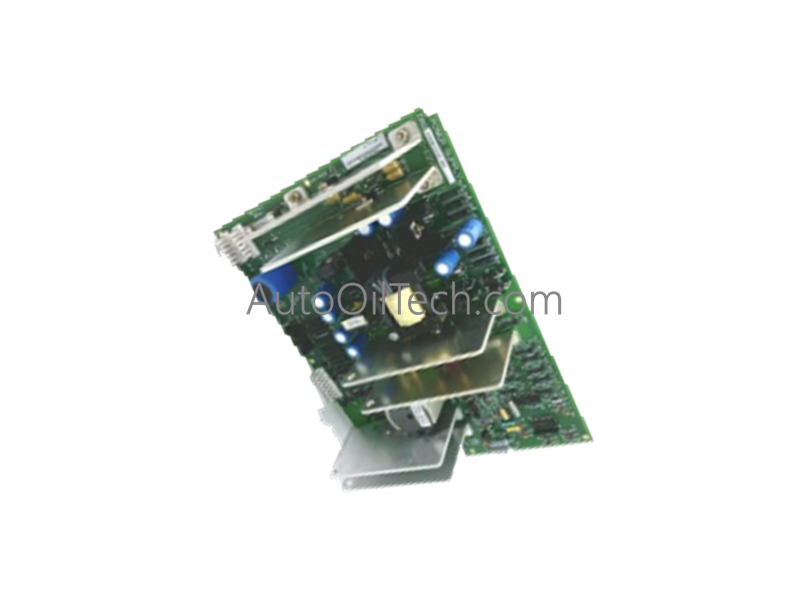

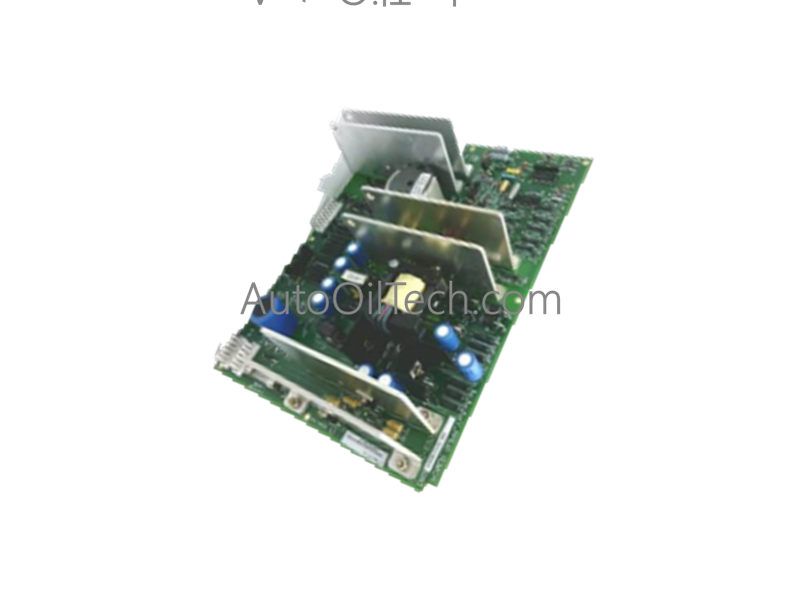

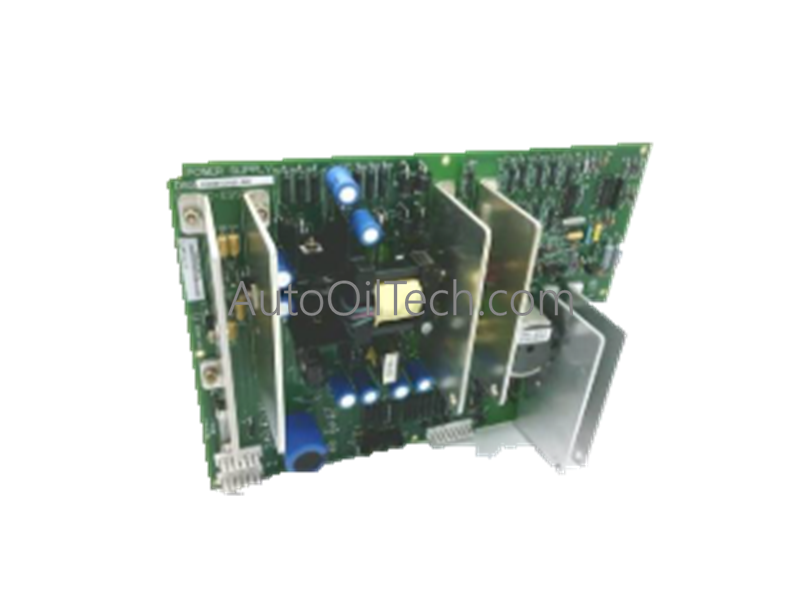

Configured for power supply regulation and distribution in turbine control networks, the General Electric DS200TCPSG1A (DS200TCPSG1A Power Supply Board) provides direct physical/electrical execution.
Hardware Specifications
Parameter
Specification
Model
DS200TCPSG1A
Brand
General Electric
Origin
Global Manufacturing Facility
Weight
2.56 lbs
Dimensions
Standard Mark V rack form factor
Operating Temp
Standard industrial cabinet range
Power Consumption
DC input power regulation load
Board Type
PC Board Assembly - Power Supply Board
System Compatibility
Mark V Turbine Control Platform
Profinet / EtherNet/IP Deterministic Networks, I/O Density Scaling, and Firmware Flash Compatibility
The power supply board regulates DC input power across deterministic backplane architectures, supporting stable power distribution and I/O density scaling for multi-core turbine controllers. Firmware compatibility and integrated circuit regulation ensure minimal voltage ripple and consistent signal delivery to sensitive processing modules. Onboard power conversion paths maintain deterministic response times and electrical isolation across control loops.
Frequently Asked Questions
Q: What is the primary function of the DS200TCPSG1A board in the control system?
A: It functions as a power supply board assembly designed to regulate and distribute DC input power within the Mark V turbine control architecture.
Q: Can this power supply board be hot-swapped while the system is energized?
A: No. All electrical input power feeds and cabinet supplies must be completely isolated and locked out prior to handling or replacing the board.
Q: Does the board process DC or AC input voltages?
A: The board is engineered to receive and regulate DC input power for internal system distribution.
Field Installation Guidelines
Ensure all system power sources and external DC input feeds to the control cabinet are fully isolated and verified de-energized.
Put on an approved ESD ground strap and inspect the mounting slot connectors for alignment and cleanliness.
Slide the DS200TCPSG1A board securely into the designated guide rails, ensuring firm engagement with the backplane terminals.
Fasten any retention mechanisms completely and verify output power status indicators using diagnostic tools prior to system re-energization.
