The General Electric DS200TCPDG1BEC is a power distribution PCB within the Mark V Turbine Control System. It provides critical fuse protection and power management for wind, steam, and gas turbine assemblies. With dimensions of 29.2x27x5cm and a weight of 0.96kg, this module remains a vital legacy component in GE’s Speedtronic control technology.
Technical Specifications
Parameter
Value
Model Number
DS200TCPDG1BEC
Module Type
Power Distribution Board
Manufacturer
GE
Product Range
Multilin / Mark V
Condition
Brand New
Weight
0.96 kg
Dimensions
29.2 x 27 x 5 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active (Legacy Series)
Communication Service
Ethernet router
Functional Description

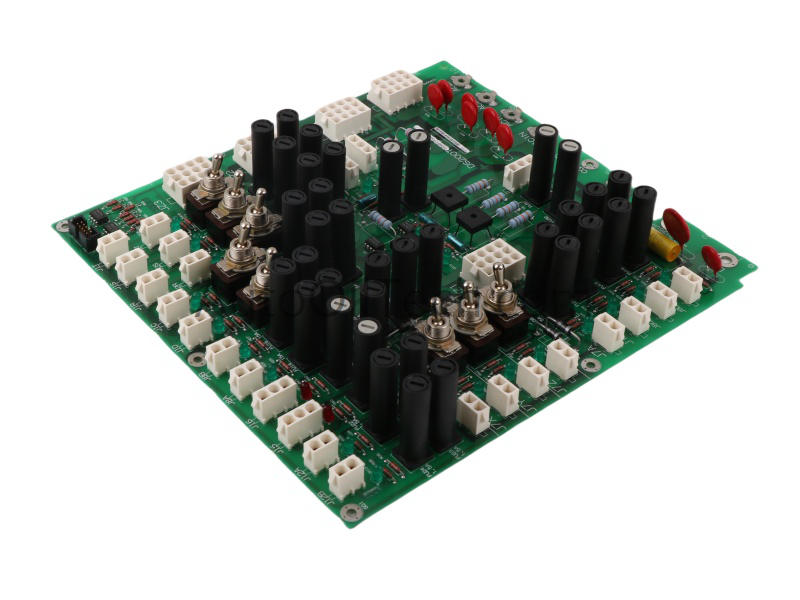

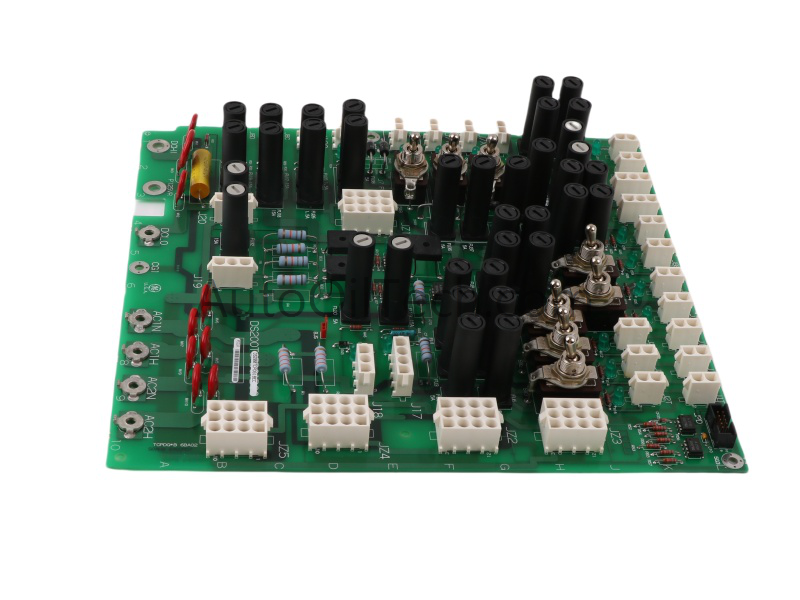

The GE DS200TCPDG1BEC serves as a power distribution module featuring eight toggle switches, 36 fuses housed in black canisters, and 36 corresponding “OK” LEDs for fuse status indication. Each fuse is easily replaceable by twisting open the canister tops, while adjacent LEDs provide clear visual feedback. Additional components include four signal wire terminals and a 10-pin connector, ensuring reliable integration. The board has undergone three revisions, requiring compatibility checks before replacement.
Applications and Compatibility
The DS200TCPDG1BEC is part of GE’s Mark V Turbine Control System, supporting wind, steam, and gas turbine automation. Its accessible design reduces downtime through straightforward fuse replacement and LED diagnostics. Despite being a legacy product, it remains relevant for operators maintaining Speedtronic-based systems.
