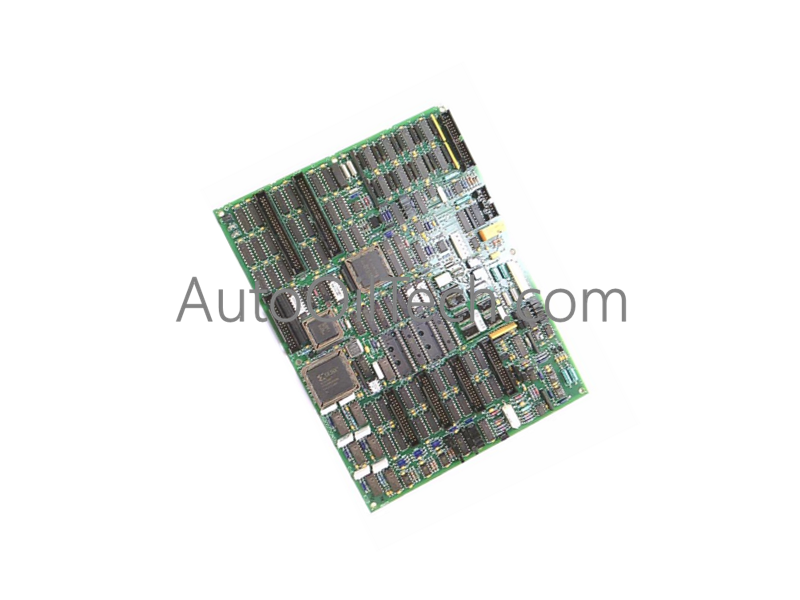

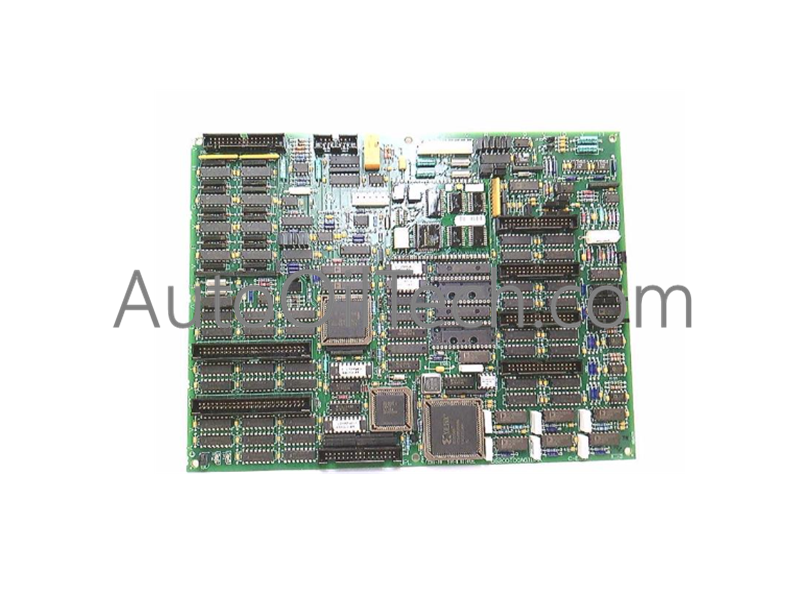

General Electric DS200TCCAG1B PC Board

In stock!
  • Part Number: DS200TCCAG1B
  • Brand: General Electric
  • Type: Communication Modules
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: Communication Modules , General Electric Mark V

Product Description

Configured for analog I/O control and signal processing in Mark V turbine management networks, the General Electric DS200TCCAG1B (DS200TCCAG1B Analog I/O Control Card) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200TCCAG1B
Brand General Electric
Origin Global Manufacturing Facility
Weight 1.11 lbs
Dimensions Standard Mark V rack form factor
Operating Temp Standard industrial cabinet range
Power Consumption Backplane-supplied low voltage logic power
Board Type Analog I/O Control Card / SDCC PC Board (Revision 1B)
System Compatibility Speedtronic Mark V Platform

Profinet / EtherNet/IP Deterministic Networks, I/O Density Scaling, and Firmware Flash Compatibility

The analog I/O control card processes precision sensor inputs and control outputs across deterministic backplane networks, supporting rigorous I/O density scaling for turbine regulation loops. Firmware flash compatibility enables software-based updates of control algorithms and parameter configurations via system programming interfaces without requiring physical hardware modifications. Onboard communication channels maintain deterministic response times and signal synchronization across multi-core architectures.

Frequently Asked Questions

Q: What is the primary function of the DS200TCCAG1B card in the control system?

A: It functions as an analog I/O control card and SDCC PC board designed to manage analog signal acquisition and processing within the Mark V platform.

Q: Can this control card be replaced while the system rack is energized?

A: No. All power feeds to the control cabinet and rack must be completely isolated and locked out before extracting or installing the card.

Q: Does the board support firmware configuration updates?

A: Yes. Firmware flash compatibility allows direct updating of operational parameters and software logic through system programming tools.

Field Installation Guidelines

  1. Ensure all system power sources and external circuit feeds to the control cabinet are fully isolated and verified de-energized.
  2. Put on an approved ESD ground strap and inspect the slot connectors and backplane pins for alignment and cleanliness.
  3. Slide the DS200TCCAG1B board smoothly into the designated guide rails, ensuring secure engagement with the internal backplane connectors.
  4. Fasten any retention mechanisms completely and verify diagnostic indicators via the engineering terminal before re-energizing the system.
