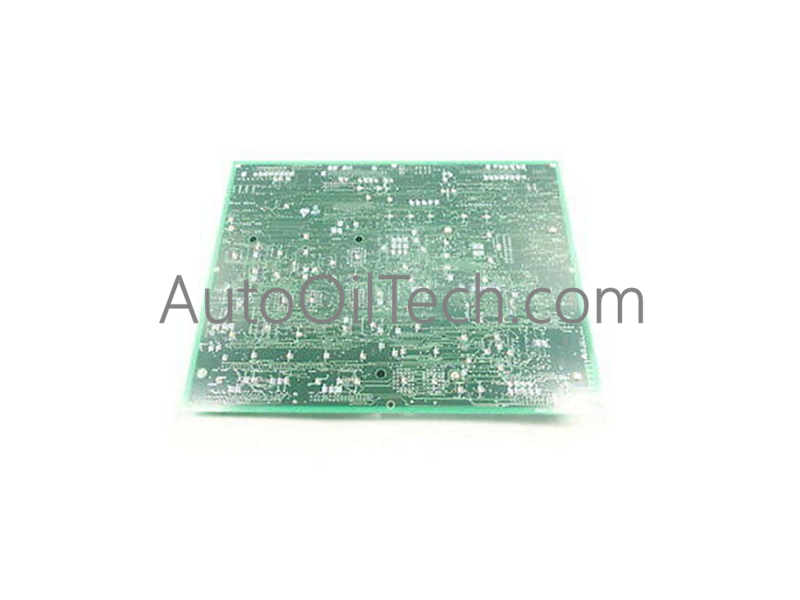

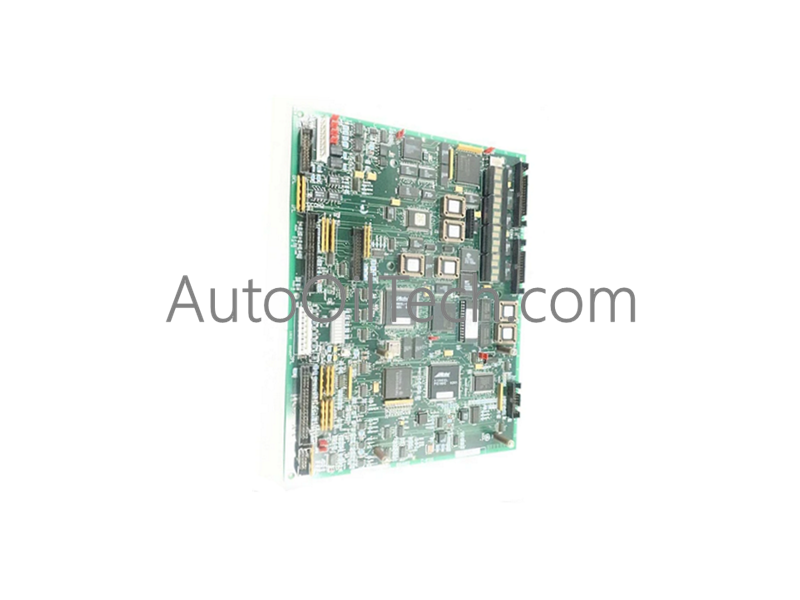

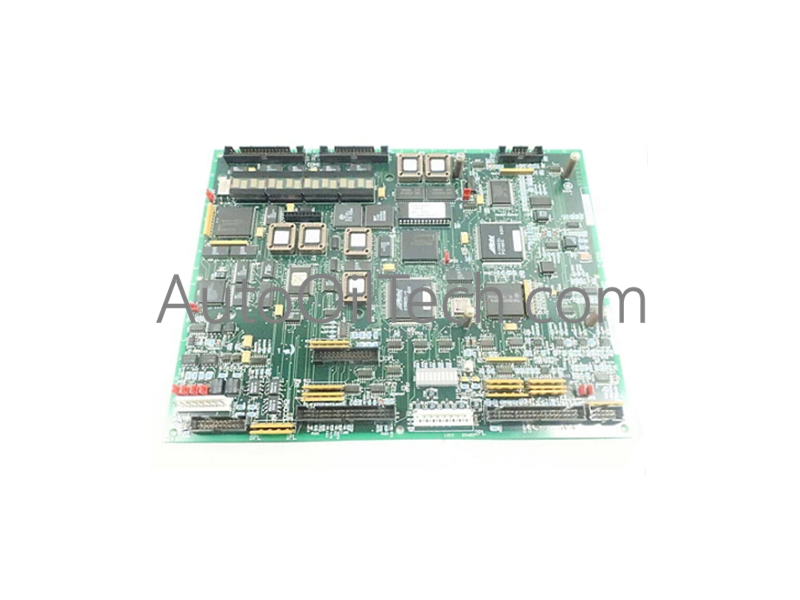

General Electric DS200SIOBG1AAA Mark V VME Input/Output Board

The General Electric DS200SIOBG1AAA, also cataloged as the SIOBH1A VME Input/Output Board, serves as the primary DS200SIOBG1AAA I/O expansion module utilized to execute high-speed data transfer between controllers and peripheral devices across Mark V turbine control system platforms.

Suffix Breakdown & Model Matrix

The DS200SIOBG1AAA identification code provides the following hardware configuration details:

• DS200: Standard Mark V Series assembly type.
• SIOB: Functional product abbreviation (SC2000 I/O Board).
• G1: Group One Mark V Series product grouping.
• AAA: Revision history (A-grade functional revision, A-grade secondary functional revision, A-grade artwork configuration).

Hardware Specifications

Industrial Control and Network Execution

• Backplane Bus Communication Velocity: The module interfaces with the SC2000 subsystem via the VME backplane, utilizing high-speed bus arbitration to maintain deterministic data exchange cycles. Firmware flash compatibility is governed by the specific SC2000 rack backplane revision, ensuring data coherence during I/O expansion.
• Profinet / EtherNet/IP Deterministic Networks: The board architecture supports sub-millisecond signal processing, allowing the control processor to manage peripheral device state changes with the timing precision required for gas and steam turbine management.
• I/O Density Scaling: Designed for modular expansion, the board utilizes the VME bus protocol to scale digital and analog signal handling capacity without exceeding host rack backplane power dissipation limits.

Frequently Asked Questions

Q: Can the DS200SIOBG1AAA be installed in non-VME rack environments?

A: No. The board is mechanically and electrically keyed for standard VME backplane integration. Attempting to mount or interface this board outside of a VME rack will result in connector pin damage and logical bus conflicts.

Q: Is this module capable of active hot-swapping?

A: No. The DS200SIOBG1AAA does not support active hot-swapping. You must isolate and disconnect all rack-level power supplies before insertion or extraction to prevent transient current spikes from damaging the VME bus transceiver chips.

Field Installation Guidelines

• VME Bus Alignment: Ensure the board is aligned vertically within the VME rack card guides before applying pressure to the faceplate. Forceful insertion without proper alignment can cause bent pins on the backplane connector.
• Grounding and Bonding: Verify that the VME rack chassis is securely bonded to the main control cabinet safety ground. The board relies on the rack chassis for structural common-mode noise suppression.
• Ribbon Cable Management: When connecting peripheral signal lines, ensure that all ribbon cables are routed through designated cable management combs to prevent strain on the board-level connectors. Avoid crossing high-voltage AC lines with low-voltage I/O signals to minimize electromagnetic noise coupling.
