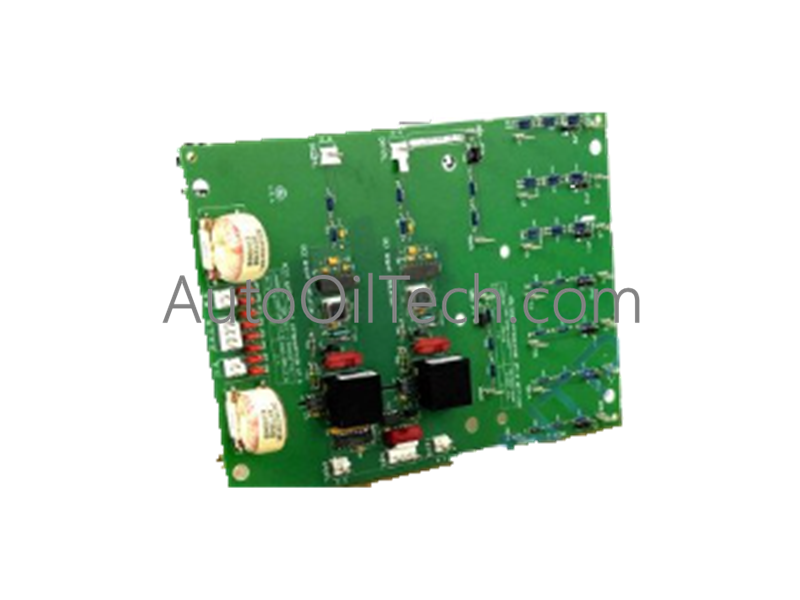

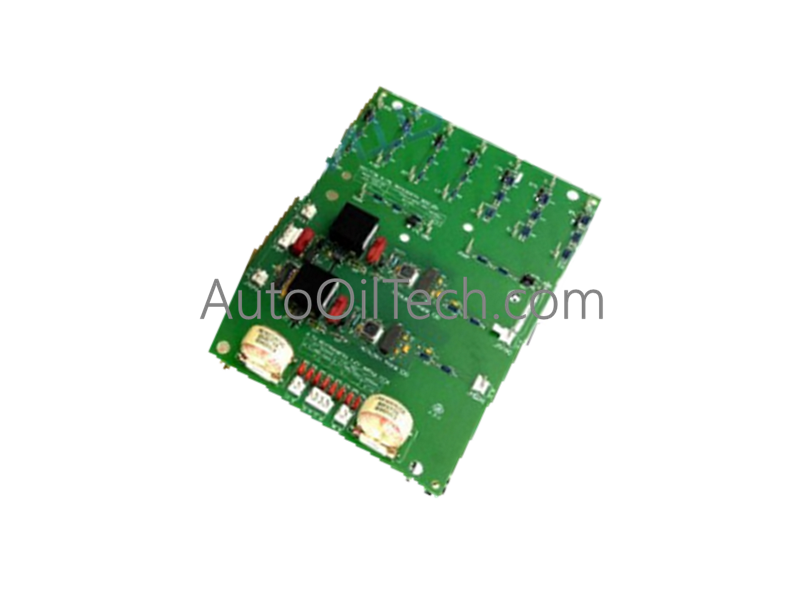

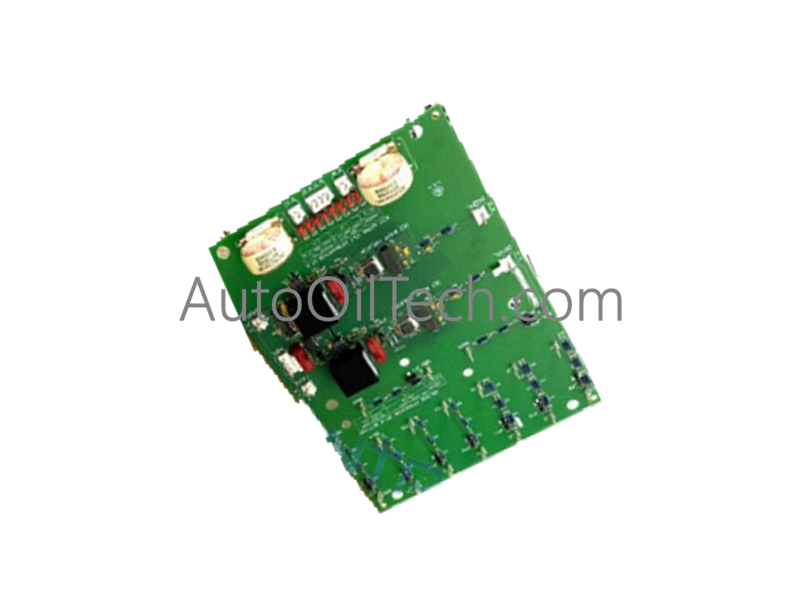

General Electric DS200SHVMG1AGE SCR High Voltage M-Frame Interface Board

The General Electric DS200SHVMG1AGE, also cataloged as the DS200SHVM Interface Board, operates as a dedicated hardware component for SCR bridge signal conditioning and interface management within Mark V drive platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control & Drive Characteristics

• Backplane bus communication velocity: The board manages the high-speed conversion of analog shunt signals (-500 to 500 mV) into differential frequency outputs (0 to 500 kHz) for real-time drive feedback.
• Profinet / EtherNet/IP deterministic networks: The interface supports deterministic signaling required for seamless communication between the SCR bridge and downstream control components (PCCA, DCFB, or SDCI modules).
• I/O density scaling: The PCB integrates voltage-controlled oscillator (VCO) circuits and current transformer (CT) attenuation networks to maintain high signal accuracy across variable drive load conditions.
• Firmware flash compatibility: The A-G-E revision matrix defines the specific jumper-configurable attenuation profiles (17 selectable jumpers) required for compatibility with Mark V controller firmware.

Frequently Asked Questions

Q: What is the primary function of the voltage-controlled oscillator (VCO) circuits?

A: The onboard VCO circuits convert shunt-derived millivolt inputs into proportional frequency outputs, which are then processed by the power supply and power connect cards to adjust output voltages.

Q: How is the incoming AC line current adjusted for processing?

A: The board utilizes a 10:1 current transformer (CT) attenuation network, with fine-tuning achieved through seventeen onboard selectable jumpers to match specific drive configurations.

Field Installation Guidelines

• Mounting: Secure the board in the M-frame drive chassis. Ensure that all connectors (CT1PL, CT3PL, DC1PL, DC2PL, 1CPL, SQPL, IA1PL, and IA2PL) are properly seated to maintain signal integrity across the interface.
• Grounding: Verify that the board is correctly bonded to the common system ground to minimize electrical noise in the frequency-based signal loops.
• Wiring: Reference manual GEI-100174 for detailed wiring diagrams. Ensure jumpers JP9-JP14, located at the top of the board, are configured according to the site-specific drive attenuation requirements. Maintain separation between sensitive shunt signal paths and high-current AC cabling to avoid electromagnetic interference.
