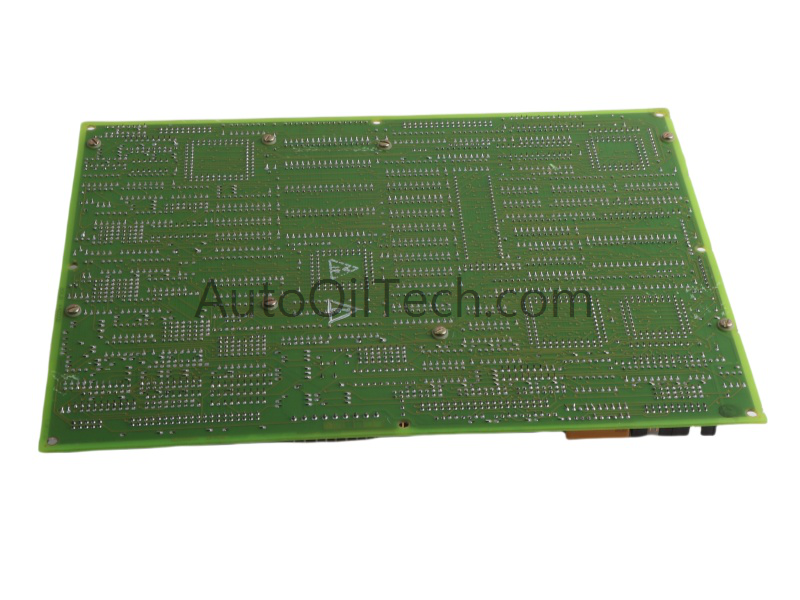

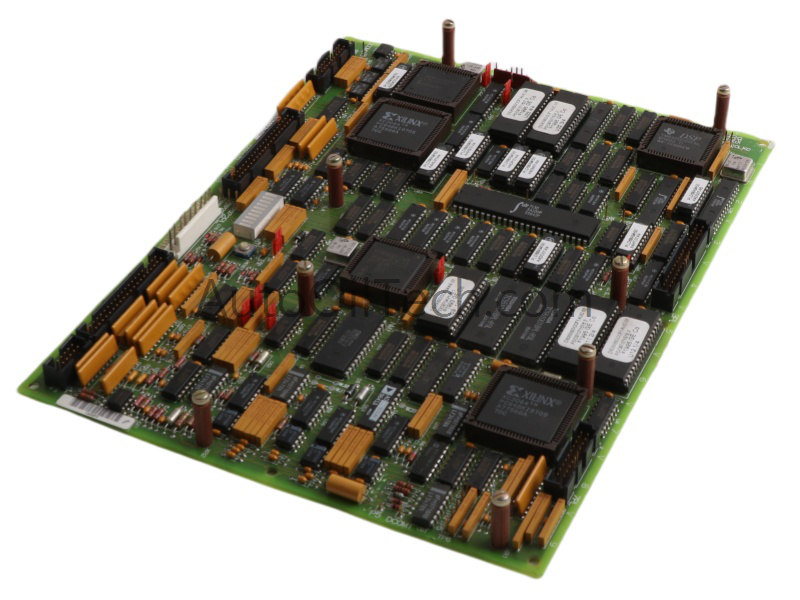

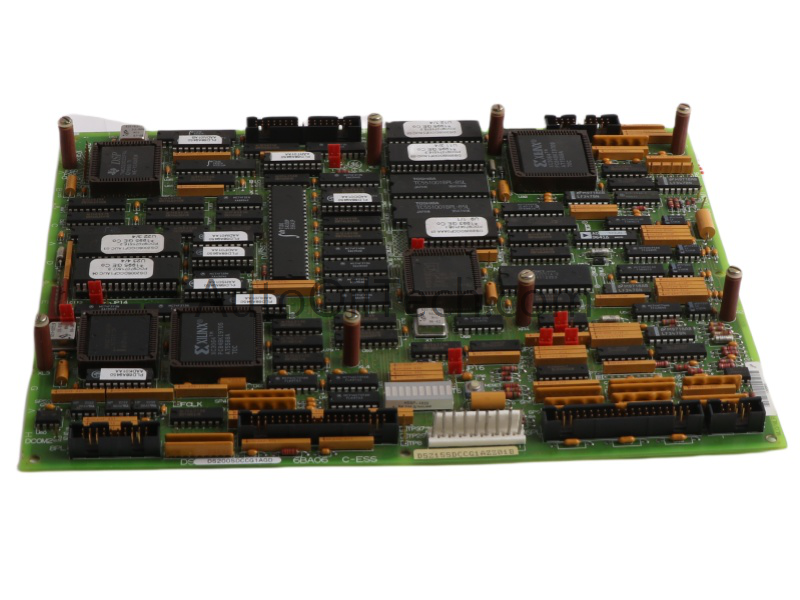

The General Electric DS200SDCCG1AGD board delivers core drive control for Mark V turbine systems. The device uses a 28 × 4.2 × 21.4 cm frame and weighs 0.54 kg.
Processing & Control Features
The DS200SDCCG1AGD integrates three microprocessors and shared RAM for coordinated turbine control. The device supports gas, steam, and wind turbine applications requiring synchronized processing.
Diagnostics & Indicators
The DS200SDCCG1AGD includes ten front‑panel LEDs that display fault codes and operating patterns. The device provides quick visual status checks during system maintenance.
Technical Specifications
Key Parameters
Specification
Value
Model
DS200SDCCG1AGD
Manufacturer
GE
Type
Drive CPU Board
Dimensions
28 × 4.2 × 21.4 cm
Weight
0.54 kg
Processors
Triple‑processor architecture
Indicators
10 diagnostic LEDs
Compatibility
DS215SLCC, 531X309SPC daughterboards
System
Mark V / DCS
Origin
USA
HS Code
8537101190
Condition
Brand New
Functional Highlights
The board integrates optional LAN and signal‑processing daughterboards for expanded capability.
The device supports software‑based configuration for consistent multi‑unit deployment.
The module enhances turbine reliability through coordinated processor control.
