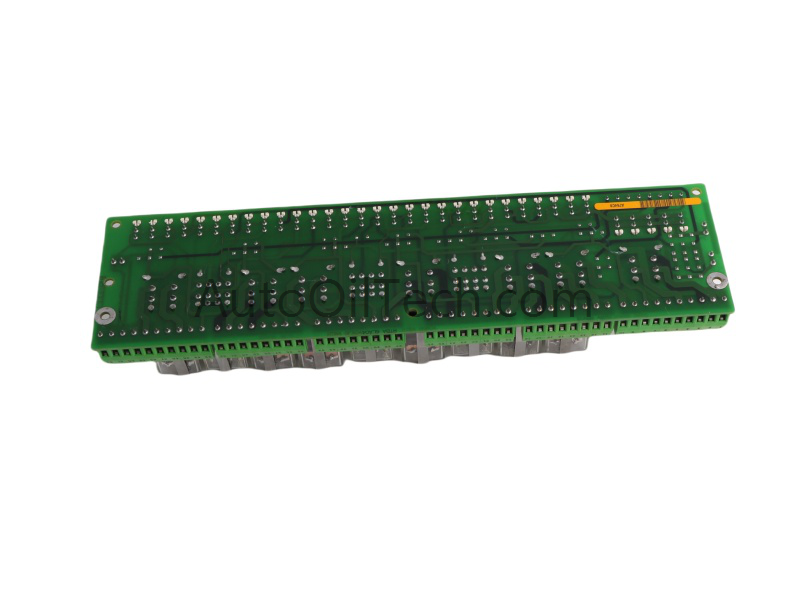

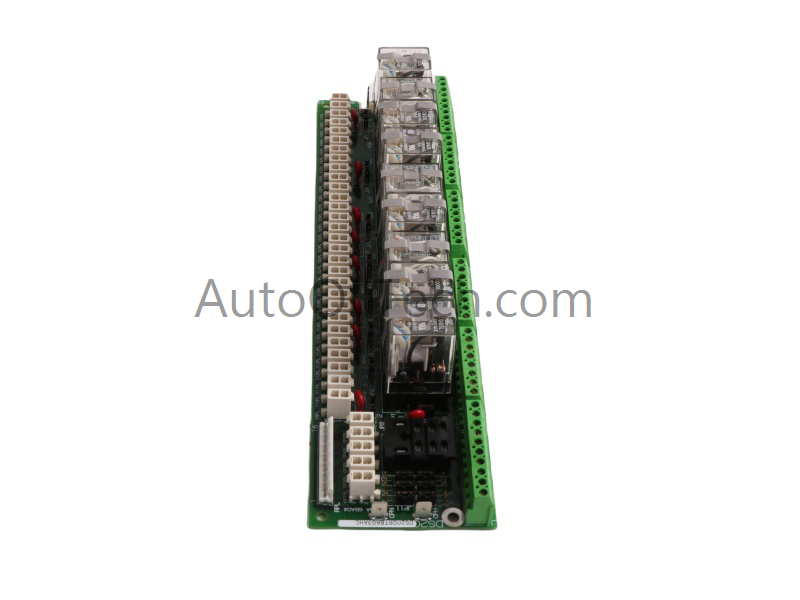

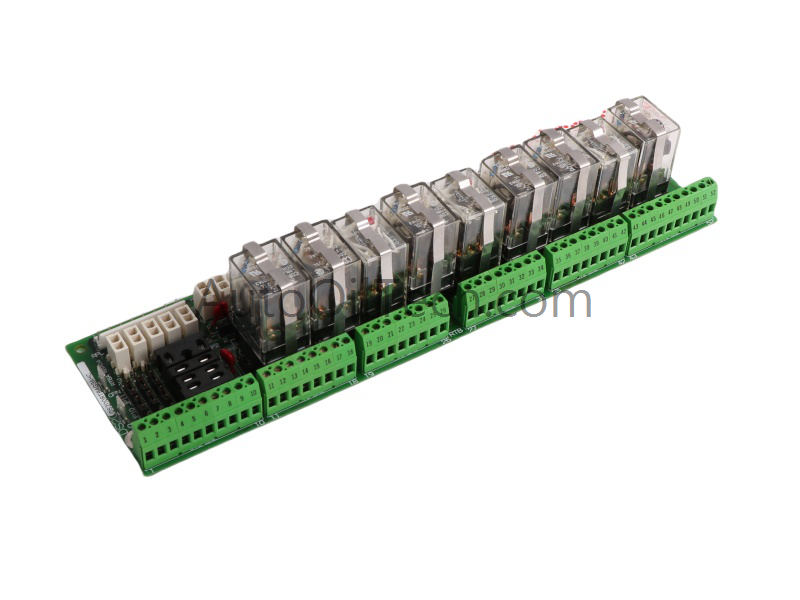

The DS200RTBAG3AHC Relay Terminal Card by General Electric is a legacy module designed for the Mark V turbine control system. It supports relay-driven I/O operations for wind, steam, and gas turbine automation under GE’s Speedtronic architecture.
Technical Specifications
Specification
Detail
Model Number
DS200RTBAG3AHC
Product Series
Multilin / Mark V
Manufacturer
General Electric (GE)
Module Type
Relay Terminal Card
System Compatibility
DCS / Speedtronic Mark V
Dimensions (cm)
28.6 × 7.5 × 5.5
Weight
0.62 kg
Communication Interface
Ethernet router
HS Code
8537101190
Product Origin
USA
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Hardware Features
The DS200RTBAG3AHC includes:
10 relays driven by pilot relays or remote signals
52 terminal points for I/O connectivity
Relay K20 form C contacts: normally open, common, and normally closed
Revision of original DS200RTBAG3A with enhanced reliability
Its compact layout supports efficient installation in drive cabinets and ensures robust signal routing across turbine control systems.
Application & Compatibility
The DS200RTBAG3AHC is ideal for legacy Mark V systems still in operation. It integrates with other DS200 modules such as DS200SDCCG1A and DS200LDCCH1A, supporting long-term maintenance, system upgrades, and spare part replacement in industrial automation environments.
