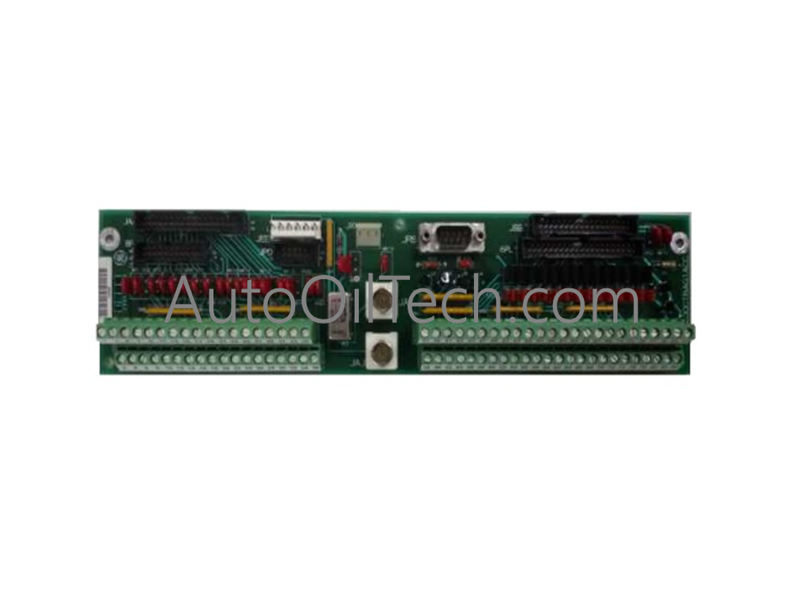

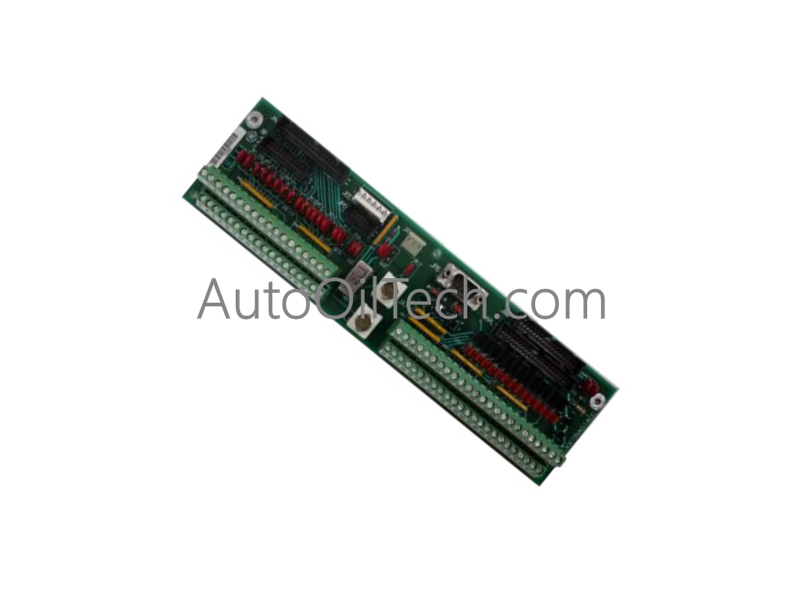

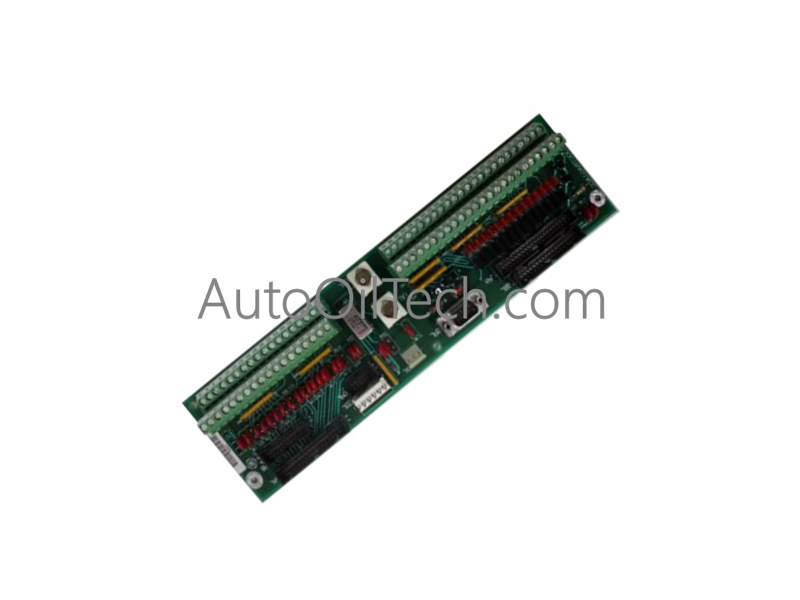

General Electric DS200DTBDG1A Terminal Relay Board

The General Electric DS200DTBDG1A, also cataloged as the DS200DTBDG1A Terminal Relay Board, operates as a dedicated hardware component for relay switching and signal termination within Speedtronic Mark V turbine control platforms.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks, I/O Density Scaling, and Firmware Flash Compatibility

The terminal relay board manages discrete control signals through robust backplane communication interfaces, supporting high-density I/O density scaling across turbine management loops. Deterministic network communication paths ensure minimal latency during relay actuation and status feedback transmission. Firmware flash compatibility allows integration with updated system control files and parameter configurations via the primary controller interface without requiring physical rewiring.

Frequently Asked Questions

Q: What is the primary function of the DS200DTBDG1A board within the Mark V system?

A: It functions as a terminal relay board designed for discrete signal switching and field wiring termination in Speedtronic turbine control cabinets.

Q: Can this terminal board be replaced while the control rack is energized?

A: Power feeds and field wiring circuits must be completely isolated and locked out prior to board replacement to prevent electrical shock or backplane damage.

Q: Does the board require any manual configuration jumpers?

A: Configuration depends on specific system application requirements; verify proper jumper settings against system drawings before installation.

Field Installation Guidelines

1. Ensure all system power supplies and external circuit feeds to the terminal rack are fully isolated and verified de-energized.
2. Label and disconnect field wiring safely from the existing terminal blocks before removing the retired board.
3. Secure the DS200DTBDG1A board into the designated mounting enclosure using appropriate mechanical fasteners.
4. Reconnect field wiring securely to the corresponding terminal points and verify signal continuity using diagnostic software prior to system startup.
