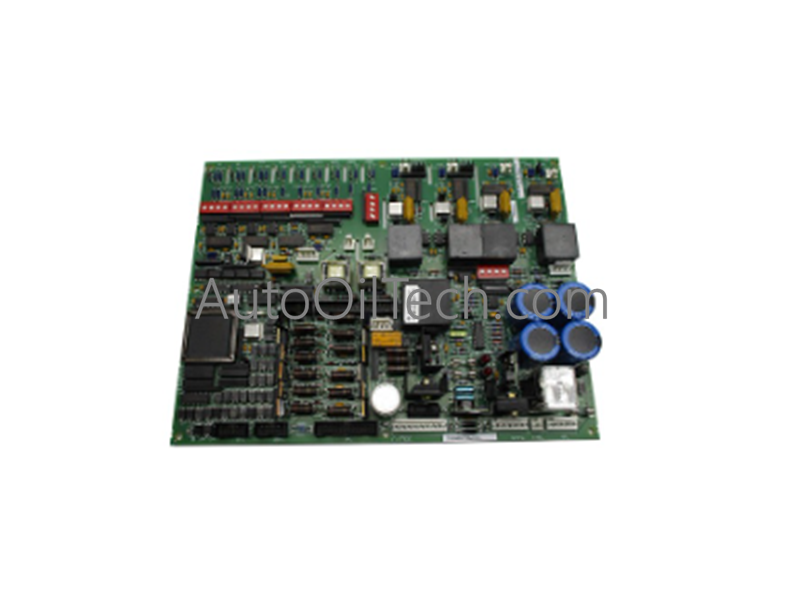

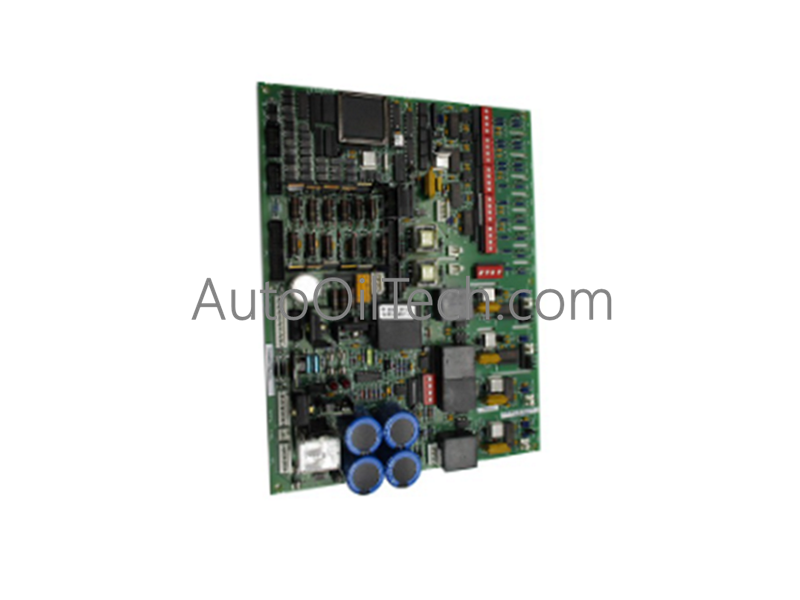

General Electric DS200DCFBG1B Mark V PC Board

In stock!
  • Part Number: DS200DCFBG1B
  • Brand: General Electric
  • Type: Communication Modules
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: Communication Modules , General Electric Mark V

Product Description

Configured for DC power feedback processing and multi-input/output management in Mark V turbine control networks, the General Electric DS200DCFBG1B (DS200DCFBG1B Drive Board) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200DCFBG1B
Brand General Electric
Origin Global Manufacturing Facility
Weight 2.01 lbs
Dimensions Standard Mark V rack form factor
Operating Temp Standard industrial cabinet range
Power Consumption Backplane-supplied low voltage logic power
Board Type DC Power Feedback PC Board with On-Board RAM (Revision 1B)
System Compatibility Mark V Turbine Control Platform

Profinet / EtherNet/IP Deterministic Networks, I/O Density Scaling, and Firmware Flash Compatibility

The DC power feedback board manages high-speed data exchanges across deterministic networks through optimized backplane communication paths, supporting rigorous I/O density scaling for complex turbine management tasks. Firmware flash compatibility ensures that operational control routines and on-board RAM parameters can be updated directly via system programming interfaces without hardware modification. Internal bus communication protocols maintain deterministic response times across multi-input and multi-output data channels.

Frequently Asked Questions

Q: Does the DS200DCFBG1B board include on-board memory for data handling?

A: Yes. The board features integrated on-board RAM to support local processing and data buffering within the turbine control architecture.

Q: Can this printed circuit board be inserted or removed while the Mark V rack is powered on?

A: Power must be isolated and locked out prior to handling or replacing the board to prevent backplane arcing and component damage.

Q: Is this module compatible with standard Mark V turbine control enclosures?

A: Yes. It is engineered specifically as a replacement interface card for the Mark V system platform.

Field Installation Guidelines

  1. Ensure all system power feeds to the Mark V control rack are isolated and verified de-energized before handling the board.
  2. Inspect the slot backplane connectors for alignment, cleanliness, and absence of debris prior to insertion.
  3. Slide the PC board smoothly into the designated guide rails, ensuring firm engagement with the internal backplane interface.
  4. Secure any front retention screws completely and verify system diagnostic status indicators via the programming terminal before energizing.
