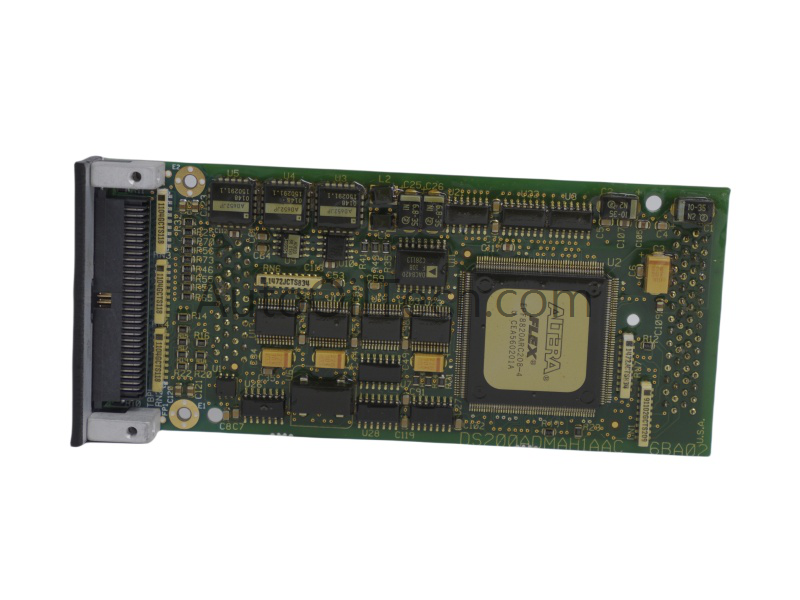

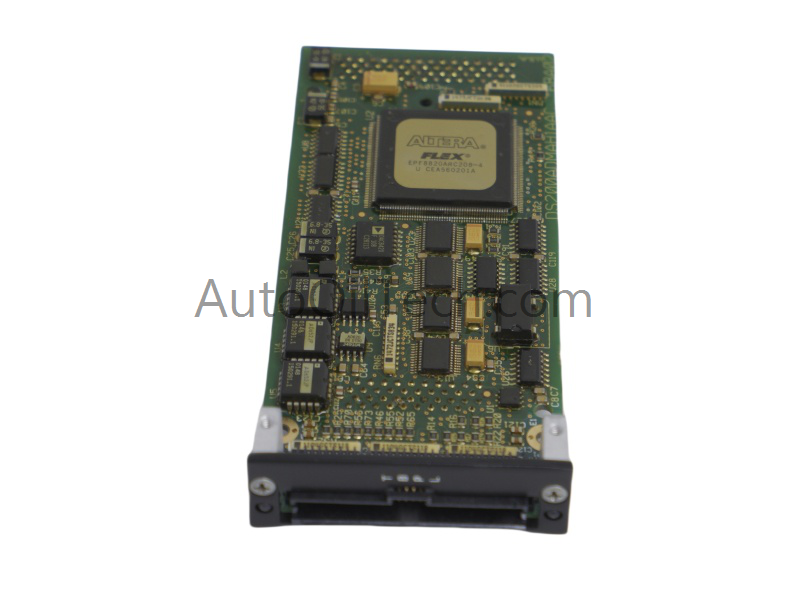

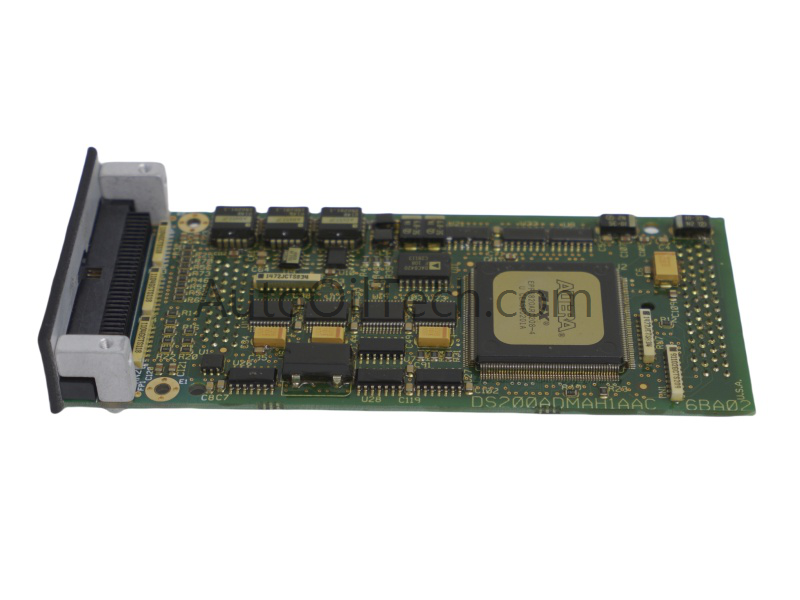

The General Electric DS200ADMAH1AAC is an advanced analog-to-digital module daughterboard (ADMA) designed for the Mark V Turbine Control System. Supporting wind, steam, and gas turbines, it ensures precise signal conversion and reliable system communication. With dimensions of 29.3x27x3.3cm and a weight of 0.84kg, this board integrates seamlessly into GE’s Speedtronic control architecture.
Technical Specifications
Parameter
Value
Model Number
DS200ADMAH1AAC
Module Type
Gate Pulse Amplifier Board
Manufacturer
GE
Product Range
EX2100 / Mark V
Condition
Brand New
Weight
0.84 kg
Dimensions
29.3 x 27 x 3.3 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
DCS
Status
Active
Communication Service
Ethernet router
Functional Description
The GE DS200ADMAH1AAC is a refined version of the DS200ADMAH1, incorporating three product revisions for enhanced performance. It integrates with the DS200DPSC board and features a metal faceplate with cutouts for easy mounting.
Applications and Compatibility
The DS200ADMAH1AAC is widely used in GE’s Mark V turbine control systems for excitation control and signal management in gas, steam, and wind turbines. Its robust design and diagnostic features make it a reliable solution for industrial automation and power generation environments.
