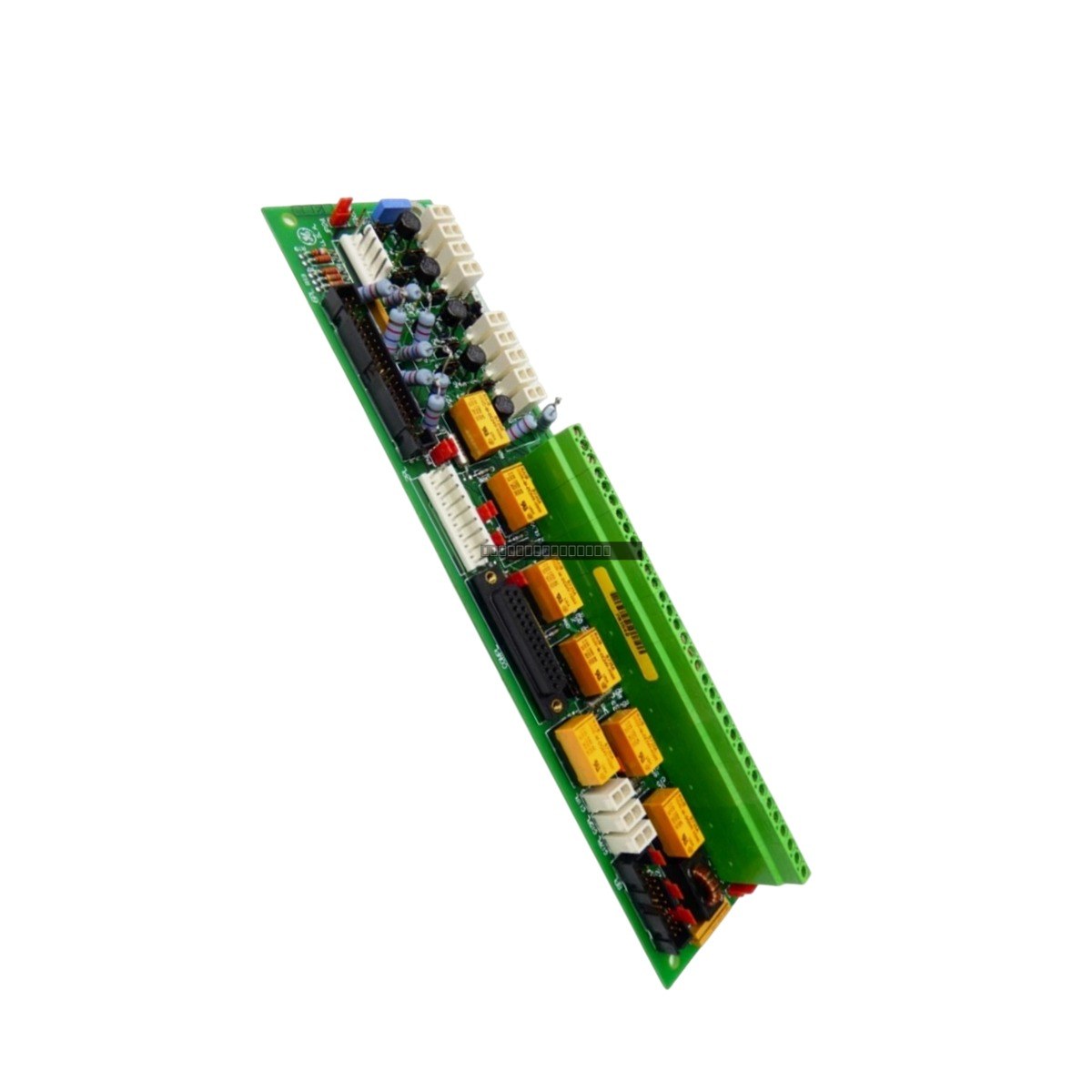

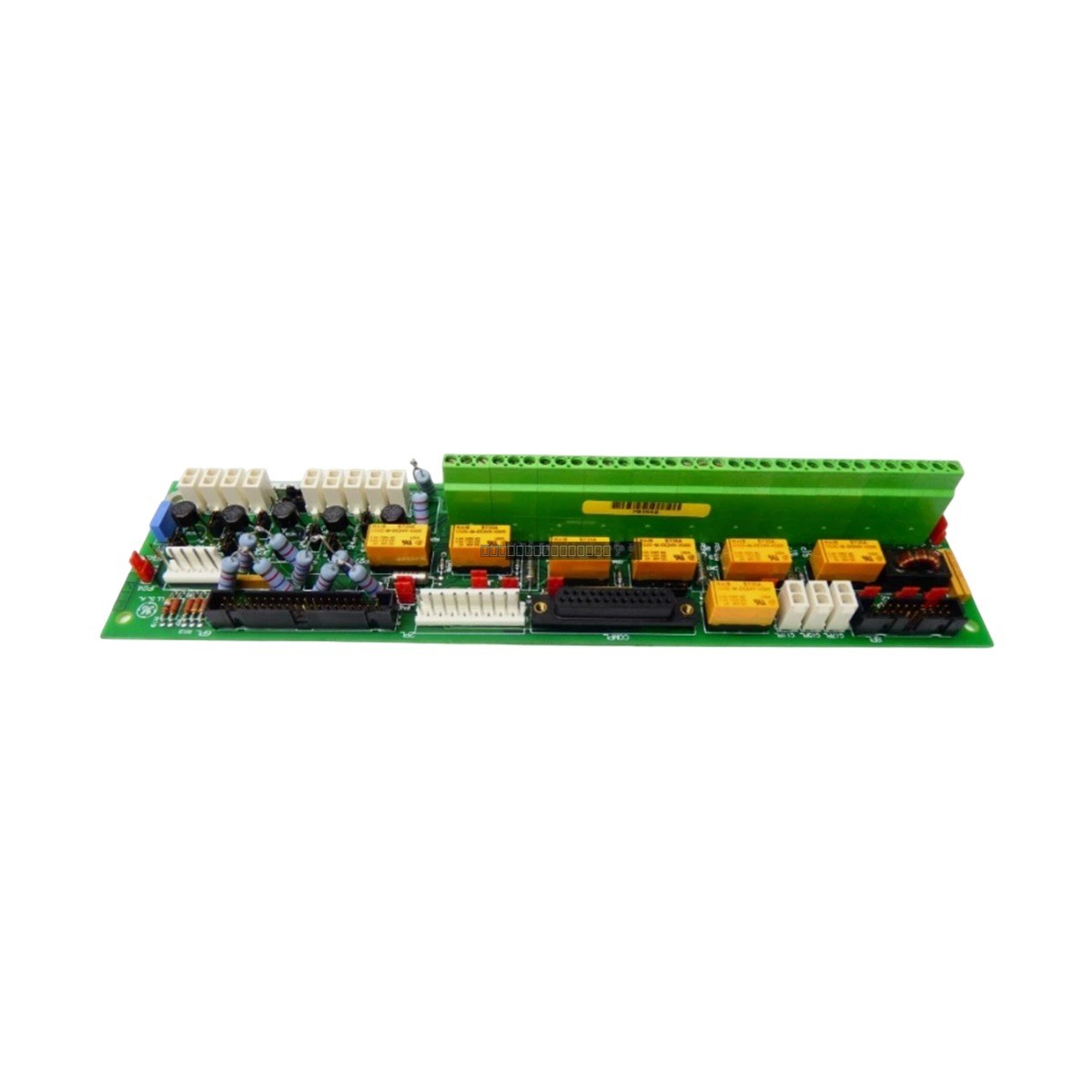

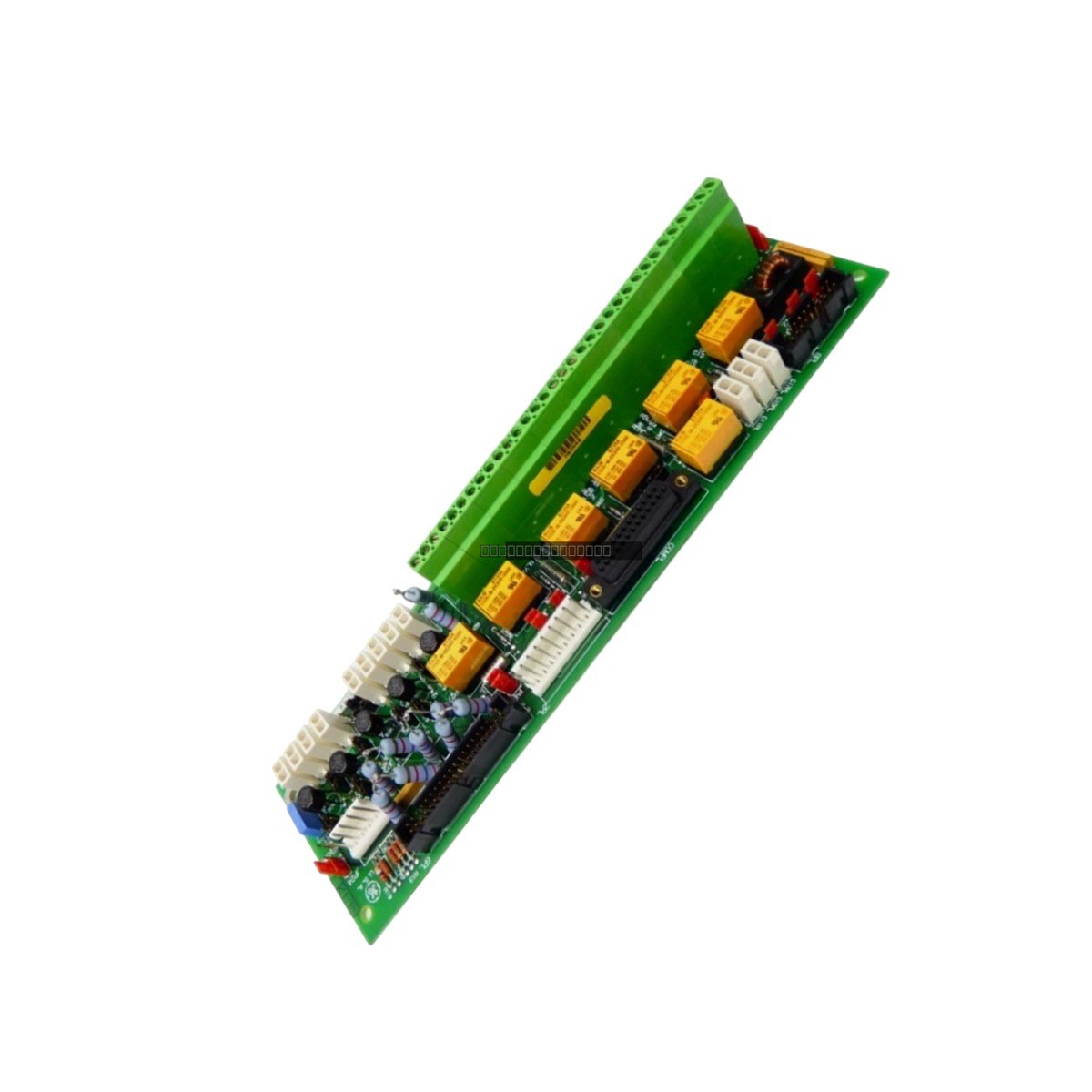

The GE Fanuc DS200STBAG1A serves as a critical terminal board within the Drive Control series, engineered to facilitate reliable signal routing and power distribution in heavy-duty industrial environments. This board acts as a central interface for motor control systems, ensuring precise connectivity for complex drive architectures. By maintaining signal integrity and providing stable voltage regulation, the module supports continuous operation in demanding applications such as large-scale pumping stations and steel manufacturing facilities.
Features
Integrated 60-point terminal architecture for extensive field wiring connectivity.
Four dedicated analog input channels for precise process monitoring.
Multi-stage power output capabilities, including regulated +5 VDC and +15 VDC rails for sensitive control logic.
Auxiliary power support featuring 124 VDC and 120 VAC outputs for peripheral equipment.
On-board hardware jumpers for flexible encoder load distribution between supply rails.
Integrated RS232C communication port for system interfacing.
Applications
This terminal board is designed for use in GE Drive Control systems, commonly found in industrial motor control centers, utility-scale pumping systems, and heavy metal processing equipment where stable signal processing and power distribution are essential for operational uptime.
Technical Specifications
Model
DS200STBAG1A
Terminal Points
60
Input Channels
8 (CI1 to CI8)
Analog Input Channels
4
+5 VDC Output
250 mA
+15 VDC Output
250 mA
124 VDC Output
500 mA
120 VAC Output
0.4 A
Communication
RS232C
Installation Guidelines
Ensure all power is disconnected from the drive system before attempting to install or remove the terminal board.
Follow standard ESD (Electrostatic Discharge) mitigation protocols when handling the module to prevent damage to integrated circuits.
Verify that all field wiring is securely terminated at the 60 designated points; ensure proper torque is applied to avoid loose connections.
When configuring encoder loads, confirm jumper settings match the voltage requirements of the connected peripheral devices.
Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI) and maintain data integrity.
FAQ
What is the primary function of the DS200STBAG1A? This board acts as a terminal interface for the GE Drive Control system, managing signal routing and providing regulated power to sensors and auxiliary equipment.
Can I adjust the power distribution for encoders on this board? Yes, the board includes integrated hardware jumpers that allow technicians to distribute encoder loads between the +5 VDC and +15 VDC supply rails.
