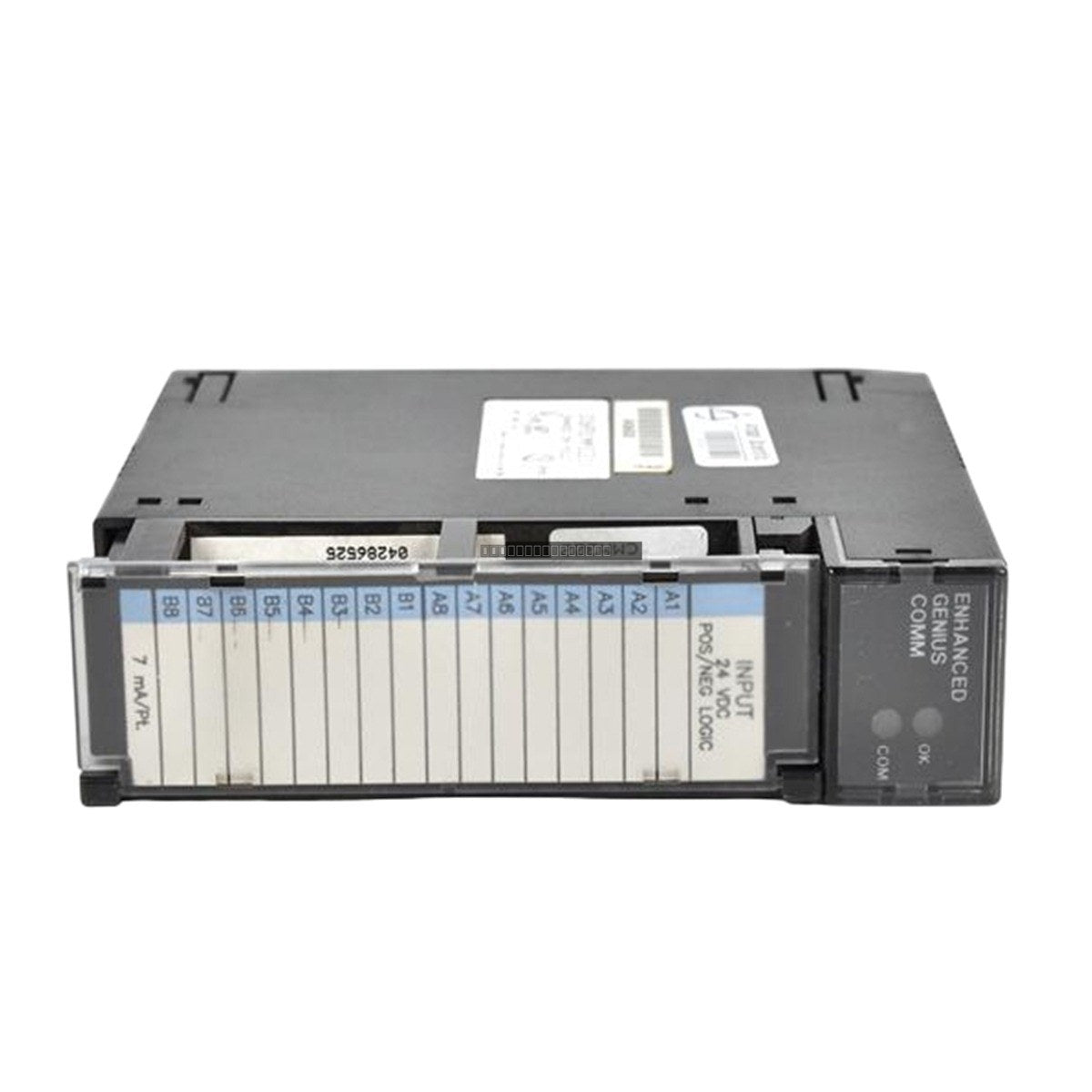

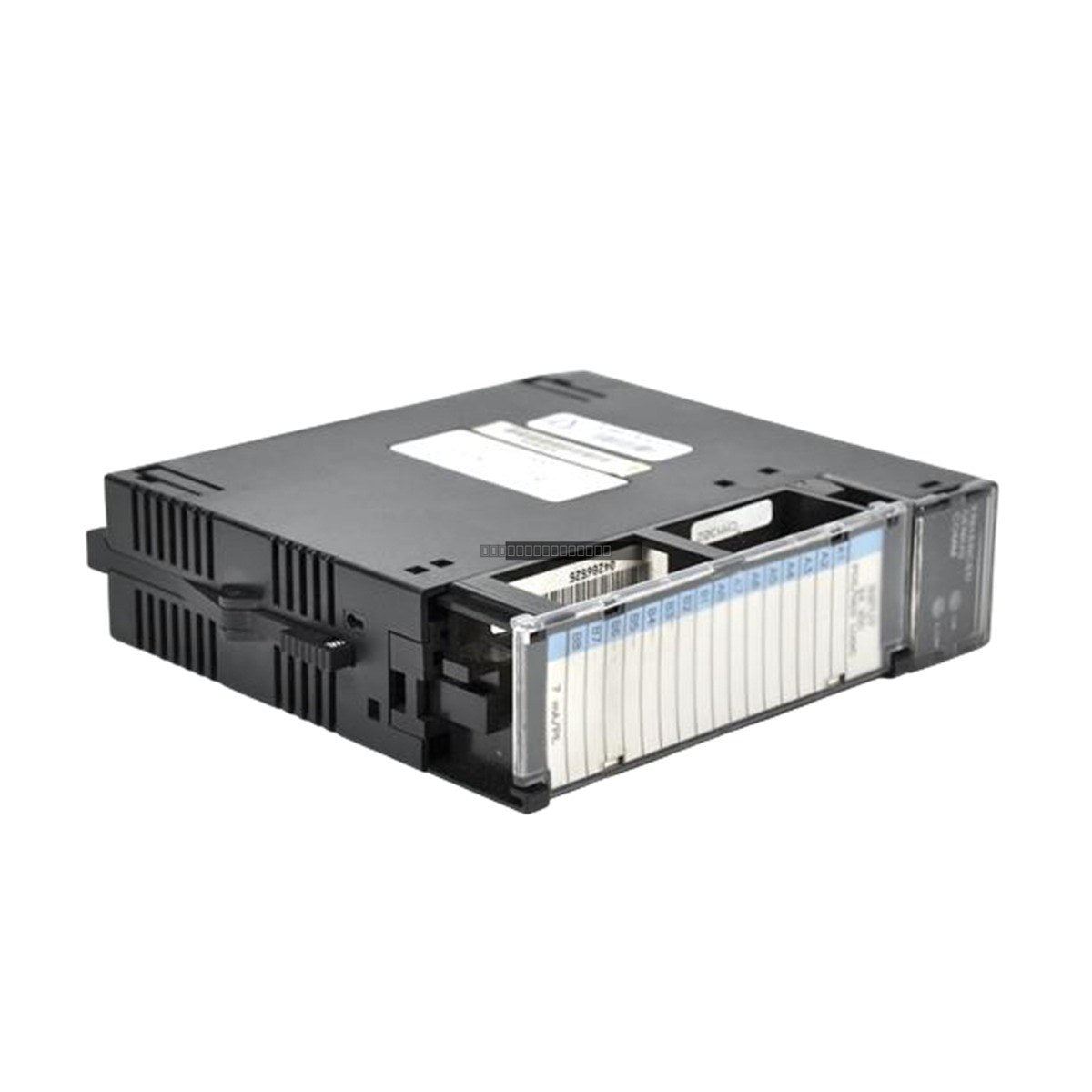

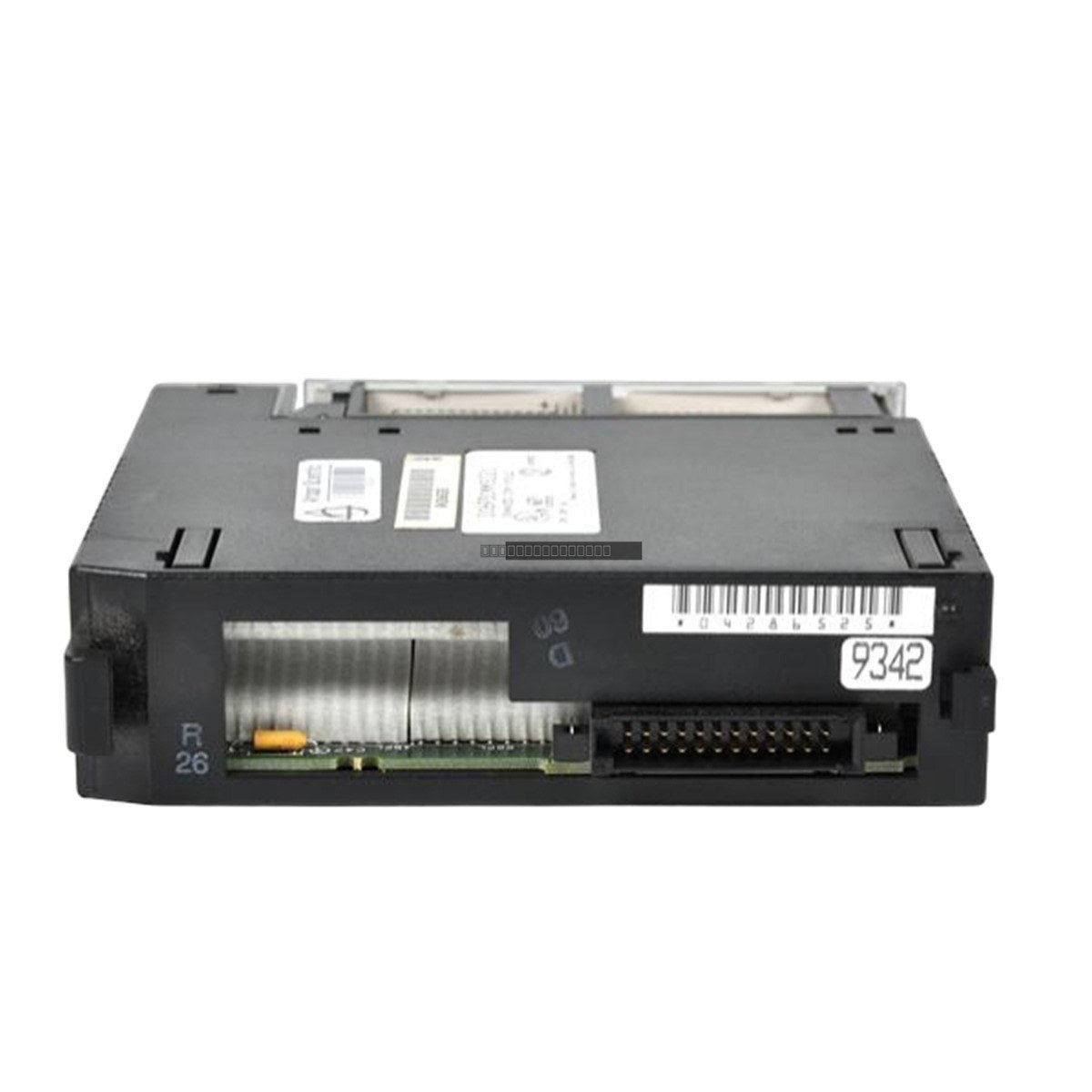

The General Electric IC693CMM302C is an Enhanced Genius Communications Module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module facilitates high-speed communication between the PLC and other devices on a Genius I/O network, providing robust data exchange capabilities for industrial automation environments.
Features
Supports up to 31 bus devices on the Genius network.
Provides 128 bytes of global data for both transmit and receive operations.
Occupies a single slot on the Series 90-30 baseplate.
Equipped with two diagnostic LED indicators: Module OK and COMM status.
Compatible with CPU, expansion, and remote baseplates within the 90-30 series.
Low power consumption with a backplane current draw of less than 300 mA at 5VDC.
Applications
This module is engineered for integration into GE Series 90-30 PLC systems requiring distributed I/O control, remote data acquisition, and inter-controller communication via the Genius protocol. It is suitable for manufacturing, process control, and material handling systems that utilize Genius bus architecture.
Technical Specifications
Product Model
IC693CMM302C
Product Type
Enhanced Genius Communications Module
Bus Devices Supported
31
Global Data Length
128 Bytes (Transmit/Receive)
Backplane Current Draw
< 300 mA at 5VDC
Slot Requirement
Single slot (any slot except CPU slot)
Status Indicators
Module OK, COMM LEDs
Installation Guidelines
Ensure the PLC power is disconnected before installing or removing the module from the baseplate.
The module can be installed in any available slot on the CPU, expansion, or remote baseplates, excluding the dedicated CPU slot.
Align the module carefully with the backplane connector and slide it into the guide rails until fully seated.
Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
Maintain proper ventilation within the control cabinet to prevent overheating during operation.
Handle the module using ESD-safe practices to prevent damage to internal electronic components.
FAQ
Can I use this module in the CPU slot? No, the IC693CMM302C is designed for standard I/O slots and is not compatible with the dedicated CPU slot on the Series 90-30 baseplate.
How many modules can be used in a single PLC system? The system supports up to 2 of these communication modules per PLC.
