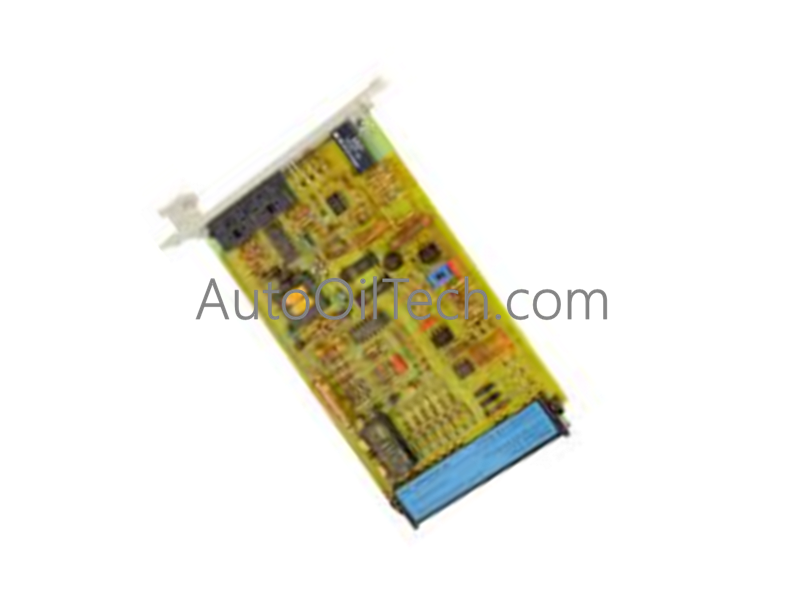

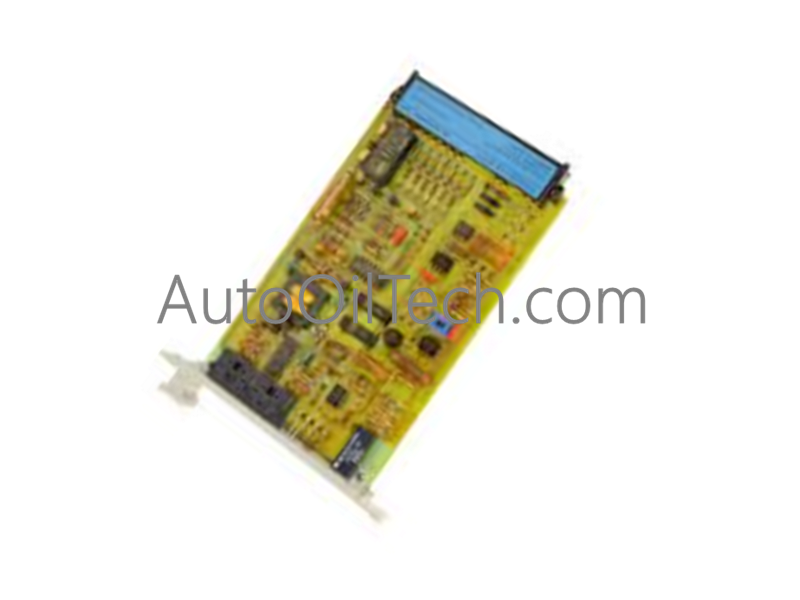

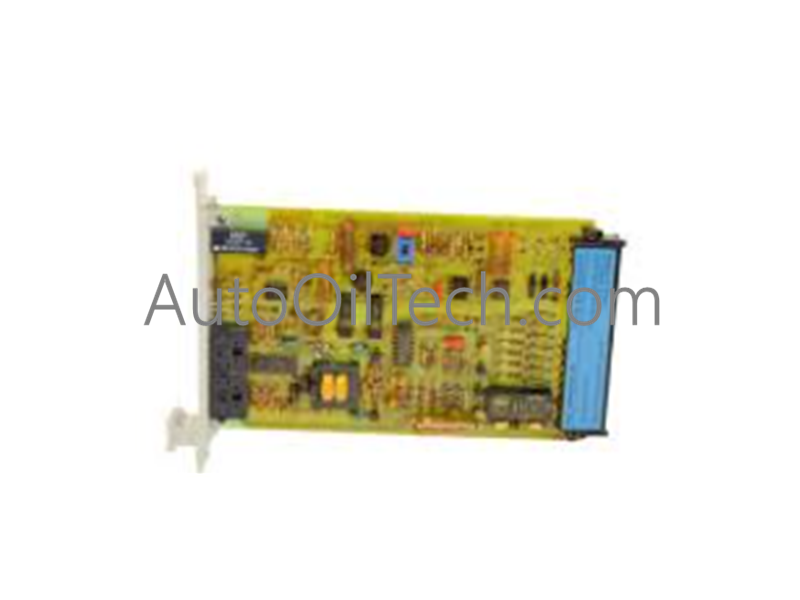

The General Electric 4176J86-G01, also cataloged as the 4176J86 Speed/Over-Speed Control Board, operates as a dedicated hardware component for speed signal processing and over-speed trip execution within GE Mark III gas turbine control systems.
Hardware Specifications
Parameter
Specification
Model
4176J86-G01
Brand
General Electric (GE)
Origin
USA
Weight
Standard Rack Card Assembly
Dimensions
Standard GE PCB Assembly Dimensions
Operating Temp
0 to +70 deg C
Power Consumption
5 VDC Onboard Logic Feed
Operating Voltage
5 VDC
Circuit Type
Speed / Over-Speed (SP/OV) Control PCB
System Compatibility
GE Mark III Turbine Control Systems
Backplane Bus Dynamics and Firmware Flash Compatibility
The General Electric 4176J86-G01 module interfaces directly with standard rack backplanes to perform low-latency speed calculations and trip monitoring. Essential performance characteristics include:
Backplane Bus Communication Velocity: Interfaces with internal bus architectures to execute high-speed signal updates without processing delay.
Deterministic Over-Speed Detection: Evaluates pulse frequency signals against defined hardware trip thresholds to trigger emergency turbine shutdown loops.
Firmware Flash Compatibility: Maintains full hardware execution alignment with native GE Mark III rack controller firmware revisions.
Frequently Asked Questions
Q: Can the 4176J86-G01 module be removed or inserted while backplane power is active?
A: No. Hot-swapping the speed control board can cause electrical transients and falsely trip connected turbine safety channels. De-energize system rack power prior to removal or insertion.
Q: What primary operating voltage is required for internal logic components on the board?
A: The board operates from a regulated 5 VDC power supply distributed via the backplane assembly.
Field Installation Guidelines
Ensure full electrical isolation of the card enclosure backplane before inserting or removing the printed circuit board assembly.
Wear a grounded ESD protective wrist strap during installation to prevent static discharge to onboard semiconductors.
Align the circuit board with enclosure card guides and press firmly to fully engage the edge connectors with the backplane receptacle.
Keep all speed sensor cabling shielded with shield terminations anchored to the designated panel earth terminal block.
