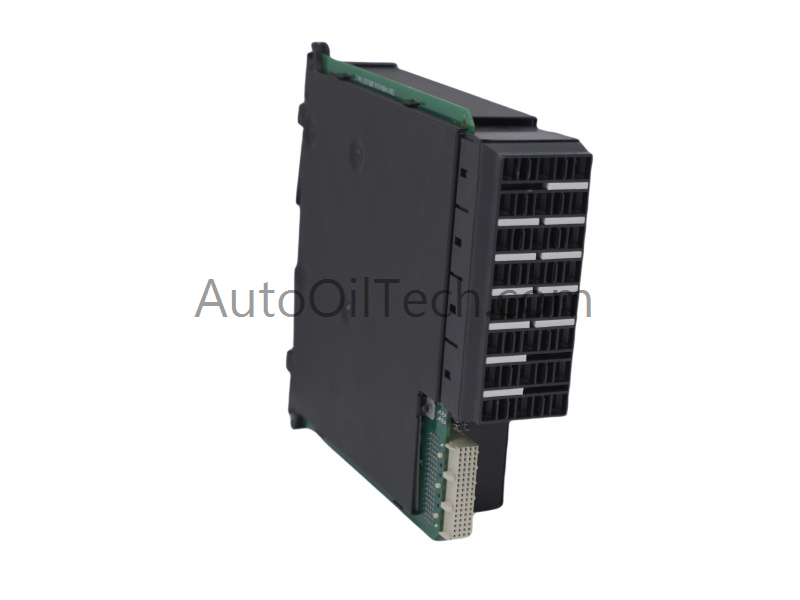

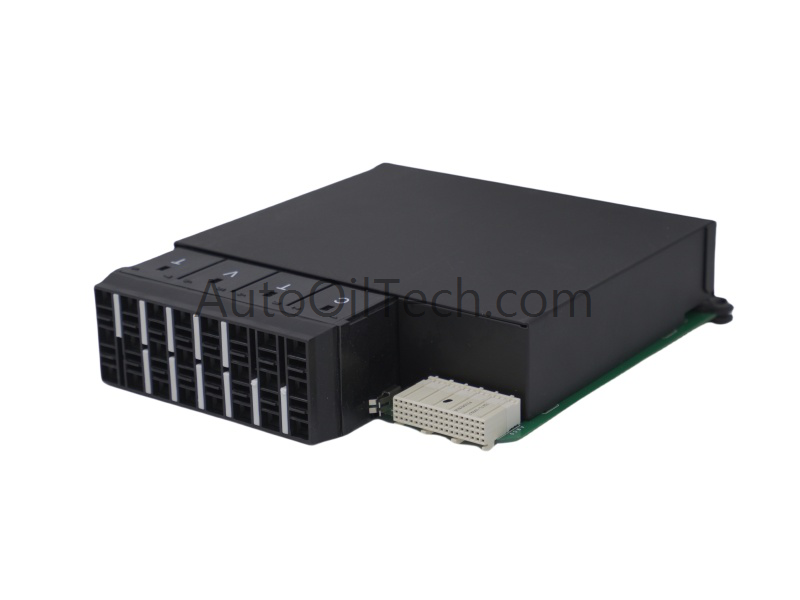

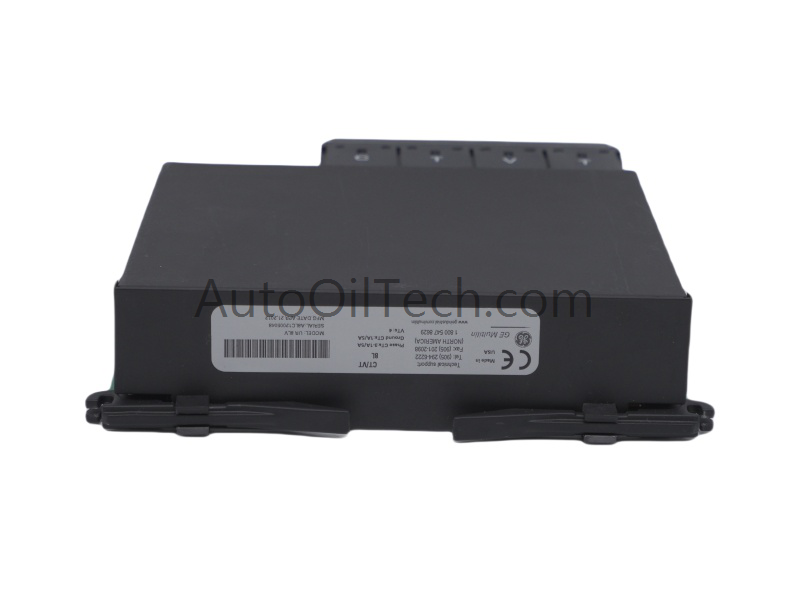

The General Electric UR8LV is a CT/VT module within the Multilin series, designed for PLC-based industrial automation. It provides reliable current and voltage transformer inputs for universal relays, ensuring accurate monitoring and protection of AC power systems. With dimensions of 6x19.5x17.2cm and a weight of 0.84kg, the module integrates efficiently into compact control environments.
Technical Specifications
Parameter
Value
Model Number
UR8LV
Module Type
Multilin CT/VT Module
Manufacturer
GE
Product Range
Multilin
Condition
Brand New
Weight
0.84 kg
Dimensions
6 x 19.5 x 17.2 cm
HS Code
8537101190
Minimum Order Quantity
1
Origin
USA
System
PLC
Status
Discontinued (Dec 31, 2018)
Communication Service
Ethernet router
Functional Description
The GE UR8LV CT/VT module equips relays with 3-1A/5A phase current transformers, a 1A/5A ground current transformer, and four-terminal voltage transformers. These inputs enable precise monitoring of AC power lines, ensuring stable and safe operation. Enhanced diagnostic algorithms verify analog signal integrity, allowing early detection of issues and improving system reliability. Installation supports size 12 AWG wiring, with compatibility up to size 10 AWG, simplifying integration into existing relay systems.
Applications and Compatibility
The UR8LV integrates into GE Multilin universal relays, supporting upgrades, replacements, and expansions of industrial control systems. It is widely used in power generation, transmission, and distribution environments requiring dependable CT/VT inputs. Although discontinued in 2018, the UR8LV remains a valuable solution for legacy systems, offering robust monitoring and diagnostic capabilities.
