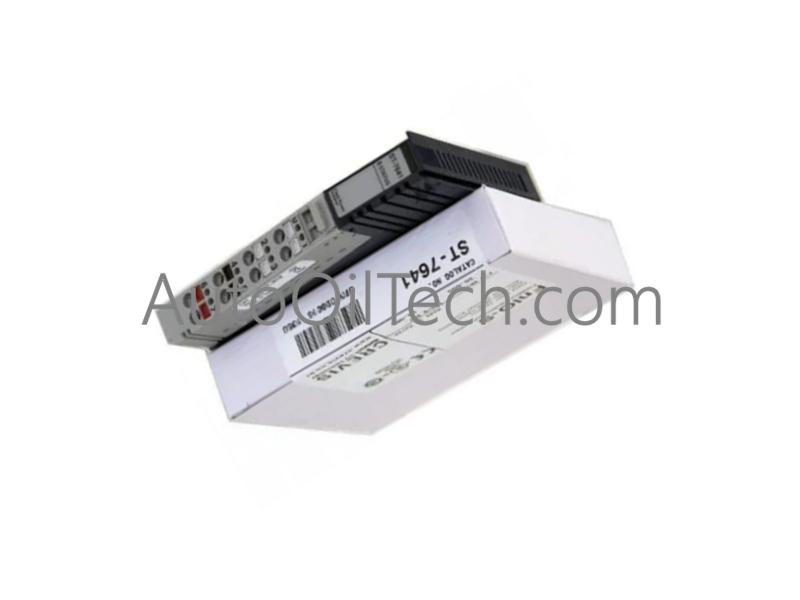

The GE ST-7641, also cataloged as the ST-7641 Isolated Field Distribution Module, operates as a dedicated hardware component for power routing and signal channel isolation within RSTi PacSystem platforms.
Hardware Specifications
Parameter
Specification
Model
ST-7641
Brand
GE
Origin
USA
Weight
0.91 kg (2.00 lbs)
Dimensions
Standard DIN-rail Form Factor
Operating Temp
0 deg C to 60 deg C
Power Consumption
5 VDC, 24 VDC, 48 VDC, 110 VAC, 220 VAC
Current Rating
10 A maximum
Compatible Module
ST-1804 AC Input Module
Mounting Orientation
Horizontal or Vertical DIN-rail
Diagnostic Indicator
1 Green/Red Module Status LED
Backplane Bus Communication Velocity & I/O Density
The module integrates directly into standard DIN-rail assemblies to provide channel isolation and field power redistribution across high-density I/O clusters. Built for rapid backplane signal pass-through, the interface minimizes system latency during high-speed discrete data exchange. Firmware flash compatibility ensures seamless backplane communication velocity with connected CPU modules, while high I/O density scaling allows distribution across mixed AC and DC voltage networks without signal degradation or cross-channel thermal stress.
Frequently Asked Questions
Q: What is the maximum continuous current load supported by the field distribution bus?
A: The module supports a maximum aggregate current rating of 10 A across its field distribution terminals.
Q: Can the module be mounted vertically inside a high-density enclosure?
A: Yes, the module supports both horizontal and vertical mounting orientations on standard DIN rails without derating its 0 deg C to 60 deg C operating temperature limit.
Q: How does the module indicate internal fault conditions?
A: The front panel includes a dual-color status LED that illuminates green during normal isolated power distribution and switches to red upon detecting a module or field circuit fault.
Field Installation Guidelines
Snap the module securely onto a standard 35 mm DIN rail, verifying that the rear grounding clip achieves full mechanical contact with the rail surface.
Ensure all field power sources (5 VDC to 220 VAC) are completely de-energized before connecting field wiring to the terminal block.
Route incoming field voltage lines away from sensitive low-voltage backplane communication cables to minimize electromagnetic coupling and signal noise.
Maintain a single-point earth ground connection for the DIN rail assembly to ensure proper surge voltage suppression and isolated field return paths.
