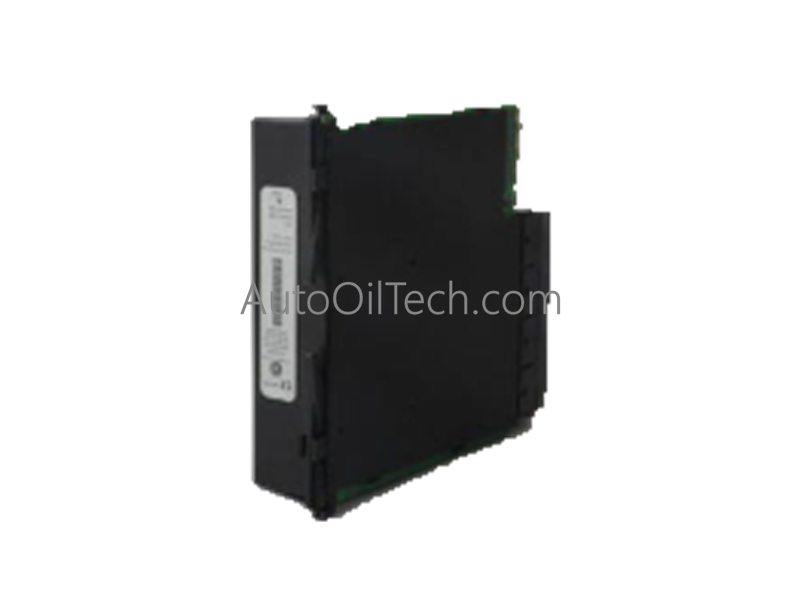

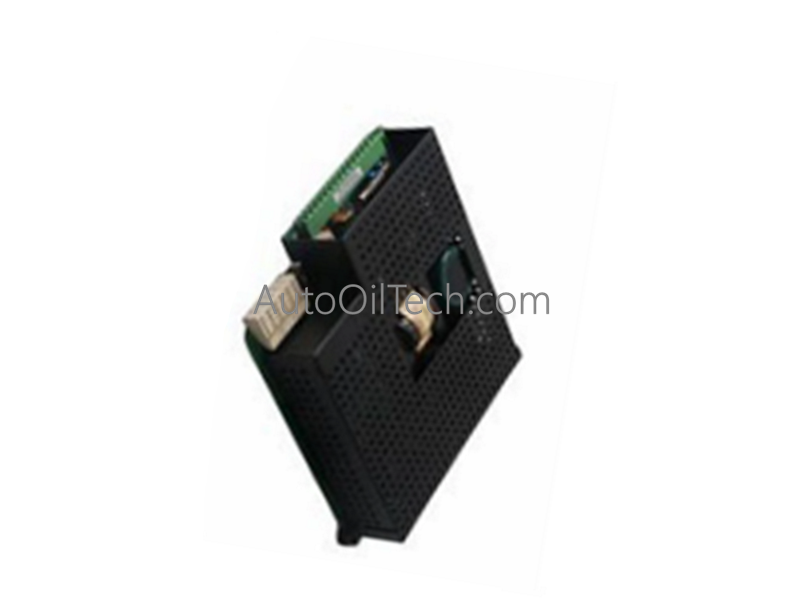

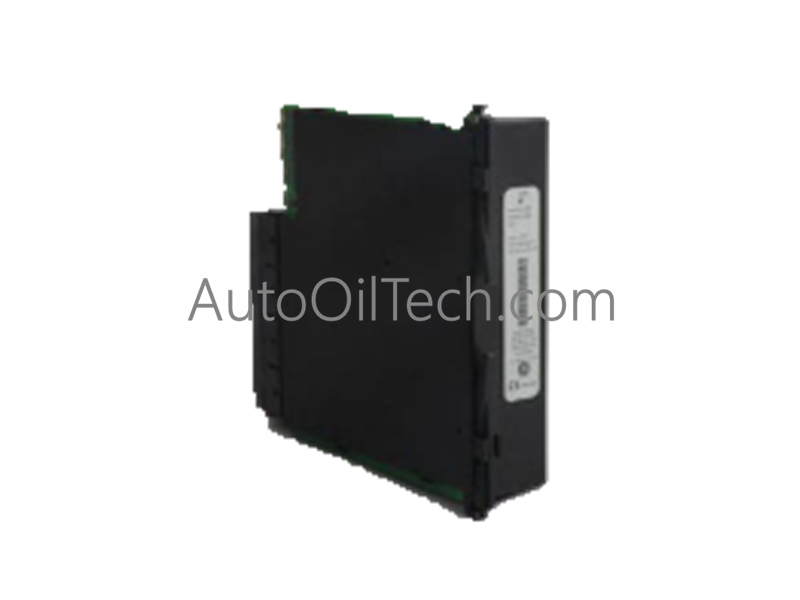

GE O2X1IS Intrinsically Safe Oxygen Transmitter

The GE O2X1IS, also cataloged as the O2X1IS Intrinsically Safe Oxygen Transmitter, operates as a dedicated hardware component for continuous electrochemical O₂ sensing and signal transmission within hazardous industrial environments.

Hardware Specifications

Industrial Network and Protection Characteristics

• Intrinsic safety (Ex i) barriers: The O2X1IS is FM/CSA certified for deployment in hazardous areas. It requires appropriately rated Zener or galvanic isolation barriers to limit electrical energy at the transmitter terminals, ensuring that even under fault conditions, the energy remains below the ignition threshold for explosive atmospheres.
• DIN-rail mounting stability: Designed for industrial cabinet or wall-mount configurations, the transmitter chassis provides robust mechanical stability, minimizing vibration-induced signal noise that could compromise the accuracy of the electrochemical fuel cell.
• Surge voltage protection limits: The internal circuitry includes protection against transient voltage spikes on the 4-20 mA loop, safeguarding the sensitive signal conditioning electronics from inductive surges common in large-scale industrial motor and distribution networks.
• Protocol conversion latencies: The transmitter provides a linearized 4-20 mA output, ensuring that the processed oxygen concentration data is delivered to the controller with minimal latency, permitting high-speed process interlocking in safety-critical applications.

Frequently Asked Questions

Q: Does the electrochemical fuel cell require periodic replacement?

A: Yes, the fuel cell is a consumable component. Service life is dependent on the ambient oxygen concentration and process conditions. The unit is designed for low maintenance, but routine calibration and visual inspection of the cell are required to ensure measurement accuracy over time.

Q: Can the transmitter be configured for different measurement ranges in the field?

A: Yes, the O2X1IS features user-programmable ranges covering four ppm levels (10 to 10,000 ppm) and three percentage levels (1% to 25% O₂). Configuration is executed via the onboard interface to match the specific process application requirements.

Field Installation Guidelines

• Mounting: Install the transmitter in an area with minimal vibration to ensure long-term stability of the electrochemical sensing element. The compact design allows for integration in space-constrained cabinets or remote hazardous-area enclosures.
• Grounding: Ensure the transmitter enclosure is properly bonded to the system earth to maintain the efficacy of electromagnetic interference (EMI) shielding. Follow hazardous area electrical installation codes (e.g., NEC or IECEx) to maintain intrinsic safety compliance.
• Wiring: For hazardous area installations, the loop wiring distance is limited to 335 m (1300 ft) using 22 AWG conductors. Utilize shielded, twisted-pair cabling to protect the 4-20 mA signal from inductive noise ingress, and ensure that cable entry points are sealed with certified glands for the specific area classification.
