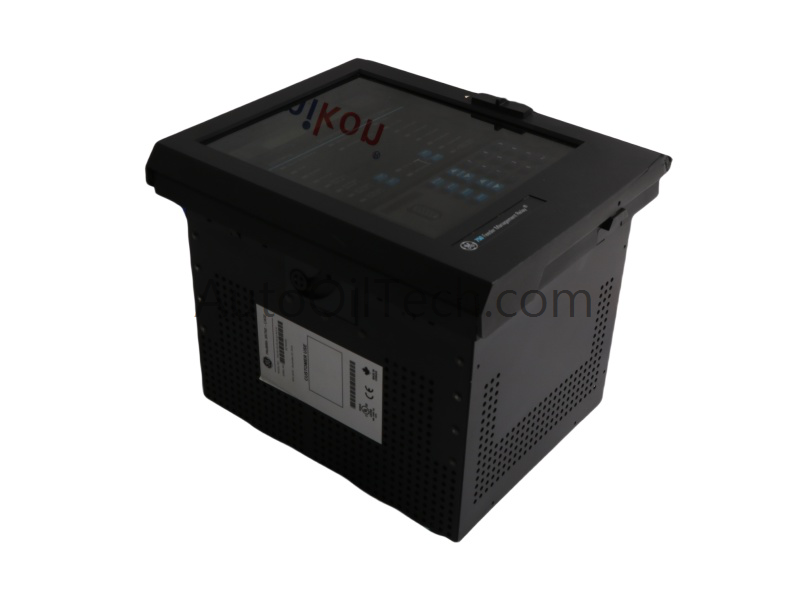

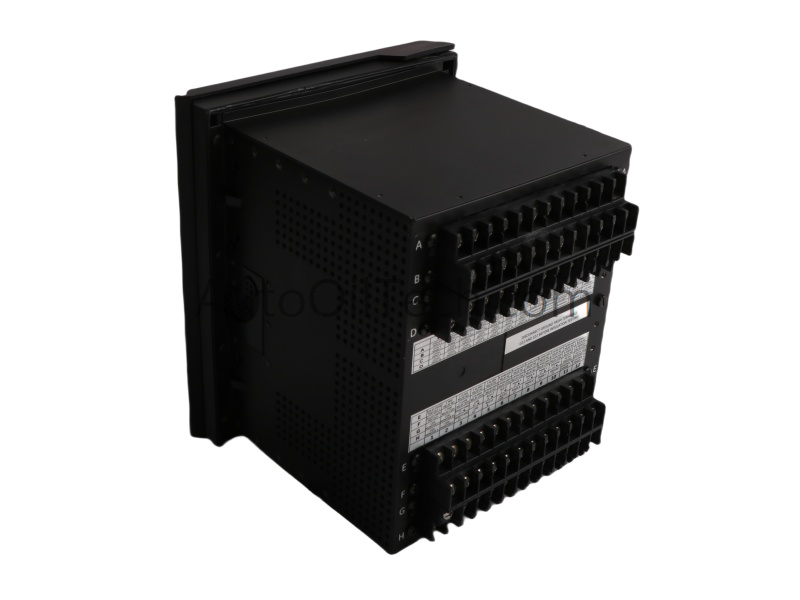

The GE 750-P5-G5-S5-HI-A1-R-E-H Feeder Management Relay is part of theMultilin 750/760 series, engineered to provide advanced protection and control for electrical distribution feeders. Its rugged design, versatile power supply, and comprehensive communication options make it a reliable solution for modern power system management.
Technical Specifications
Parameter
Value
Model Number
750-P5-G5-S5-HI-A1-R-E-H
Module Type
Feeder Management Relay
Manufacturer
GE
Product Range
Multilin 750/760
Condition
Brand New
Dimensions
20.8 × 22 × 24.6 cm
Weight
7.6 kg
HS Code
8537101190
System
DCS
Origin
USA
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Communication Service
Ethernet router
Phase Current Inputs
5 A
Zero‑Sequence Inputs
5 A
Analog Outputs
Eight 4–20 mA
Power Supply Range
88–300 VDC / 70–265 VAC, 48–62 Hz
Communication Ports
RS232, RS422, RS485
Protocols Supported
Modbus RTU, TCP/IP, DNP 3.0
Functional Description
The 750-P5-G5-S5-HI-A1-R-E-H relay enhances feeder protection with 5 A phase current inputs and 5 A zero‑sequence inputs, ensuring precise monitoring. It provides eight 4–20 mA analog outputs for seamless integration with monitoring systems.
Operating across a wide power supply range (88–300 VDC or 70–265 VAC), the relay adapts to diverse environments. Its enhanced display and chemical‑resistant build ensure durability in harsh industrial conditions.
Applications and Compatibility
The GE 750-P5-G5-S5-HI-A1-R-E-H is ideal for electrical distribution feeders in power generation, industrial plants, and utility networks. Its advanced protection features, versatile communication, and rugged design make it a dependable solution for maintaining system stability and fault prevention.
