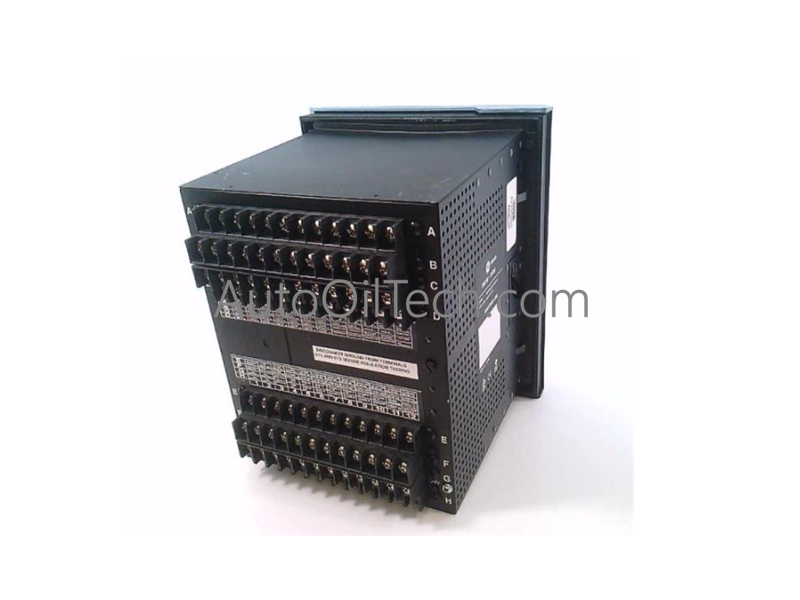

GE Multilin 489 Generator Protection System

The GE Multilin 489, also cataloged as the 489 Generator Protection System, operates as a dedicated hardware component for synchronized protection, monitoring, and control within small to medium-sized generator architectures. Configured for high-speed fault detection in industrial and utility environments, the GE Multilin 489 (489 Generator Protection System) provides direct electrical execution of protective relaying and real-time generator state management.

Hardware Specifications

Industrial Control and Generator Protection Metrics

• Thermal and Differential Monitoring: The system integrates stator differential protection and 12-channel RTD-based thermal monitoring. This architecture provides comprehensive protection against insulation degradation and stator overheating, which are necessary to prevent catastrophic generator failures.
• Vibration and Mechanical Integrity: The 489 supports vibration monitoring via dedicated analog inputs. This capability allows for predictive maintenance by identifying mechanical deviations in rotor dynamics or bearing health before they manifest as critical faults, effectively reducing unscheduled outages.
• Deterministic Event Recording: The relay features high-speed oscillography and event recording with an update frequency of ~50 ms. This high-resolution data capture is critical for post-fault analysis, allowing utility operators to correlate mechanical or electrical anomalies with specific grid disturbances or excitation events.

Frequently Asked Questions

Q: Does the withdrawable design allow for hot-swapping the unit?

A: While the 489 features a draw-out construction, "hot-swapping" while the generator is in service is not advised. Always isolate the CT and VT circuits using appropriate shorting blocks before withdrawing the relay to prevent high-voltage buildup or secondary damage to the measurement transformers.

Q: How is the 489 configured for integration with SCADA systems?

A: The relay supports multiple protocols including Modbus and DNP3. Configuration is performed via the GE EnerVista software suite, which maps the internal register set to the SCADA communication parameters. Ensure that the RS485 or Ethernet link impedance is correctly terminated to prevent packet loss.

Field Installation Guidelines

• CT/VT Circuit Integrity: Before installation, verify the CT secondary ratings (1 A or 5 A) to match the system's current transformers. Ensure VT ratios are accurately programmed to reflect the line-to-line voltage; incorrect ratio configuration will result in significant metering and protection errors.
• Environmental Sealing: The unit features conformal coating for harsh environments. Ensure the relay case is properly seated in the panel cutout and that the front panel seal is intact to maintain the IP-rated protection against moisture and conductive dust ingress.
• Grounding: Bond the relay case to the cabinet’s protective earth (PE) bus using the shortest possible conductor. A robust ground path is necessary for the internal transient voltage surge suppression (TVSS) to effectively divert lightning and grid-level surges.
