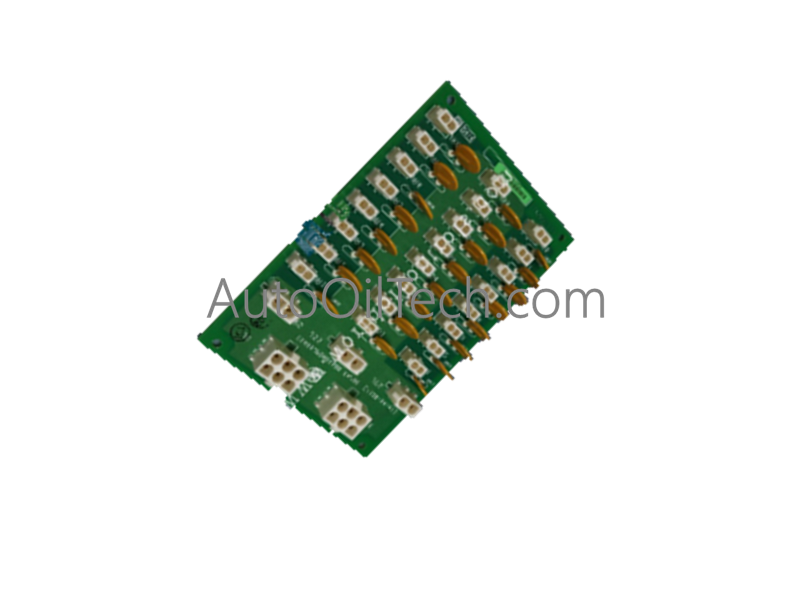

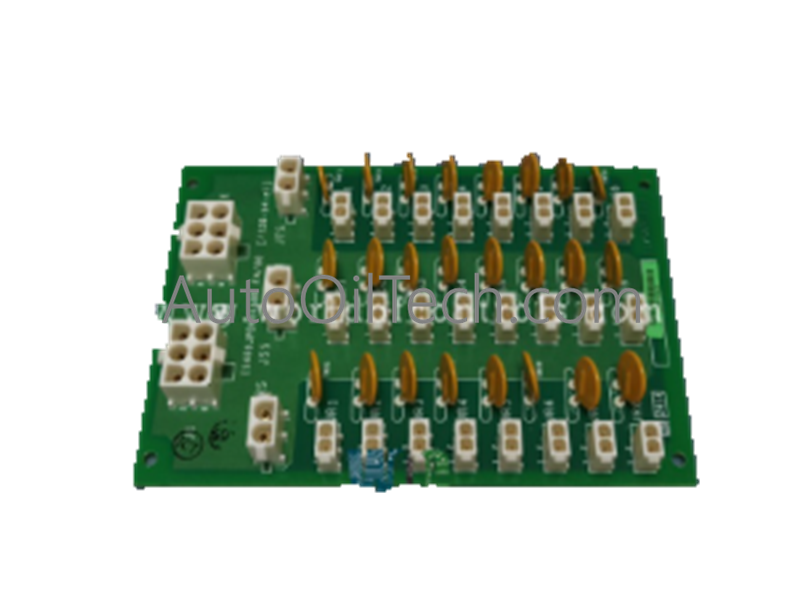

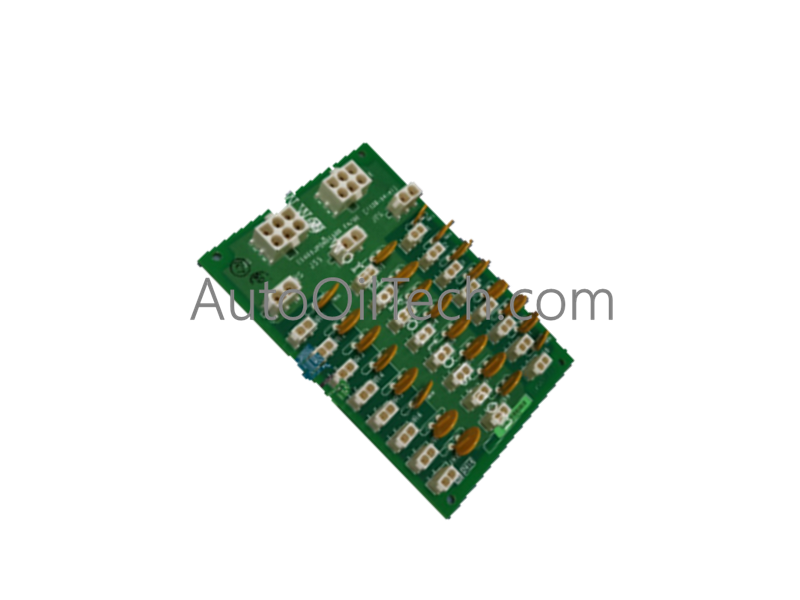

Configured for analog signal acquisition and loop command translation in Mark VIe control systems, the GE IS230SNHRH2A (IS230SNHRH2A HART Analog I/O Module) provides direct physical/electrical execution. The hardware assembly processes 10 analog inputs and 2 analog outputs while establishing bi-directional highway addressable remote transducer (HART) digital telemetry overlays.
Hardware Specifications
Parameter
Specification
Model
IS230SNHRH2A
Brand
GE Energy
Series
Mark VIe Control System
Origin
United States (US)
Weight
Standard Mark VIe pack-on-board component mass profile
Dimensions
Standard Mark VIe pack-on-board envelope dimensions
Operating Temp
0 to +65 deg C (Standard control room cabinet limits)
Power Consumption
Driven via integrated 24 VDC transmitter distribution lines
HART Status
HART Enabled (Passthrough communication layer)
Terminal Board Subassembly
IS200SHRA
Mounting Apparatus
Back-Placed Mounting Bracket
I/O Pack Subassembly
PHRA Processing Pack
Input Channels
10 Channels (Accommodates 2-wire, 3-wire, 4-wire, and externally powered transmitters)
Output Channels
2 Channels
Terminal Block Type
High-density Euro block connection points
Revision Total
One A-Rated Revision
GE Industrial Control and Deterministic Networks
I/O Density Scaling and Transmitters Integration: The hardware scales channel distribution via the IS200SHRA terminal board, combining multi-wire analog topologies into a singular processing cluster. The onboard architecture accommodates 2-wire, 3-wire, 4-wire, and externally powered transmitters, mapping raw current and voltage drops directly to digitizing arrays.
Onboard Board Identification Matrix: An integrated ID chip embedded within the IS200SHRA terminal board cross-references configuration data directly with the PHRA processing pack. This pairing enforces system diagnostic validation, checking that physical hardware addresses match software I/O density layers during backplane initialization.
