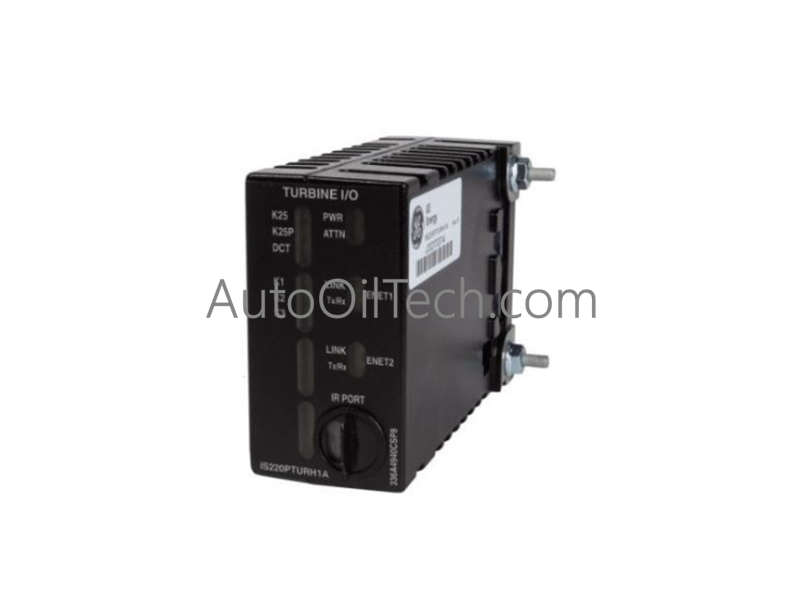

GE IS220PTURH1B (IS230TNTRH1C) Turbine Input/Output Pack

The GE IS220PTURH1B, also cataloged as the IS220PTURH1B Turbine Input/Output Pack, operates as a dedicated hardware component for high-speed sensor integration and primary turbine protection loops within Speedtronic Mark VIe platforms. The module executes localized speed monitoring, overspeed detection, and flame safety parameter processing to regulate turbine actuation and heat recovery steam generator (HRSG) boiler parameters.

Hardware Specifications

GE Industrial Control and Deterministic Networks

• Backplane Bus Communication Velocity and IONet Routing: The module uses its dual redundant RJ45 Ethernet ports to broadcast digitized process variables across the deterministic IONet. The internal processing core packs and transmits speed, synchronization, and interlock metrics at sub-millisecond intervals, ensuring the central controller architecture maintains continuous loop updates without communication lag.
• I/O Density Scaling and Protection Matrix: The hardware architecture scales processing density by handling specialized turbine inputs (such as magnetic speed pickups, generator voltage transformers, and flame detectors) through a single node footprint. It coordinates directly with the main trip terminal boards (like the TRPG matrix), enabling primary overspeed and emergency fuel-shutoff execution independently of the primary master controller blocks.

Frequently Asked Questions

Q: What is the primary operational role of the IS220PTURH1B in HRSG and boiler automation configurations?

A: The I/O pack reads and digitizes the safety interlock and flame sensor signals directly associated with gas turbine exhaust paths. By routing these high-speed inputs through its deterministic processing registers, it allows the master system to accurately regulate exhaust heat distribution into the HRSG boiler components.

Q: Can the IS220PTURH1B module be replaced or swapped while the network is fully operational?

A: Yes, if the hardware is deployed within a Triple Modular Redundant (TMR) or Dual Modular Redundant (DMR) control configuration. The parallel tracking I/O packs maintain continuous network polling and trip voting cycles, allowing a single faulty module to be unseated from its DC-62 pin terminal base without interrupting turbine operation.
