GE IS220PDOAH1B（IS230SNRLH2A) Discrete Output Module

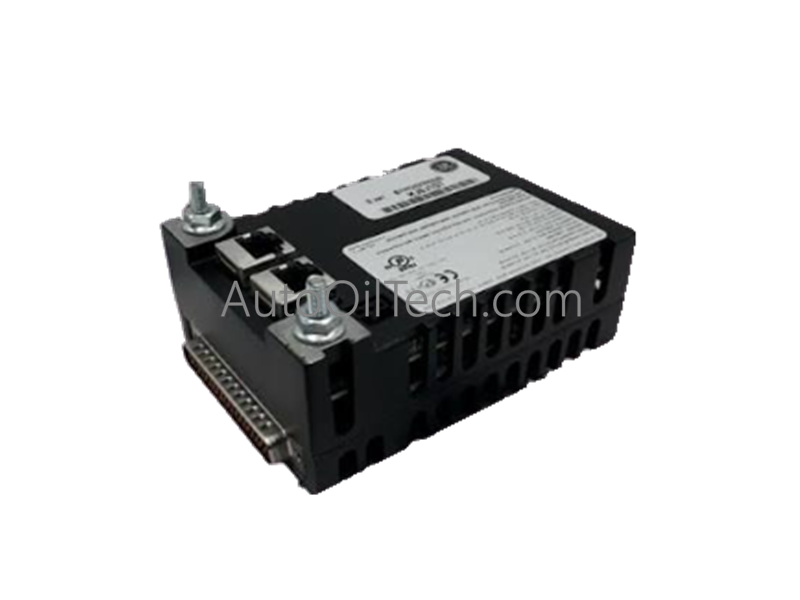

The GE IS220PDOAH1B, also cataloged as the IS220PDOAH1B Discrete Output Pack, operates as a dedicated hardware component for binary control command execution and relay driving within Mark VIe control systems. This intelligent I/O pack plugs straight into a matching terminal board, processing logic commands over redundant Ethernet links to command up to 12 electromechanical or solid-state relays while integrating localized coil feedback monitoring tracks.

Suffix Breakdown & Model Matrix

• GE IS220PDOAH1B (Discrete Output Pack): Identifies the standalone active electronic processor pack. It contains the standardized common processing board layer, a specialized discrete output acquisition board, dual RJ45 network interfaces, an infrared diagnostic link, and a 3-pin soft-start power connection.
• GE IS230SNRLH2A (Full Functional Kit): Represents the paired system kit configuration. This combination bundles the active IS220PDOAH1B discrete output pack with its corresponding simplex relay terminal board layout (IS200TRLYH1B or similar) to establish a unified terminal junction node.

Hardware Specifications

Industrial Control and DCS Metrics

• Backplane Bus Communication Velocity and Processing Matrix: The internal processing architecture decodes serialized binary commands received via the dual RJ45 Ethernet ports and routes them straight to the DC-37 pin output port. This communication path eliminates software execution bottlenecks, delivering high-velocity output transitions to the terminal relay coils within targeted system scan windows.
• I/O Density Scaling and Feedback Integration: The module integrates 15 dedicated internal inputs configured to monitor the physical status of the 12 driven relays and their respective coil states. This diagnostic scaling loop provides real-time verification of circuit continuity and contact position, flagging an internal diagnostic register if a mechanical relay fails to commute following a control command.

Frequently Asked Questions

Q: How does the module handle output execution when configured in a Triple Modular Redundant (TMR) setup?

A: In a TMR setup, three separate IS220PDOAH1B packs plug into a single terminal board. The underlying terminal board circuitry uses a hardware-based voting matrix (typically a 2-out-of-3 coil arrangement) to combine the three independent command streams, ensuring continuous, fault-tolerant execution even if one module fails.

Q: Is it necessary to de-energize the main power feed cable before hot-plugging the 3-pin power connector?

A: No. The hardware incorporates a dedicated soft-start circuit on the power rail. This layout automatically regulates and limits initial current inrush spikes upon insertion, allowing maintenance technicians to complete live hot-plug replacements safely without interrupting parallel rack components.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Insert the module's DC-37 pin plug square into the matching receptacle on the pre-mounted terminal board. Secure the pack firmly using the threaded studs located adjacent to the Ethernet ports, and adjust the structural mounting bracket to eliminate any right-angle forces that could strain the DC-37 pin interfaces.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all incoming dual Ethernet communication lines and power connections inside low-potential panel wireways kept physically isolated from high-voltage AC relay load lines. Ensure that all external field cabling shields are terminated at a separate panel ground bracket to prevent high-frequency noise from interfering with the surface-mount logic boards.
