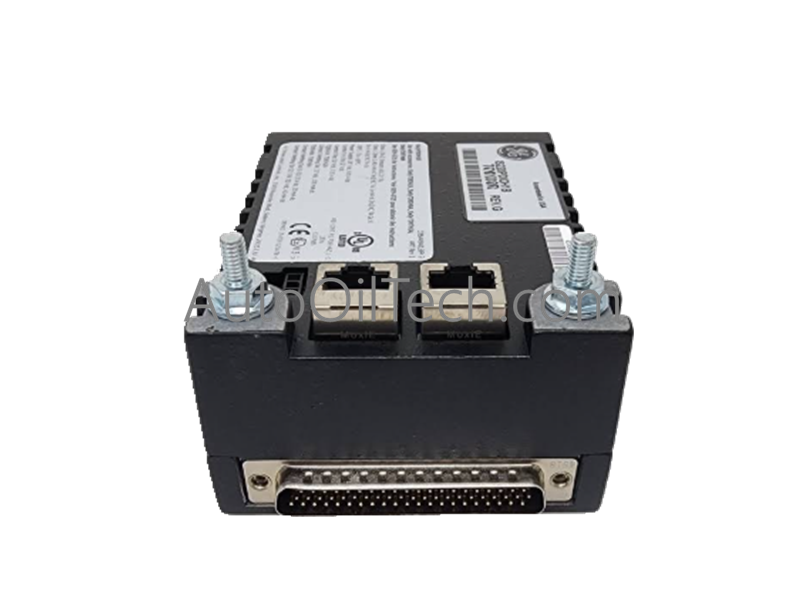

GE IS220PDIAH1B（IS230SNCIH2A) Discrete Contact Input Module

The GE IS220PDIAH1B, also cataloged as the IS220PDIAH1B Discrete Contact Input Terminal Board, operates as a dedicated hardware component for high-speed binary signal acquisition and serialization within Mark VIe control systems. This intelligent I/O pack plugs straight into a matching terminal board, processing 24 independent field contact loops through optical isolation paths before distributing state bytes over redundant Ethernet lines.

Suffix Breakdown & Model Matrix

• GE IS220PDIAH1B REV B (Discrete I/O Pack): Identifies the standalone active electronic processor component. It houses the standardized core processing layer, specialized 24-channel acquisition circuitry, dual RJ45 Ethernet ports, visual diagnostic LEDs, and the baseline 4 ms hardware filters.
• GE IS230SNCIH2A (Full Functional Kit): Represents the unified system kit assembly. This combination pairs the active IS220PDIAH1B digital processing module with its companion simplex terminal board layout (IS200STCIH2A) to form a complete field-mounting input junction node.

Hardware Specifications

Industrial Control and DCS Metrics

• Backplane Bus Communication Velocity and Network Mapping: The module translates field contact transitions directly across the DC-37 pin interface into internal memory registers. The internal processor scans and serializes these bits into Ethernet-compatible data structures within a 4 ms window, routing real-time status data directly to the master controller network without incurring processing queue delays.
• I/O Density Scaling and Voltage Rejection Barriers: The hardware accommodates up to 24 separate digital points while implementing an optical isolation barrier rated to 1500 V on every input track. An internal AC rejection filter layout dampens induced common-mode noise up to 60 V RMS, preventing parasitic 50/60 Hz inductive cross-talk fields on long field runs from triggering false state changes.

Frequently Asked Questions

Q: How does the internal soft-start capability benefit live field maintenance routines?

A: The integrated soft-start circuitry automatically controls and limits the electrical current inrush when the 3-pin power plug is inserted. This protection matrix enables hot-plug deployment, meaning engineers can connect or replace the active I/O pack without needing to isolate power up-line from the cable feed.

Q: What structural limitation prevents the module from pairing with a DTCI terminal board?

A: The physical trace paths and mechanical alignment orientation of the IS220PDIAH1B processor pack are specifically engineered for the flat-mount and rack configurations found on TBCI, TICI, and STCI baseboards. It is electrically and mechanically incompatible with the layout constraints used on DIN-rail mounted DTCI assemblies.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Line up the module's DC-37 pin plug straight with the matching receptacle on the pre-mounted terminal board. Push the pack down until fully seated, then tighten the threaded studs near the RJ45 ports into the structural mounting bracket. Adjust the bracket carefully to eliminate any right-angle structural forces acting on the pins.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all discrete contact loop conductors through dedicated panel wire channels kept isolated from high-voltage AC power paths or variable frequency drive lines. Terminate all field cabling shield arrays at a separate external grounding bar within the enclosure to divert high-frequency electromagnetic noise away from the optical isolation circuitry.
