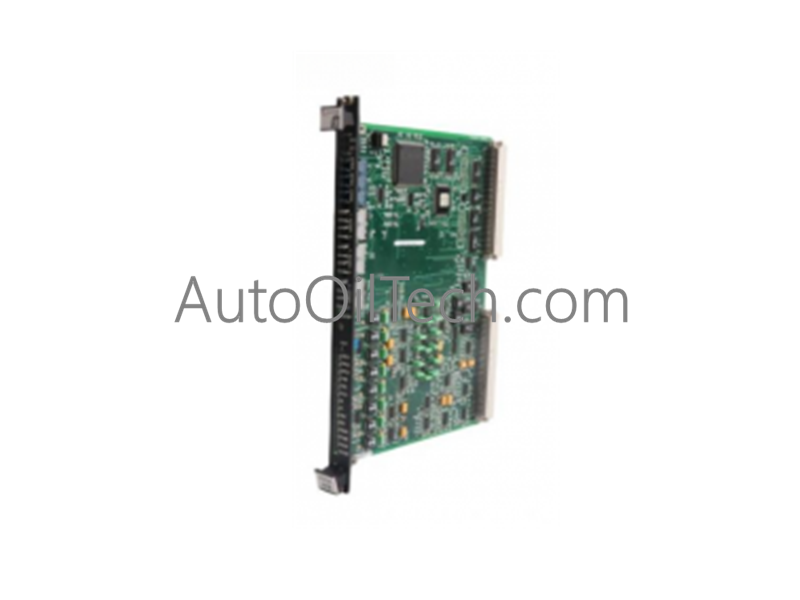

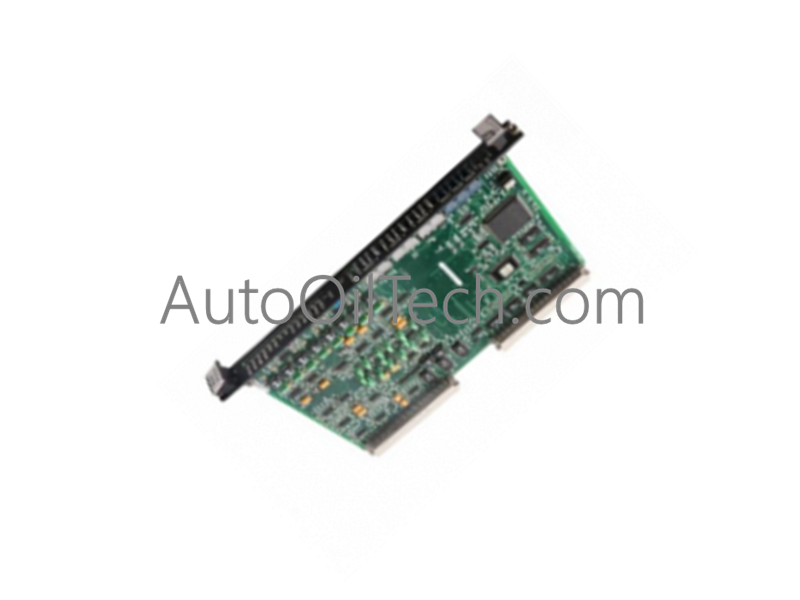

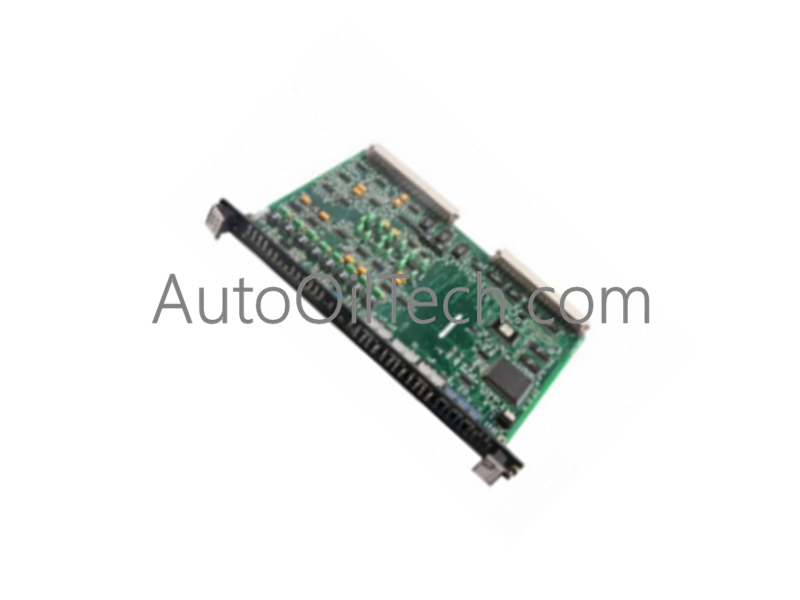

GE IS200VVIBH1CAB VME Vibration Board

Configured for vibration monitoring tasks in Mark VI turbine control systems, the GE IS200VVIBH1CAB (IS200VVIB VME Vibration Board) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The functional product number designates specific hardware attributes:

• IS200: Indicates the Mark VI Series assembly and domestic original GE manufacture location.
• VVIB: Denotes the functional product acronym for the VME vibration board.
• H1: Specifies group one Mark VI Series grouping.
• C / A / B: Represents the primary functional revision (C), secondary functional revision (A), and artwork revision (B).

Hardware Specifications

Firmware Flash Compatibility & Backplane Communication

Integrated into the Mark VI system architecture, the IS200VVIBH1CAB coordinates probe signal conditioning across multiple independent control paths.

• Firmware Flash Compatibility: Utilizes onboard field-programmable gate arrays (such as the Xilinx Spartan Xcs30) and SRAM/RAM chips that require precise system configuration parameters.
• Backplane Bus Communication Velocity: Manages high-speed data transactions via dual backplane connectors to ensure minimal latency during vibration data acquisition.
• I/O Density Scaling: Processes multi-channel vibration inputs from seismic, phase, proximity, acceleration, and velocity probes linked through terminal boards.

Frequently Asked Questions

Q: What does the conformal PCB coating consist of on the IS200VVIBH1CAB?

A: The conformal PCB coating is a thin layer of protective coating applied across the entire base printed circuit board.

Q: What revision grades does this vibration board possess?

A: It makes use of two functional revisions and a single artwork revision rated at grades C, A, and B respectively.

Field Installation Guidelines

1. Power Isolation: Ensure all rack power supplies are completely de-energized before handling or installing the VME board.
2. Electrostatic Discharge Protection: Attach a grounded wrist strap to the designated cabinet earth point to protect sensitive integrated circuits and FPGAs.
3. Mechanical Insertion: Slide the board along the rack guide rails and secure the attached faceplate to maintain proper mechanical alignment with the backplane connectors.
4. Signal Wiring Verification: Confirm that probe cables originating from DVIB or TVIB terminal boards are securely terminated to prevent signal attenuation.
