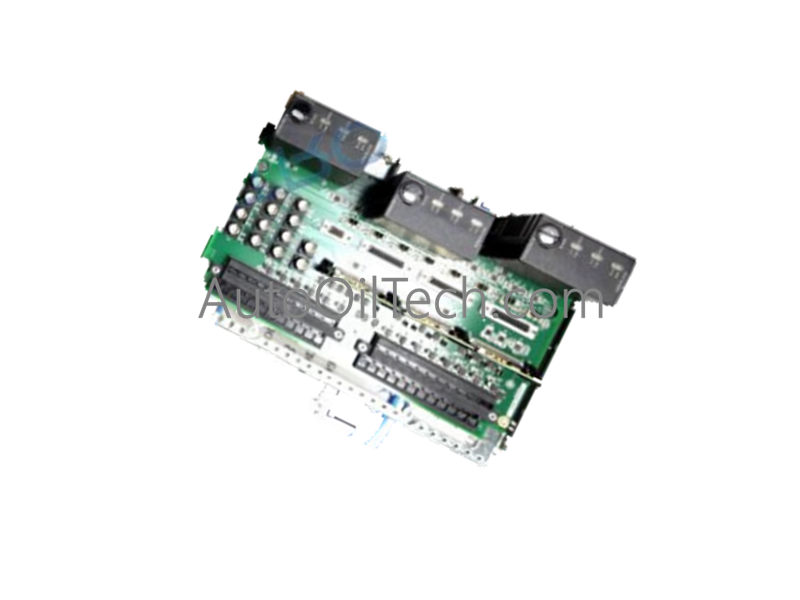

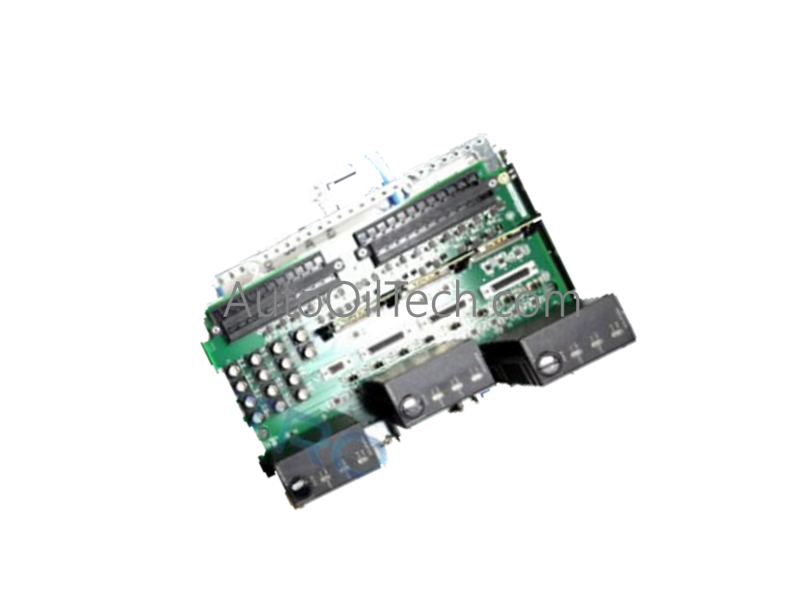

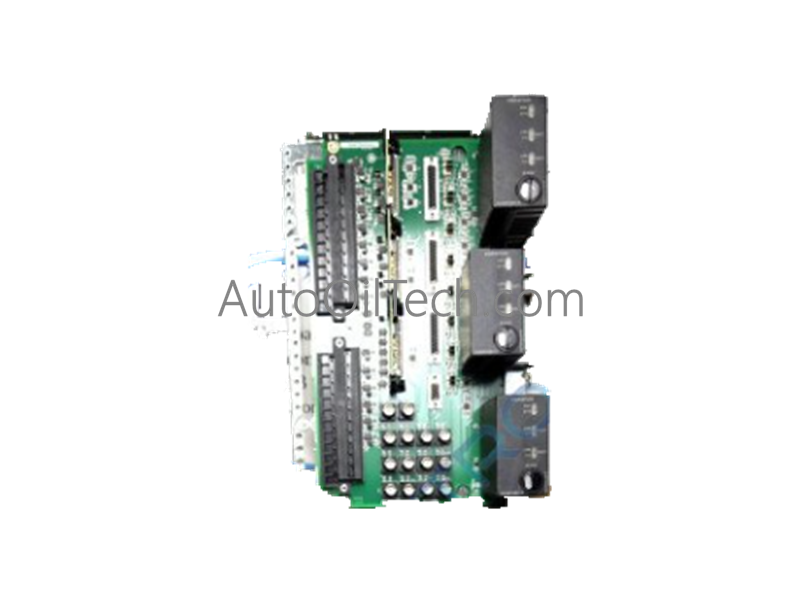

GE IS200STAOH2AAA (IS230SNAOH2A) Output Module

The GE IS230SNAOH2A, also cataloged as the IS230SNAOH2A Analog Output Module, operates as a dedicated hardware component for closed-loop current loop execution within Mark VIe industrial control networks. The system combines an IS200STAO terminal board with a PAOC I/O pack, functioning as a single integrated block that translates internal control registers into 0-20 mA analog output commands.

Hardware Specifications

Industrial Control and Drive Dynamics

• Deterministic Noise Suppression and Filtering: The module incorporates built-in surge filtering networks directly onto the STAO terminal board layer. This physical circuit layout attenuates high-frequency ripple and electrical noise spikes across all 36 terminal connection points, preserving step response velocity while isolating downstream execution equipment from network disturbances.
• Onboard Register Identification and Diagnostics: The integrated STAO board includes a pre-programmed ID chip holding factory calibration parameters and product serial codes. Upon initialization, the PAOC I/O pack interrogates this component to confirm hardware compatibility and calibrate the baseline current sense parameters across the 8 analog output lines.

Frequently Asked Questions

Q: How does the internal loop tracking system run self-diagnostics on the 0-20 mA currents?

A: Every channel continuously monitors the voltage drop across its local current sense resistor. This real-time diagnostic feed loops back to the onboard I/O processor; if an open circuit or loop fault prevents the channel from matching its commanded 0-20 mA target, the processor flags a localized fault code.

Q: Can this module be configured to drive high-impedance actuator loads up to 1000 ohms?

A: The 0-20 mA outputs are optimized for standard industrial actuator loop impedances. When loops trend toward higher resistance boundaries, the installer must verify that the driver voltage compliance bounds can sustain the full current profile without inducing clipping.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Snap the integrated module base cleanly onto a grounded standard DIN rail tracking frame. Position the assembly vertically to let internal thermal air currents rise freely, maintaining a 50 mm clearance gap from adjacent components to prevent thermal load concentrations on the plastic housing.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Strip and secure field wires into the 36 high-density Euro-block terminals. Route these 0-20 mA driver paths inside dedicated low-voltage conduits separate from any AC mains lines or heavy motor power conductors. Terminate all outer cable shield layers cleanly at the enclosure's central copper earth bus to isolate the control loops from electromagnetic field noise.
