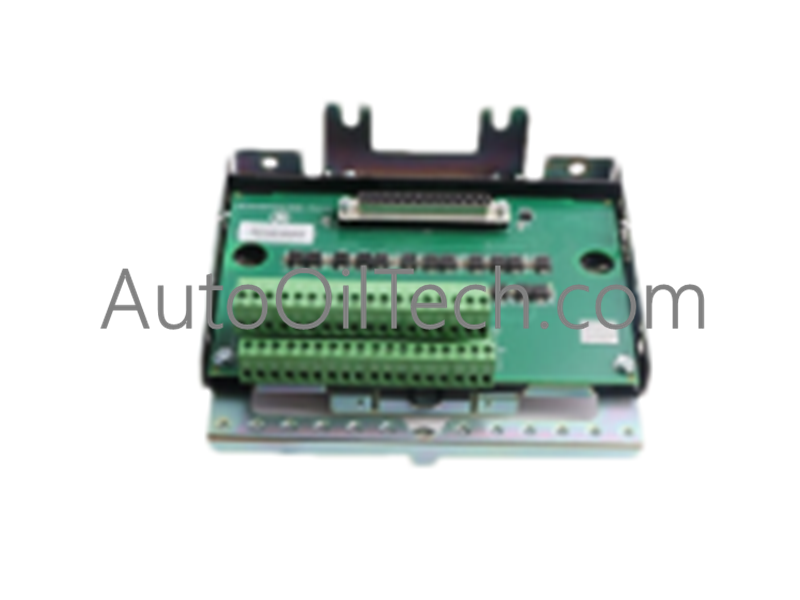

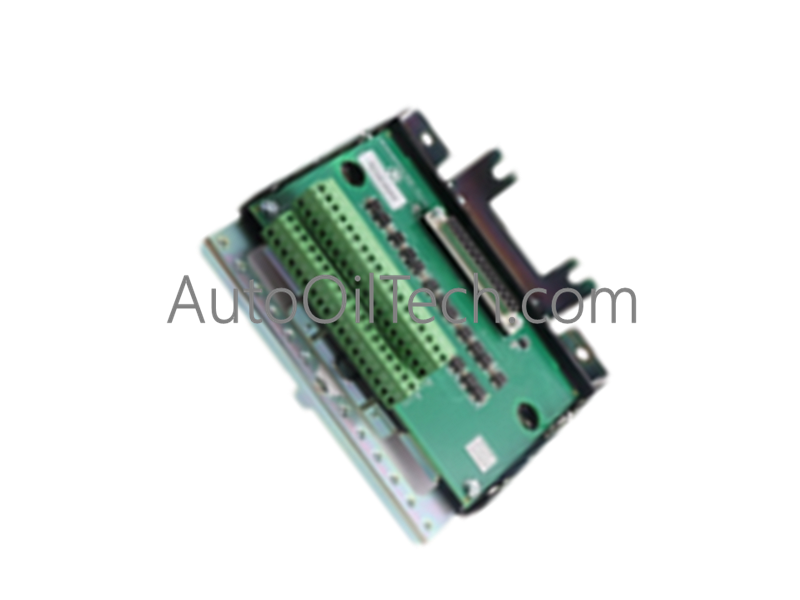

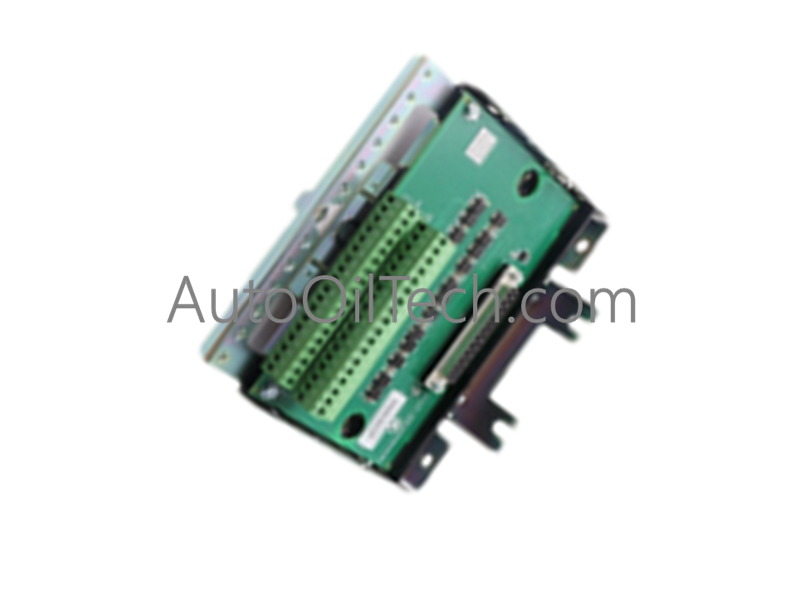

GE IS200STAOH2AAA（IS230SNAOH2A） Analog Output Module

Configured for high-precision analog control in Mark VIe turbine control systems, the General Electric IS200STAOH2AAA(IS230SNAOH2A) (IS200STAOH2AAA(IS230SNAOH2A) Analog Output Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The catalog designation IS200STAOH2AAA(IS230SNAOH2A) defines a specific hardware build and terminal board pairing. The base identifier IS200STAOH2AAA represents the terminal board assembly, while the parenthetical IS230SNAOH2A indicates the corresponding I/O pack module architecture.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and I/O Density Scaling

The module executes high-performance control tasks across industrial networks while maintaining rigid timing characteristics. Key operational behaviors include:

• Supporting deterministic network communication paths across Speedtronic platform architectures to maintain synchronized command execution for actuators and transmitters.
• Managing I/O density scaling efficiently through a compact, protected enclosure design rated to IP65 standards.
• Processing digital-to-analog conversions with a 12-bit or 16-bit resolution and a high accuracy rating of ±0.05% of full scale across an extended operating temperature range.

Frequently Asked Questions

Q: What are the supported output signal types for this module?

A: It supports both voltage signals (0-10 V, ±10 V) and current signals (4-20 mA) across multiple isolated analog output channels.

Q: Does the IS200STAOH2AAA(IS230SNAOH2A) support hot-swapping within the Mark VIe control architecture?

A: Yes. The modular terminal board and I/O pack design allows unpowered or system-managed hot insertion and extraction when executed inside designated redundant controller topologies.

Field Installation Guidelines

1. Ensure the system rack power supply is completely de-energized and locked out (LOTO) prior to mounting or wiring the hardware assembly.
2. Secure the module enclosure (dimensions 16.7 cm x 14.8 cm x 5.5 cm) firmly to maintain environmental protection up to IP65 standards in harsh plant environments.
3. Terminate analog field wiring for valves and actuators while ensuring correct shielding to prevent electromagnetic interference.
4. Verify power supply voltage levels at 24 VDC ±10% and check loop continuity prior to restoring system power.
