GE IS200SHRAH2A HART Analog Input
No reviews
In stock!
- Part Number: IS200SHRAH2A
- Brand: General Electric
- Type: HART Analog Input
- Dimensions: 4x18.5x12.7cm
- Country of Origin: USA
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description

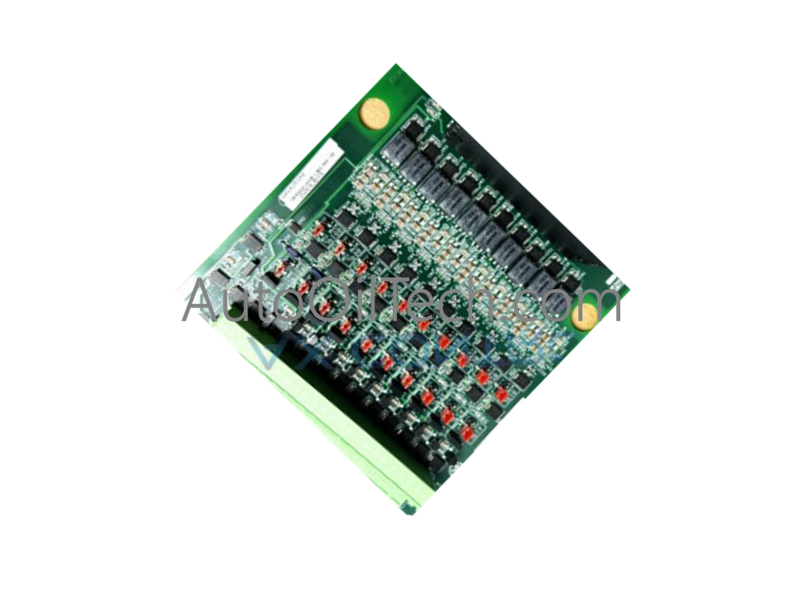

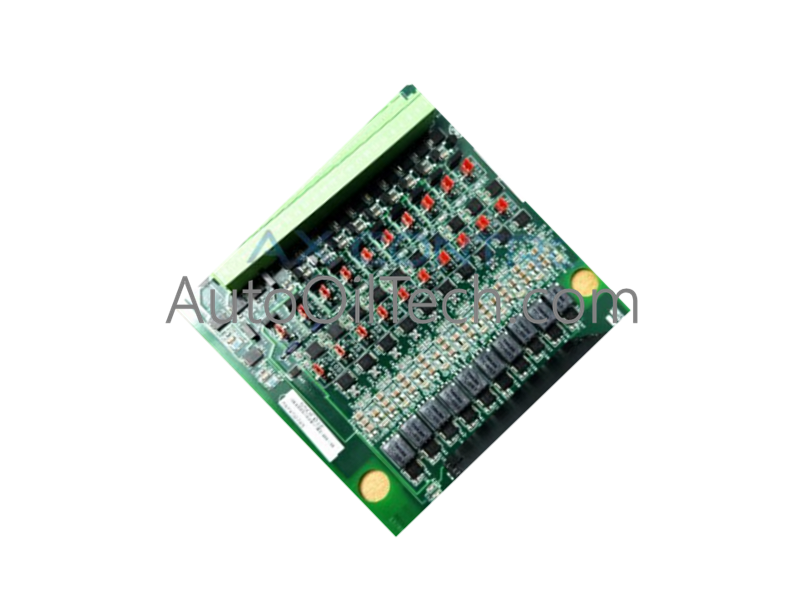

The GE IS200SHRAH2A, also identified by its functional acronym SHRA, operates as a specialized, HART-enabled Analog Input/Output terminal board within General Electric's Speedtronic Mark VIe turbine control platform. Featuring a robust conformal coating for harsh environment survivability, this board serves as a physical interface layer routing multi-wire analog transmitters to the primary processing packs.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200SHRAH2A |
| Brand | GE Energy / General Electric |
| Series | Speedtronic Mark VIe |
| Functional Acronym | SHRA |
| PCB Coating | Conformal coating (Enhanced moisture and airborne contaminant protection) |
| HART Status | HART Enabled (Supports digital highway addressable remote transducer telemetry) |
| Compatible I/O Pack | PHRA Processing Pack |
| System Topology | Simplex configuration (Single control path connectivity) |
| Input Channels | 10 Total Analog Inputs (Accommodates 2-wire, 3-wire, 4-wire, and externally powered transmitters) |
| Output Channels | 2 Total Analog Outputs |
| Onboard Hardware Adjustments | 20 Configurable Jumpers (Voltage/current selection, return-to-common routing) |
| Mounting Strategy | DIN Rail / Sheet metal carrier assembly with plastic holder |
| Revision Level | Functional Revision 1A (A-rated functional layout optimization) |
GE Industrial Control and Deterministic Networks

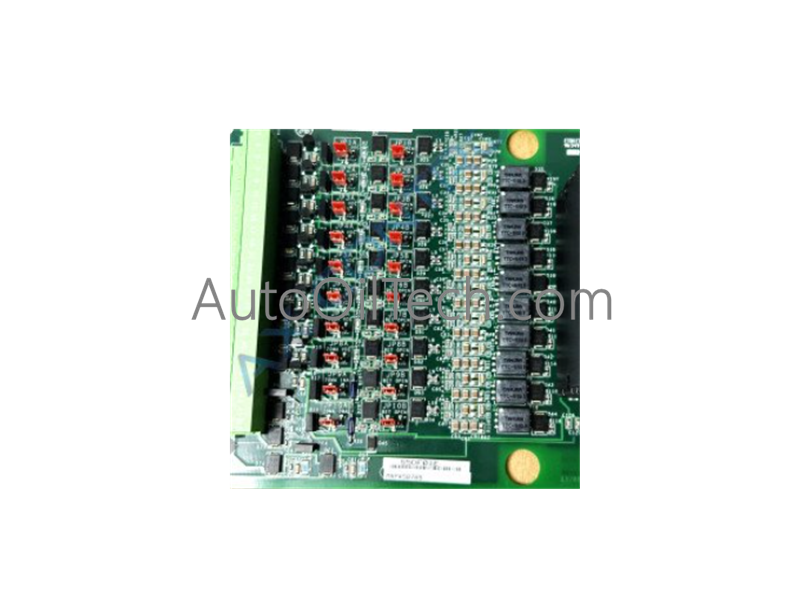

- I/O Density Scaling and Field Customization: The SHRA board integrates 10 input and 2 output analog fields onto a tight simplex block footprint. It features 20 designator-labeled onboard jumpers, allowing plant engineers to manually configure each channel for voltage or current input monitoring or adjust return-to-common connection traces without needing external signal conditioners.
- Inter-Platform Connector Configurations: Unlike legacy terminal boards designed for the standard Mark VI series which rely on a 37-pin physical interface, the IS200SHRAH2A uses a high-density 62-pin D-type connector. This physical change accommodates the specialized HART digital messaging passthrough layer to route instrumentation frames straight through to the Ethernet-linked PHRA I/O pack.
Frequently Asked Questions
Q: Can the IS200SHRAH2A be deployed inside a Mark VI control panel enclosure?
A: No, it is strictly incompatible with Mark VI systems. The physical connection topology relies on a 62-pin layout designed specifically to lock onto Mark VIe processing packs, whereas legacy Mark VI backplanes utilize an entirely different 37-pin pinout architecture.
Q: Why is the single A-rated revision of this board classified as a "functional" revision?
A: The A-rated designation represents a targeted functional revision. The modifications focus strictly on trace stability, signal performance, and internal routing optimizations for the board's I/O processing matrix, intentionally prioritizing physical operational metrics over pure aesthetic adjustments.
