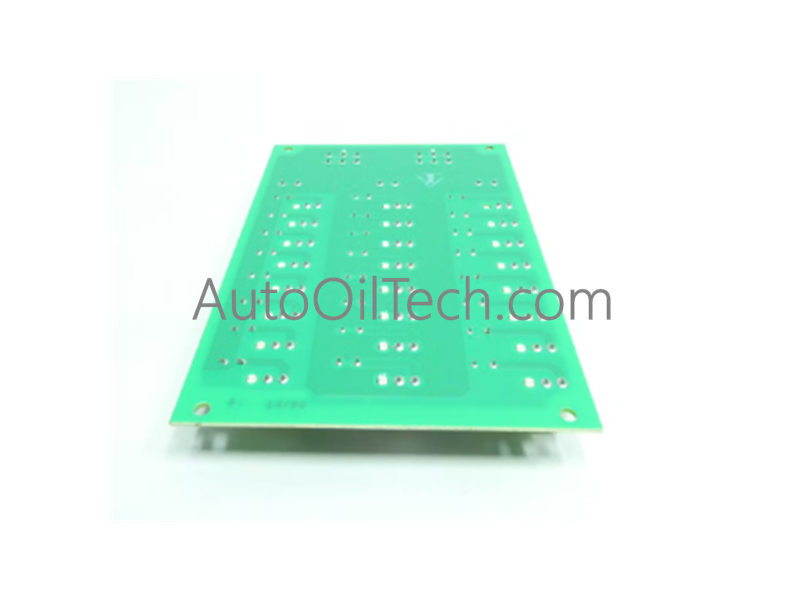

GE IS200JPDHG1A I/O Pack Power Distribution Card

GE IS200JPDHG1A I/O Pack Power Distribution Card

Configured for DC distribution within Mark VIe control assemblies, the GE IS200JPDHG1A (IS200JPDHG1A Power Distribution Card) provides conditioned DC routing, fused outputs, and plug‑and‑play feedback interfacing for I/O packs mounted in JPDS, JPDC, and JPDM power‑distribution frames.

Hardware Specifications

Backplane Bus Communication Velocity Licences

As a GE industrial control module, the IS200JPDHG1A participates in deterministic Mark VIe cabinet‑level power‑distribution timing. Fused DC paths and diagnostic routing support stable propagation windows across I/O pack sampling cycles. The board’s architecture aligns with I/O density scaling across JPDS/JPDC/JPDM frames and maintains firmware flash compatibility with Mark VIe controllers. When integrated into plant‑wide PLC/DCS networks, deterministic behavior is preserved across Profinet / EtherNet/IP deterministic networks.

Frequently Asked Questions

Q: What is the function of the IS200JPDHG1A? A: It distributes DC power to I/O packs and provides fused protection and diagnostic routing within Mark VIe power‑distribution assemblies.

Q: Does the board support PPDA feedback? A: Yes. Diagnostic signals are routed through P1/P2 connectors to PPDA packs.

Q: Can the board be replaced while energized? A: No. All cabinet circuits must be de‑energized before removal or installation.

Field Installation Guidelines

• Mount the board directly onto JPDS, JPDC, or JPDM assemblies using the designated connector alignment.
• Verify correct seating of all I/O pack connectors to maintain stable DC distribution.
• Route DC wiring separately from high‑energy conductors to minimize noise coupling.
• Inspect fused distribution paths for correct ratings before energizing the cabinet.
• Ensure grounding practices follow Mark VIe guidelines to prevent ground‑loop interference.
• Avoid contamination of surface‑mount components; debris can create leakage paths under load.
