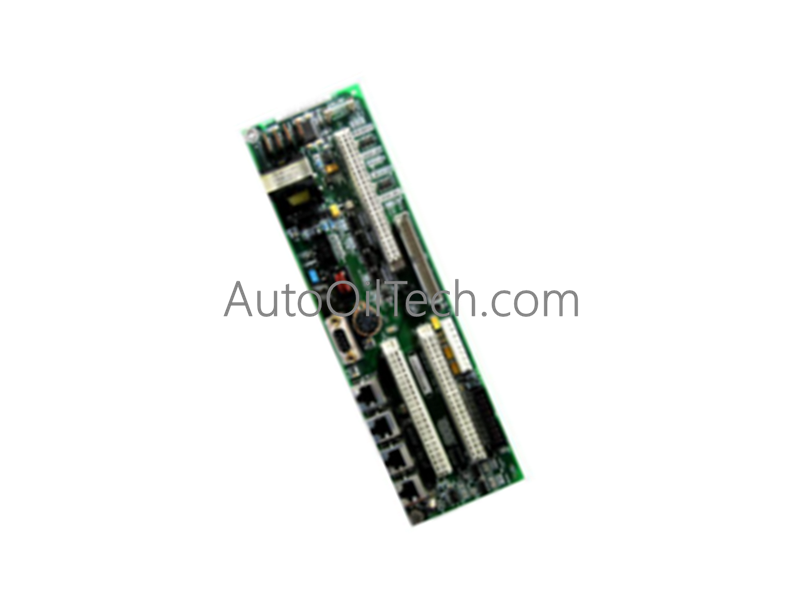

GE IS200ICBDH1ABA Control Card

The GE IS200ICBDH1ABA, also cataloged as the IS200ICBDH1ABA Control Card, operates as a dedicated hardware component for signal processing and I/O management within Mark VI Speedtronic turbine control architectures. Configured for high-density signal interfacing, the GE IS200ICBDH1ABA (IS200ICBDH1ABA Control Card) provides direct electrical execution of turbine control routines via the system backplane.

Suffix Breakdown & Model Matrix

Hardware Specifications

Industrial Control and PLC Metrics

• Backplane Bus Communication Velocity: The card interfaces with the Mark VI backplane through three dedicated female connectors to facilitate high-speed data exchange. It is engineered to maintain deterministic signal throughput for the associated control logic, ensuring that inputs from the J11/J12 jack arrays are processed within the system's defined scan frame.
• Profinet / EtherNet/IP Deterministic Networks: While utilizing proprietary Mark VI backplane signaling, the board facilitates deterministic signal routing for turbine sequencing. The architecture ensures that integrated circuits, transformers, and conduction sensors operate in synchronization with the central turbine controller.
• I/O Density Scaling: The board features a high-density configuration including multiple jack connectors (J11A, J11B, J12A, J12B), D-sub (J9), and mini-DIN (J10) interfaces. This scaling capability allows for the aggregation of diverse turbine feedback signals and control commands on a single physical board footprint.
• Firmware Flash Compatibility: The card supports integration into the broader Mark VI control environment where configuration logic is maintained by the system. The onboard reset switch and diagnostic indicators allow for hardware-level state verification without requiring standalone firmware management.

Frequently Asked Questions

Q: Does the IS200ICBDH1ABA support hot-swapping during turbine operation?

A: No. The IS200ICBDH1ABA is not designed for hot-swapping. The host Mark VI rack must be powered down and the backplane bus isolated before attempting installation or removal to prevent potential damage to the high-density connectors and integrated circuit components.

Q: What is the purpose of the conformal PCB coating?

A: The conformal coating is a thin, chemically-applied layer that encapsulates the circuit board. It provides necessary protection against moisture, dust, and corrosive industrial contaminants, ensuring long-term signal integrity in turbine room environments.

Field Installation Guidelines

• Static Sensitivity: This module contains sensitive integrated circuits and must be handled using anti-static protocols. Always utilize a grounded wrist strap when interacting with the board to prevent latent ESD damage to the transistors and logic components.
• Mechanical Seating: Align the three female backplane connectors carefully with the host chassis pins. Ensure the board is seated evenly to prevent bending or pin misalignment. The factory-drilled corner holes should be utilized to secure the board with appropriate mounting hardware, ensuring vibration resistance.
• Connection Integrity: Verify all cable bundles at the J9, J10, and J11/J12 interfaces before commissioning. A loose connection at any of these points can cause intermittent logic state changes or signal loss, which may trigger turbine system protective shutdowns.
