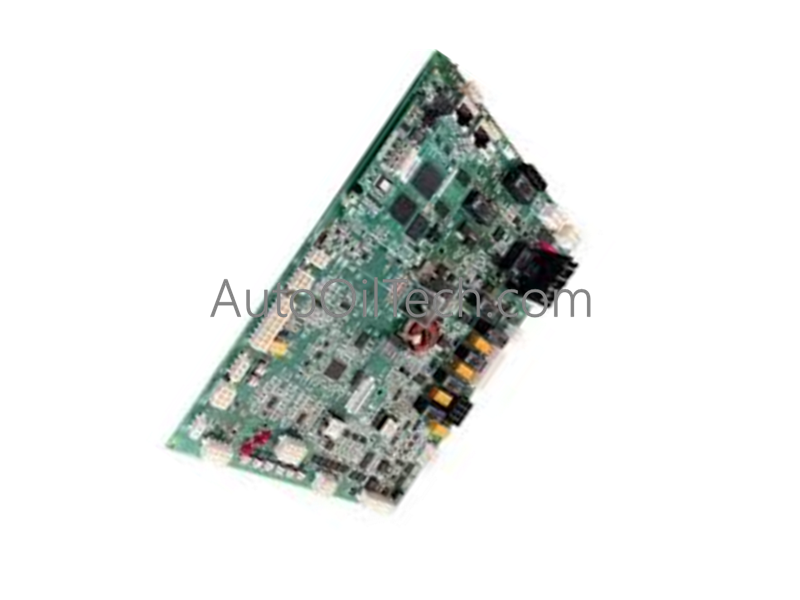

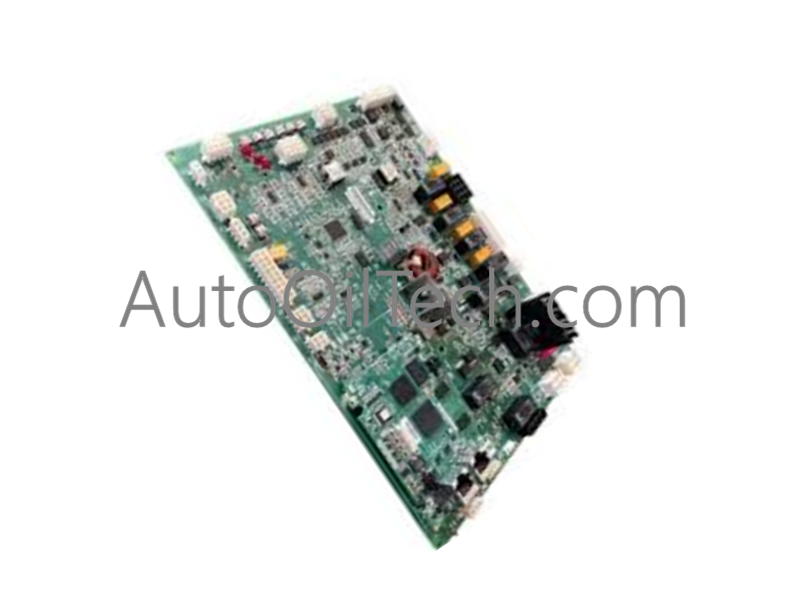

GE IS200AEPAH1BCA (IS215WEPAH2BA) Mark VIe Printed Circuit Boards

In stock!
  • Part Number: IS200AEPAH1BCA (IS215WEPAH2BA)
  • Brand: General Electric
  • Type: Printed Circuit Boards
  • Dimensions: 4.1x12.5x10.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Black
  • Green
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
  • Modular
Tags: GE Mark VIe , Printed Circuit Boards

Product Description

The GE IS200AEPAH1BCA (IS215WEPAH2BA) serves as the primary IS200AEPAH1BCA Printed Circuit Board utilized to execute signal processing and communication across GE Mark VIe Wind Turbine Control System platforms.

Suffix Breakdown & Model Matrix

Code Element Designation / Value Functional Description
Primary Model IS200AEPAH1BCA Main printed circuit board assembly identifier
Associated Board ID IS215WEPAH2BA Secondary layout or hardware variant sub-designation
Board Type PCB Dedicated printed circuit board hardware component

Hardware Specifications

Parameter Specification
Model IS200AEPAH1BCA (IS215WEPAH2BA)
Brand GE
Origin USA / Global Manufacturing Plants
Weight 0.3 kg
Dimensions 152 x 44 x 290 mm
Operating Temp Standard industrial range (0 deg C to 60 deg C)
Power Consumption Powered via 125 VDC rack supply rail
Power Supply Rating 125 VDC
Storage Temperature Range -40 deg C to +70 deg C
Relative Humidity 5 to 95 percent, non-condensing
Software Frame Rates 10 ms, 20 ms, and 40 ms execution intervals
Communication Types IONet and UDH (Universal Data Highway)

Firmware Flash Compatibility and Deterministic Networks

Operating within Mark VIe control architectures, the circuit board coordinates deterministic network communications over IONet and Universal Data Highway (UDH) links. Firmware flash compatibility and hardware revision alignment ensure synchronized frame rates operating at 10 ms, 20 ms, and 40 ms cycles. Internal signal conditioning pathways isolate control logic from high-voltage transients while maintaining high-speed data throughput across backplane interfaces.

Frequently Asked Questions

Q: What communication networks are supported by the IS200AEPAH1BCA board?

A: The board supports high-speed IONet and Universal Data Highway (UDH) network protocols for turbine control communication.

Q: What power supply rating is required to energize this printed circuit board?

A: The hardware operates using a nominal 125 VDC power supply rail delivered through the rack backplane assembly.

Q: What software execution frame rates are supported during runtime operation?

A: The board accommodates deterministic software frame rates configured at 10 ms, 20 ms, and 40 ms intervals.

Field Installation Guidelines

Ensure rack power is completely turned off before inserting or removing the IS200AEPAH1BCA board from the Mark VIe chassis. Handle the printed circuit board strictly by its edges while wearing an ESD-safe wrist strap to prevent electrostatic damage. Align the module carefully with chassis card guides, push firmly to engage backplane connectors, and secure retention screws to maintain mechanical and electrical ground continuity.

View Full Details
