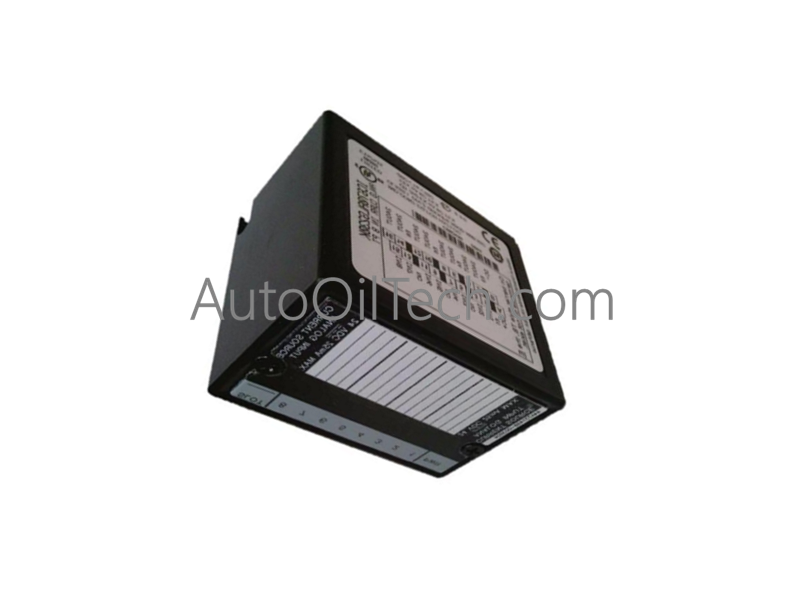

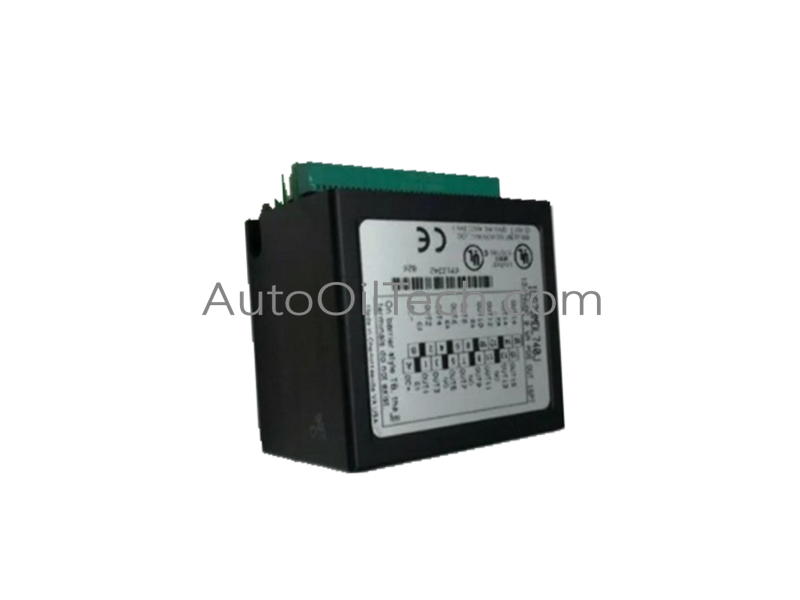

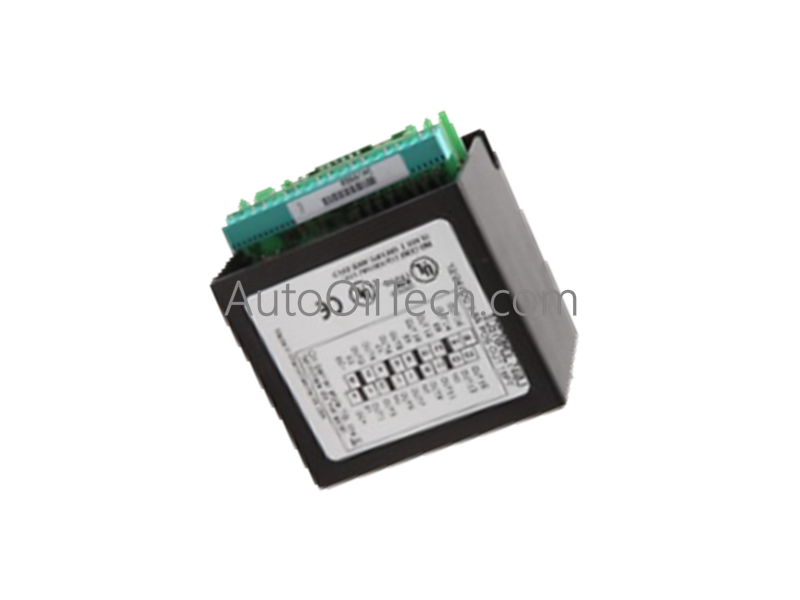

GE IC670MDL644J Input Module

The GE Fanuc IC670MDL644J, also cataloged as the IC670MDL644 Discrete Input Module, operates as a dedicated hardware component for high-speed discrete signal sensing within Field Control I/O stations. The sub-assembly samples continuous input transitions natively at the hardware tier to update internal memory registers across modular expansion frameworks.

Hardware Specifications

Industrial Control & Drive Communications

• I/O Density Scaling and Response Efficiency The 16-channel high-density hardware architecture optimizes space utilization within local expansion racks. The input circuit topology uses fast-response sampling components to detect abrupt voltage alterations rapidly, scaling system processing capability without adding computational overhead to the central controller.
• Profinet / EtherNet/IP Deterministic Network Synchronization Field input data arrays are compiled across the passive parallel backplane structure connecting directly to the local Bus Interface Unit (BIU). The interface sub-assembly packs discrete channel states into fixed data words, transferring signal updates to upstream networks over Profinet or EtherNet/IP links within deterministic application cycles to avoid tracking delays.

Frequently Asked Questions

Q: What defines the functionality of the "fast input" processing circuit on this module?

A: The module contains low-latency electronic hardware filters on all 16 input lines. This design enables the hardware to identify and log high-speed transient pulses or short-duration state transitions much quicker than standard industrial discrete modules, minimizing input propagation delays.

Q: How does the positive/negative logic selection alter the external field wiring parameters?

A: The input matrix configuration adapts to either sinking or sourcing field devices based on the connection of the external common terminal wire. Linking the common terminal to the positive power rail configures the module channels for negative logic (sink), while linking it to the negative rail establishes positive logic (source) tracking.
