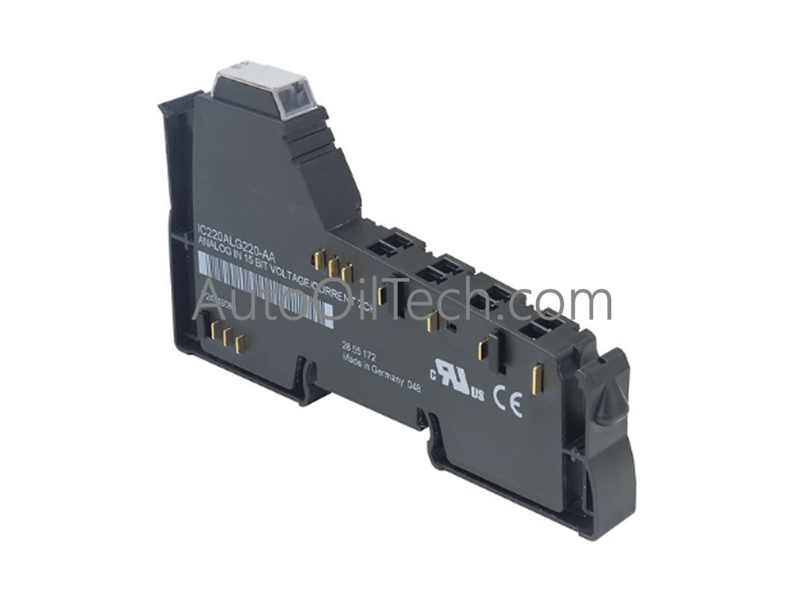

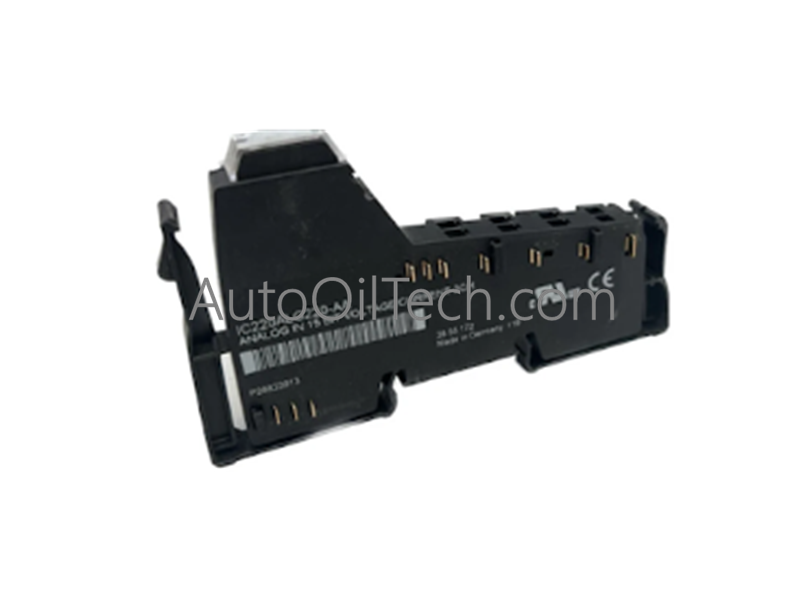

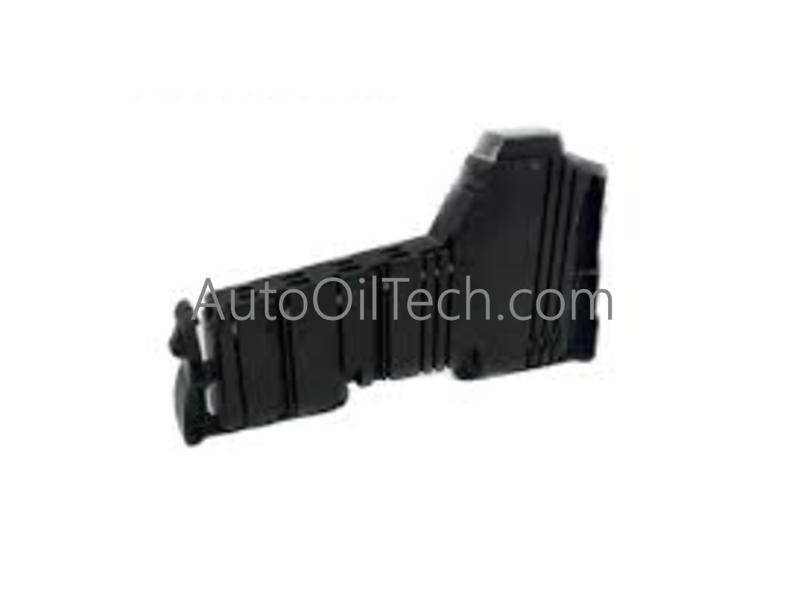

The IC220ALG220 fromGeneral Electric (GE) is a high‑precision VersaPoint Analog Input Module designed for reliable signal acquisition in industrial automation systems. It provides two single‑ended analog input channels capable of processing both voltage and current signals, ensuring seamless integration with diverse field devices and sensors.
Technical Specifications:
Resolution: 15‑bit for accurate signal conversion
Input Channels: 2 single‑ended analog inputs
Input Filter Frequency: 40 Hz for noise suppression
Current Ranges: 0–20 mA, 4–20 mA, and 20 mA fixed
Voltage Ranges: ±10 VDC
Operating Temperature: −25 °C to +55 °C
Storage Temperature: −25 °C to +85 °C
Series Compatibility: Mark I and II VersaPoint systems
Mounting Type: DIN‑rail module
Manufacturer: General Electric
Functional Overview: This module is engineered for flexible sensor connectivity, supporting both 2‑wire and 3‑wire configurations. Its robust design ensures stable performance under harsh environmental conditions, making it ideal for process control, data acquisition, and distributed I/O applications.
Applications:
Industrial automation and PLC systems
Process monitoring and control loops
Sensor signal conditioning for voltage/current transmitters
FAQ:Q: Can the IC220ALG220 handle mixed voltage and current inputs simultaneously?
A: Yes, each channel can be configured independently for voltage or current input.
Q: Is calibration required after installation?
A: Factory calibration ensures accuracy; field calibration is optional for precision tuning.
