GE HE693DNT250 Communication Modules

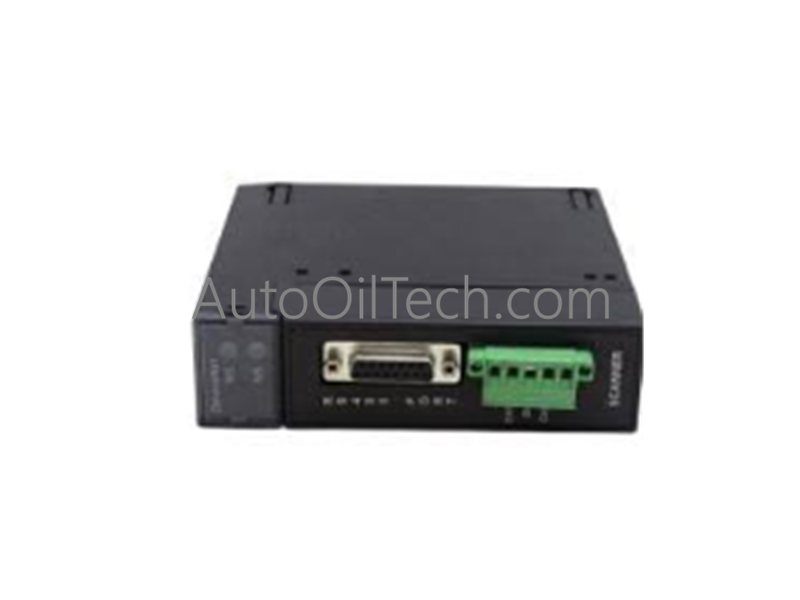

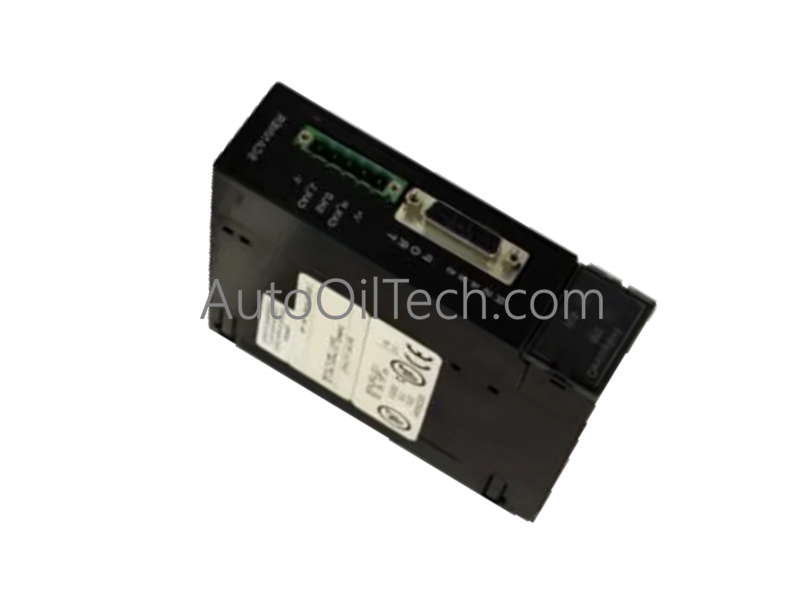

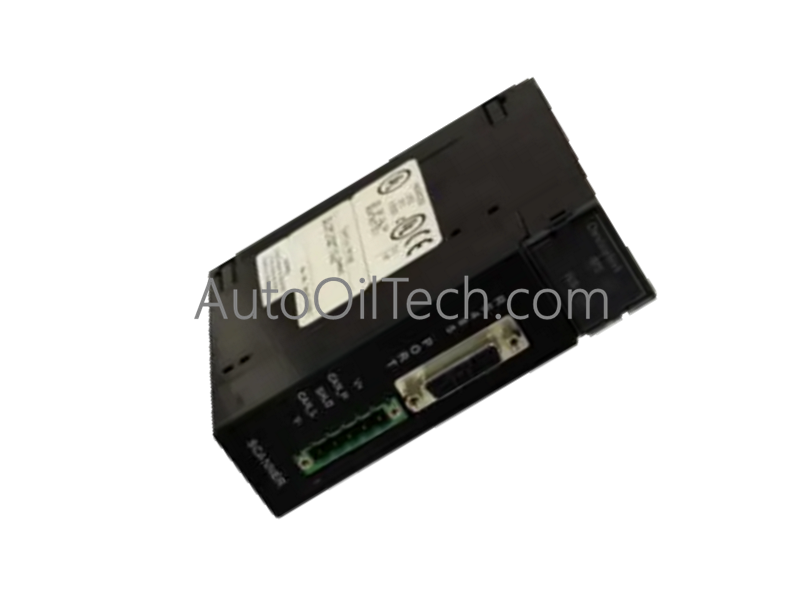

The Horner Automation HE693DNT250, also cataloged as the HE693DNT250 DeviceNet Scanner, serves as the primary HE693DNT250 DeviceNet Scanner (Master) interface utilized to execute serial network arbitration across GE Fanuc Series 90-30 PLC platforms. This smart communications interface module translates field network sensor and actuator metrics directly into host logic structures, managing up to 63 target slave nodes via standard multi-drop topology loops.

Hardware Specifications

Industrial Control and Drive Dynamics

• Backplane Bus Communication Velocity and Processing Matrix: The internal processing architecture directly interfaces the serial DeviceNet transceiver variables with the parallel high-speed GE Fanuc Series 90-30 backplane bus. Polled operational metrics are mapped straight into %I, %Q, %AI, and %AQ register tables, avoiding firmware serialization lags or latency loops in the main ladder logic execution.
• I/O Density Scaling: To expand distributed automation topologies, the master engine supports an array of up to 63 slave nodes over a single network loop. It segments large chunks of mixed discrete, analog, and explicit messaging variables simultaneously, scaling up process I/O density points while implementing continuous 1500 VAC field-to-logic isolation pathways to secure the central processing architecture.

Frequently Asked Questions

Q: Does the HE693DNT250 accept raw SNP or Logicmaster commands directly through its DB9 interface?

A: No. The physical DB9 configuration port handles dedicated setup parameters and local interface logic using an SNP adapter setup. The card does not process direct SNP or Logicmaster executable programming sequences over this serial path.

Q: How does the network baud rate choice limit the mechanical layout of the DeviceNet cable?

A: Higher data velocities require shorter cable distances to preserve integrity. Selecting the 125 kbps rate allows the master module to communicate with nodes placed up to 1500 feet away using thick trunk lines, while selecting the 500 kbps transmission speed limits the physical network branch boundary.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Guide the card housing edges straight into the assigned slot tracks of the Series 90-30 rack baseplate. Push firmly until the backplane multi-pin connector seats into the receiver track, and tighten the integrated holding screws. Verify that a 50 mm clearance gap is kept clear around the cage assembly for thermal dissipation.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route the 5-pin DeviceNet trunk cable inside localized low-voltage wire ways separate from 480 VAC distribution channels or high-inductance motor starter coils. Wire the bare shield drain wire of the network conductor straight to the ground terminal of the 5-pin removable block to shield the internal logic from electromagnetic noise.
