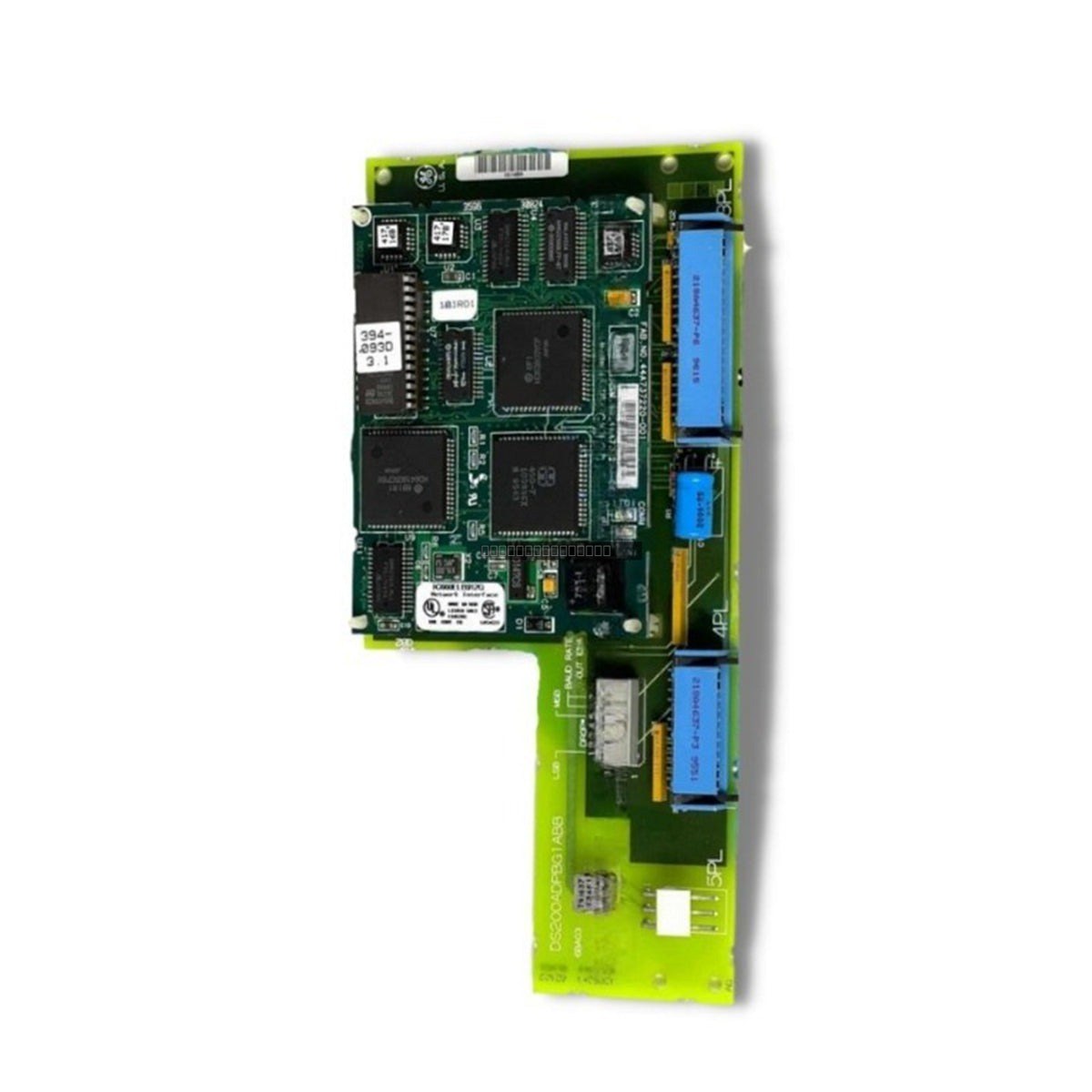

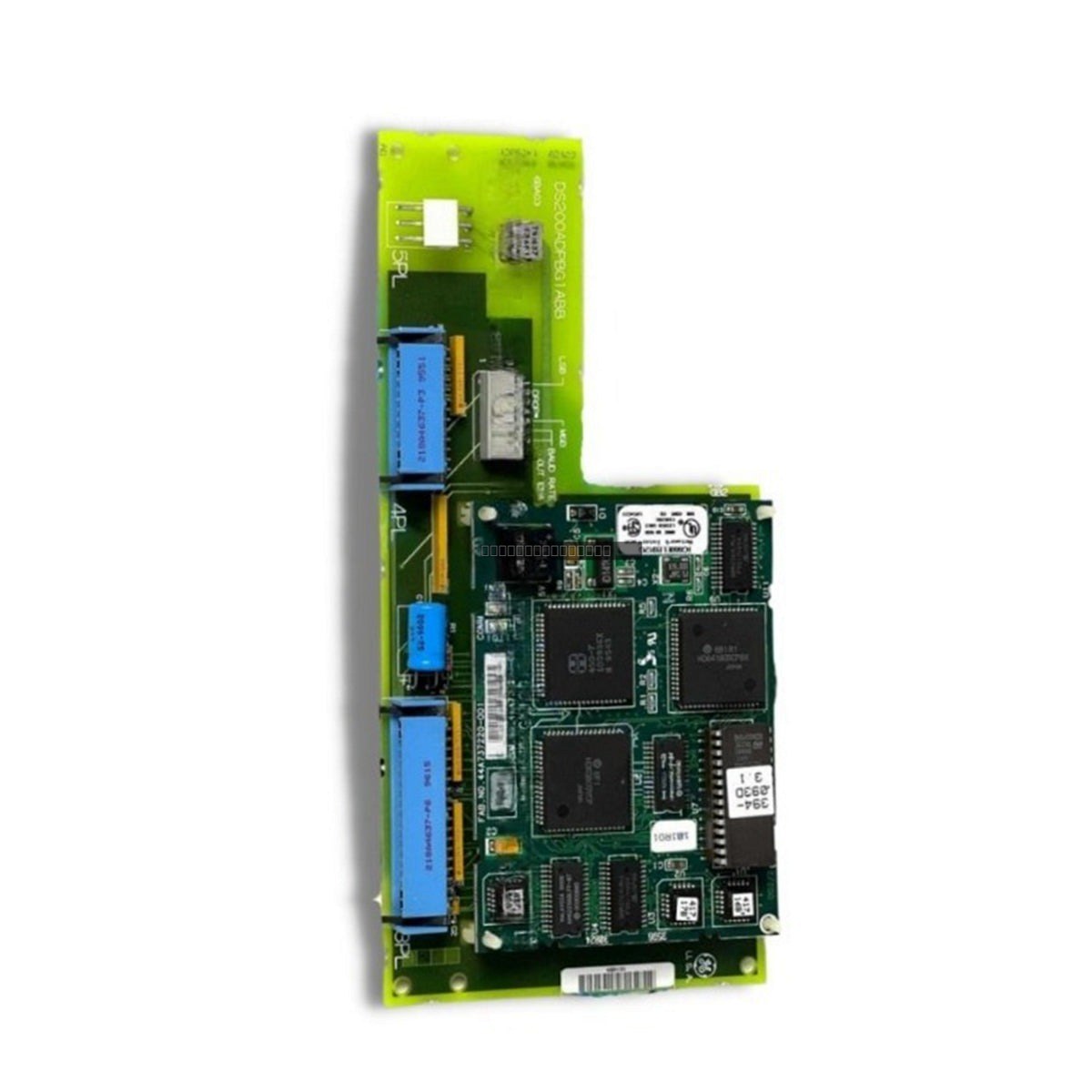

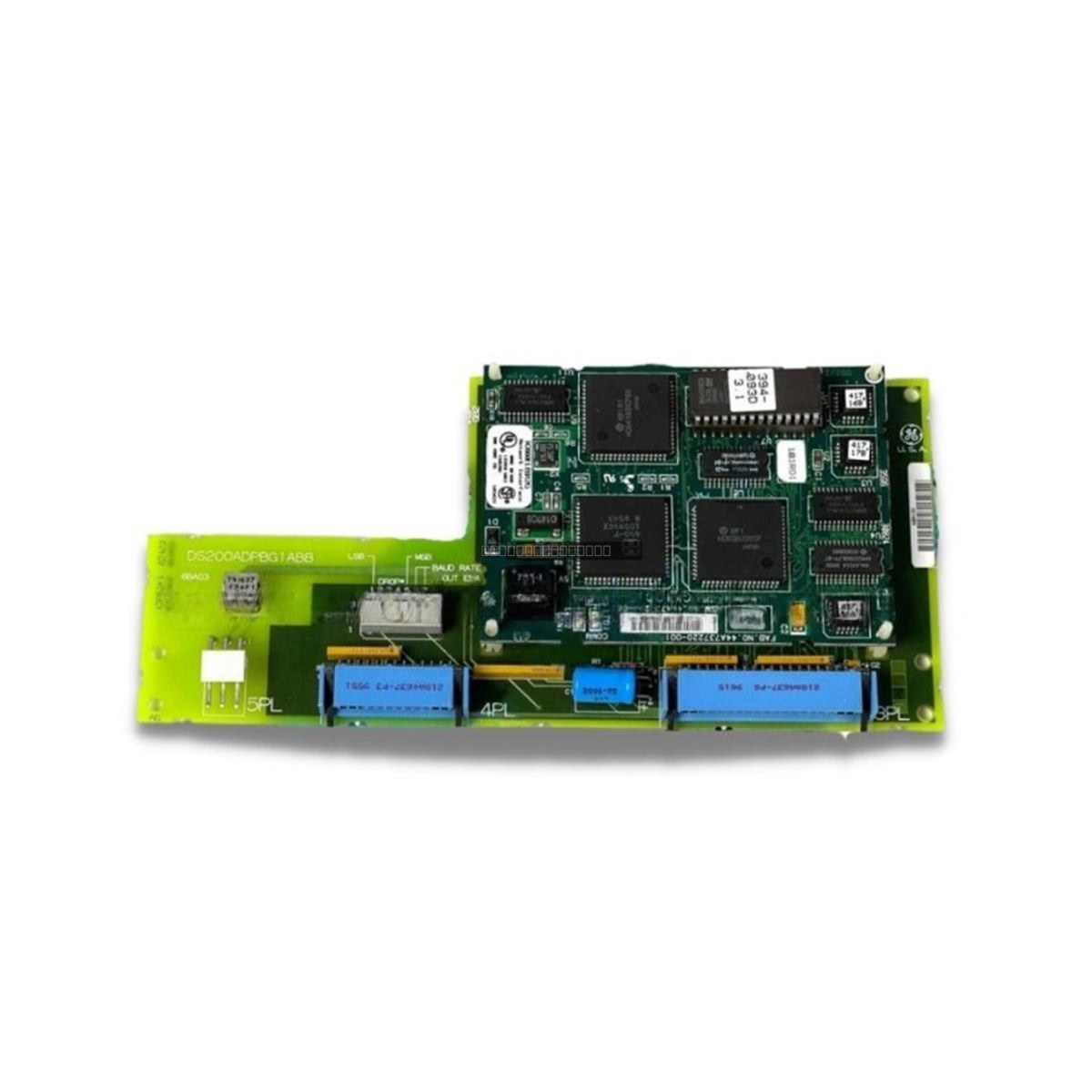

The DS200ADPBG1A is a specialized Genius I/O adapter board engineered for the GE Drive Control series. This component serves as a critical interface module, enabling seamless communication between central control systems and distributed field I/O devices. Designed for high-reliability industrial environments, this board ensures consistent signal processing and relay management for complex automation tasks in power generation, manufacturing, and heavy industrial processing facilities.
Features
Integrated 12-channel relay architecture for high-density signal handling.
Advanced surface-mount technology (SMT) for enhanced component reliability and vibration resistance.
Optimized for rapid DIN-rail mounting in standard industrial control cabinets.
Dual-voltage power design supporting a +5 VDC logic bus and a 28 VDC field-side supply.
Built for wide-range thermal operation, ensuring performance from -30 deg C to +65 deg C.
Applications
This adapter board is primarily utilized within GE drive control systems to manage distributed I/O signals. It is frequently deployed in motor control centers, thermal power generation plants, and mining automation systems where stable signal acquisition and distributed relay actuation are required to prevent system downtime.
Technical Specifications
Model
DS200ADPBG1A
Brand
GE Fanuc
Series
Drive Control
Relay Channels
12
Logic Power
+5 VDC, 6 A
Field Power
28 VDC
Operating Temperature
-30 to +65 deg C
Mounting
DIN-rail
Installation Guidelines
Ensure the control cabinet is powered down before installing or removing the board to prevent electrical damage.
Verify that the DIN-rail is securely mounted and grounded to the cabinet chassis to minimize EMI interference.
Maintain adequate clearance around the module to ensure proper airflow and heat dissipation, especially in high-temperature environments.
Handle with standard ESD-safe practices to protect the surface-mount logic components.
Confirm that both the +5 VDC logic supply and 28 VDC field supply are within nominal operating ranges before system startup.
FAQ
What is the primary function of the DS200ADPBG1A? The DS200ADPBG1A acts as an adapter board for Genius I/O systems, bridging the communication between the controller and field-side devices while managing 12 relay channels.
Is this board compatible with high-vibration environments? Yes, the board utilizes robust SMT construction and is designed for secure DIN-rail mounting, making it suitable for standard industrial cabinets subject to mechanical vibration.
