GE Fanuc VMIVME-7750 VME Single Board Computer

In stock!
  • Part Number: VMIVME-7750
  • Brand: GE Fanuc
  • Type: VME Single Board Computer
  • Country of Origin: USA
  • Barcode:

Additional Specifications

Color / Pattern
  • Green
Communication Protocols
  • Ethernet
  • USB
Controller Design
  • Compact
Tags: Computer , PLC

Product Description

Product Description

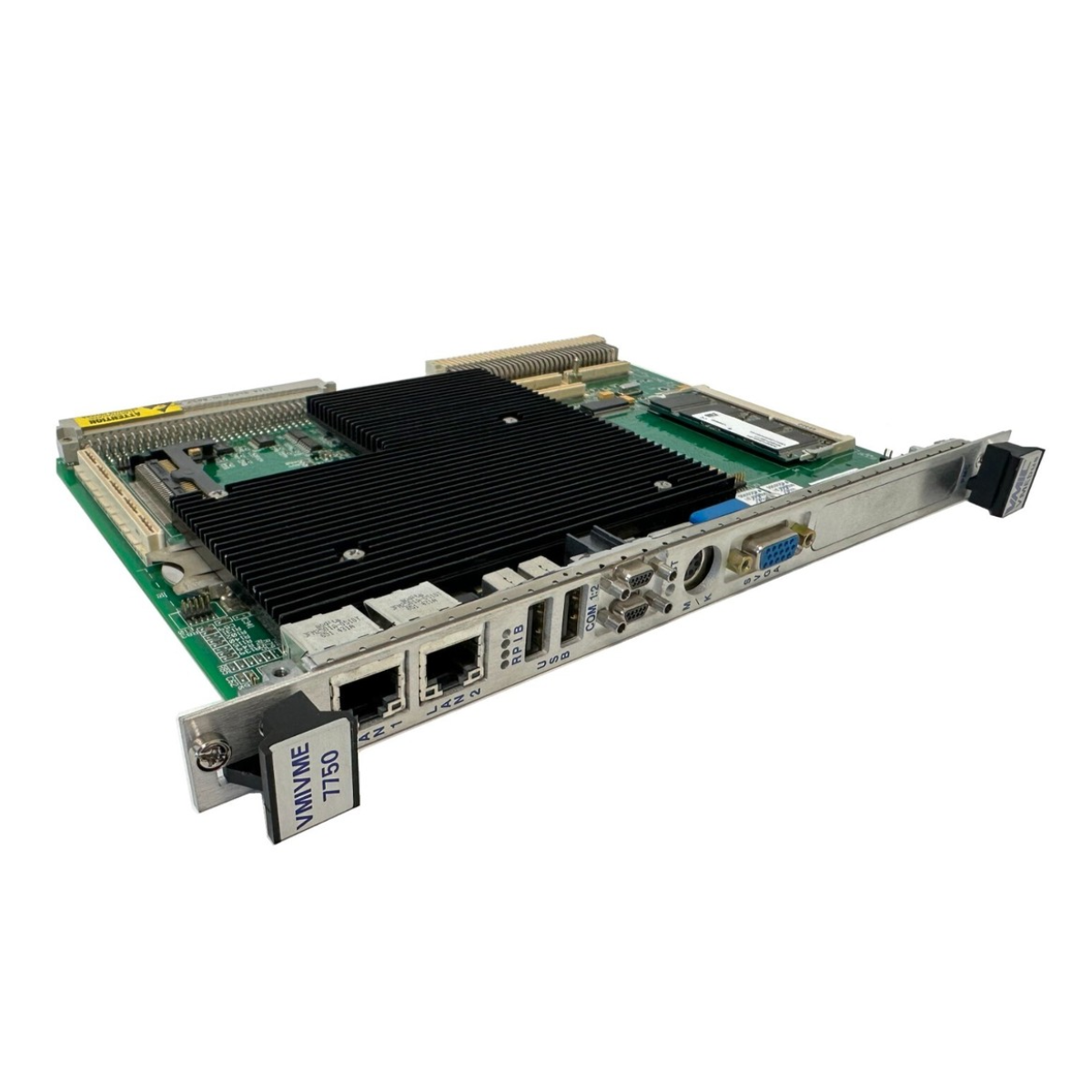

The GE Fanuc VMIVME-7750 is a high-performance VME single board computer based on the Intel® Pentium® III processor. Operating at speeds up to 1.26 GHz with 512 Kbyte advanced transfer cache, it delivers desktop-class processing power in a compact, single-slot Eurocard form factor. This board supports a wide range of embedded and desktop operating systems, making it ideal for both industrial and embedded applications.

Designed for flexibility, the VMIVME-7750 includes up to 512 MB of PC133 SDRAM, an internal AGP SVGA controller with 4 MB display cache, dual 10/100 Mbit Ethernet interfaces, and multiple standard I/O ports. Moreover, it features a transparent PCI-to-VME bridge, allowing seamless integration as a system controller or peripheral CPU in multi-CPU environments.

Key Features & Benefits

  • High-speed Pentium® III processor up to 1.26 GHz with 512 Kbyte cache

  • Up to 512 MB PC133 SDRAM via a single SODIMM for memory-intensive tasks

  • Integrated SVGA controller with 4 MB display cache for graphics applications

  • Dual Ethernet ports support 10BaseT and 100BaseTX connections

  • Remote Ethernet boot capability for flexible system deployment

  • Front-panel PMC expansion site for additional functionality

  • Compatible with Windows XP, VxWorks®, Solaris™, QNX®, LynxOS®, and Linux®

Technical Specifications

Parameter Specification
Processor Intel® Pentium® III, up to 1.26 GHz, 512 Kbyte cache
Memory Up to 512 MB PC133 SDRAM (single SODIMM)
Video AGP SVGA controller, 4 MB display cache
System Bus 133 MHz via Intel® 815E chipset
Ethernet Dual 10/100 Mbit controllers
I/O Ports Two RS232 serial ports, dual USB, keyboard/mouse, IDE, floppy
Expansion Front-panel PMC site
CompactFlash Optional 64 MB to 1 GB bootable storage
Timers Four programmable timers (two 16-bit, two 32-bit)
Watchdog Software-selectable with reset functionality
Non-volatile Memory 32 KB SRAM
Operating Systems Windows XP, VxWorks, QNX, Solaris, LynxOS, Linux
Front Panel VME specification compliant; reset switch, speaker included
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Form Factor Single-slot, Eurocard, passively cooled

Typical Applications

The VMIVME-7750 is ideal for industrial automation, process control, telecommunications, simulation, instrumentation, and automated test systems. For instance, it can control factory automation equipment, acquire and process sensor data, or serve as a high-performance CPU in multi-processor VME systems. Its embedded features support reliable operation in harsh industrial environments.

FAQ


Q1: Can the VMIVME-7750 support multiple operating systems?
A1: Yes, it supports Windows XP, VxWorks, QNX, Solaris, LynxOS, and Linux for flexible deployment.

Q2: How much memory can be installed on the board?
A2: The board accepts up to 512 MB PC133 SDRAM through a single SODIMM slot.

Q3: Does it support remote booting?
A3: Yes, the VMIVME-7750 supports remote Ethernet boot for easy system management.

Q4: What expansion options are available?
A4: A front-panel PMC site allows additional modules and custom expansion.

Q5: What are typical industrial applications?
A5: It is widely used in factory automation, process control, instrumentation, and data acquisition systems.
