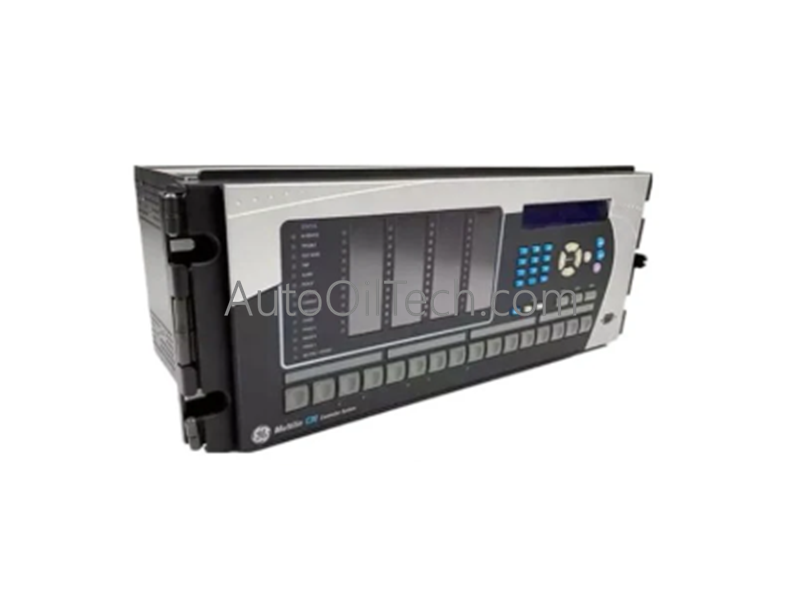

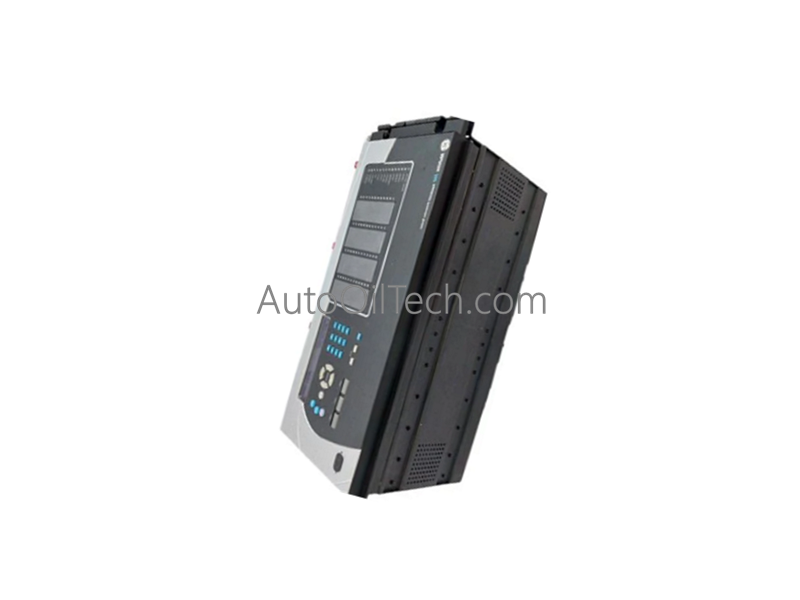

GE Fanuc T60 Protection Relays

Configured for comprehensive transformer protection and asset monitoring in substation automation networks, the GE Multilin T60 (T60 Transformer Protection System) provides direct physical/electrical execution. This modular device executes high-speed processing calculations to safeguard autotransformers, large power transformers, and reactors against multi-zone insulation breakdown and phase faults.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Process Bus Redundancy

The protection device relies on three independent Ethernet ports that support high-density process bus networking via IEC 61850-9-2LE and Hardfiber standards. By enforcing rigorous firmware flash compatibility across all internal signal cards, the system streams sampled values from remote merging units with zero data lag. Embedded IEEE 1588 Precision Time Protocol (PTP) aligns local and remote current phasors within 1 microsecond boundaries, ensuring that five-zone distance, over-fluxing, and ground differential elements calculate trip metrics deterministically without error during severe through-fault events.

Frequently Asked Questions

Q: How does the T60 differentiate between a true internal transformer fault and transformer core inrush current?

A: The relay uses an adaptive 2nd harmonic restraint algorithm combined with an independent harmonic detection element. When a transformer is energized, the logic analyzes the harmonic content of the input waveform; if the 2nd harmonic exceeds the setpoint, it blocks the differential element to prevent false trips from inrush current.

Q: Can the T60 monitor the physical aging and thermal health of the transformer insulation?

A: Yes. The relay software contains transformer asset monitoring algorithms that track total loss-of-life metrics. By integrating ambient temperature values with winding current data, the system calculates the dynamic aging factor and identifies the internal hottest-spot temperature of the insulation.
