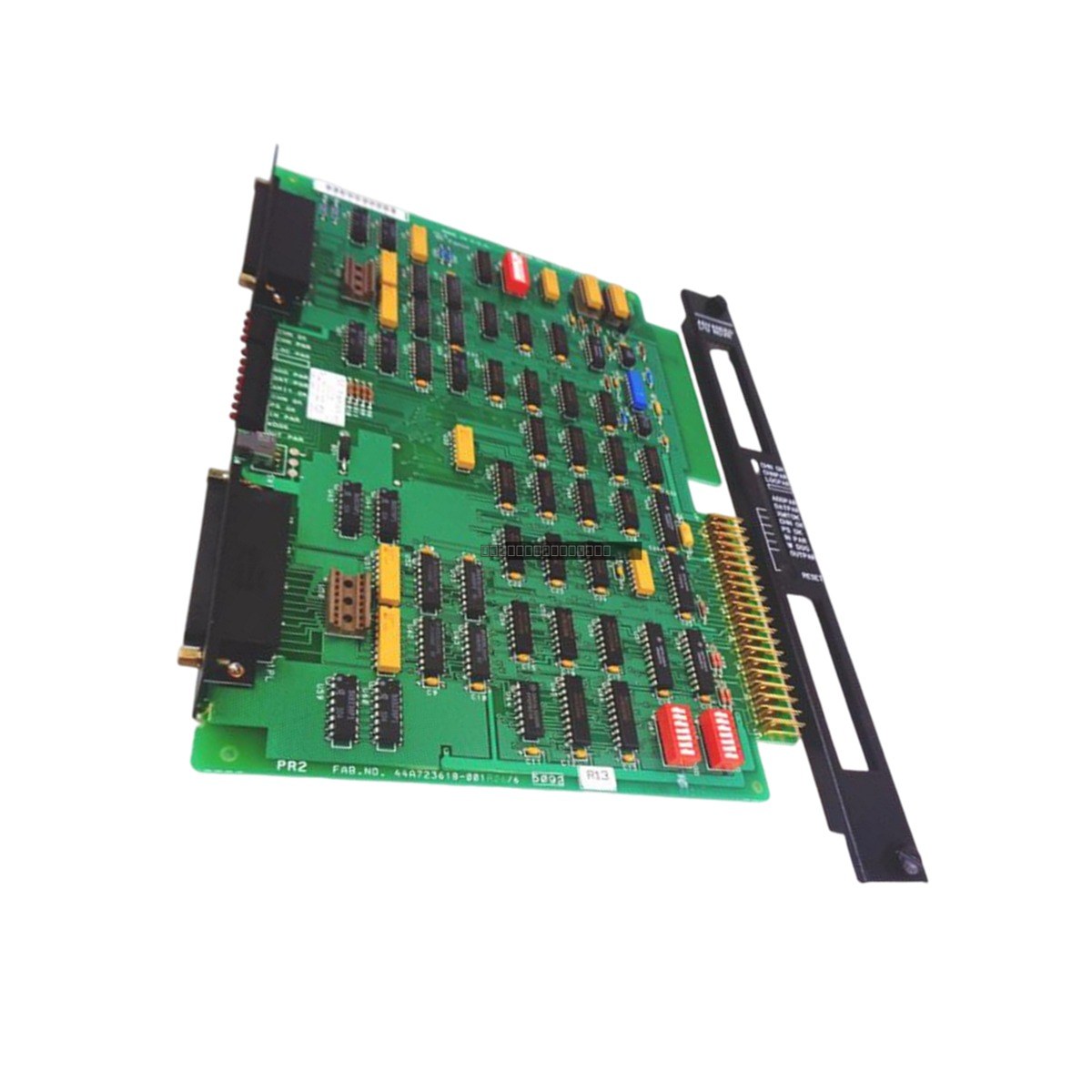

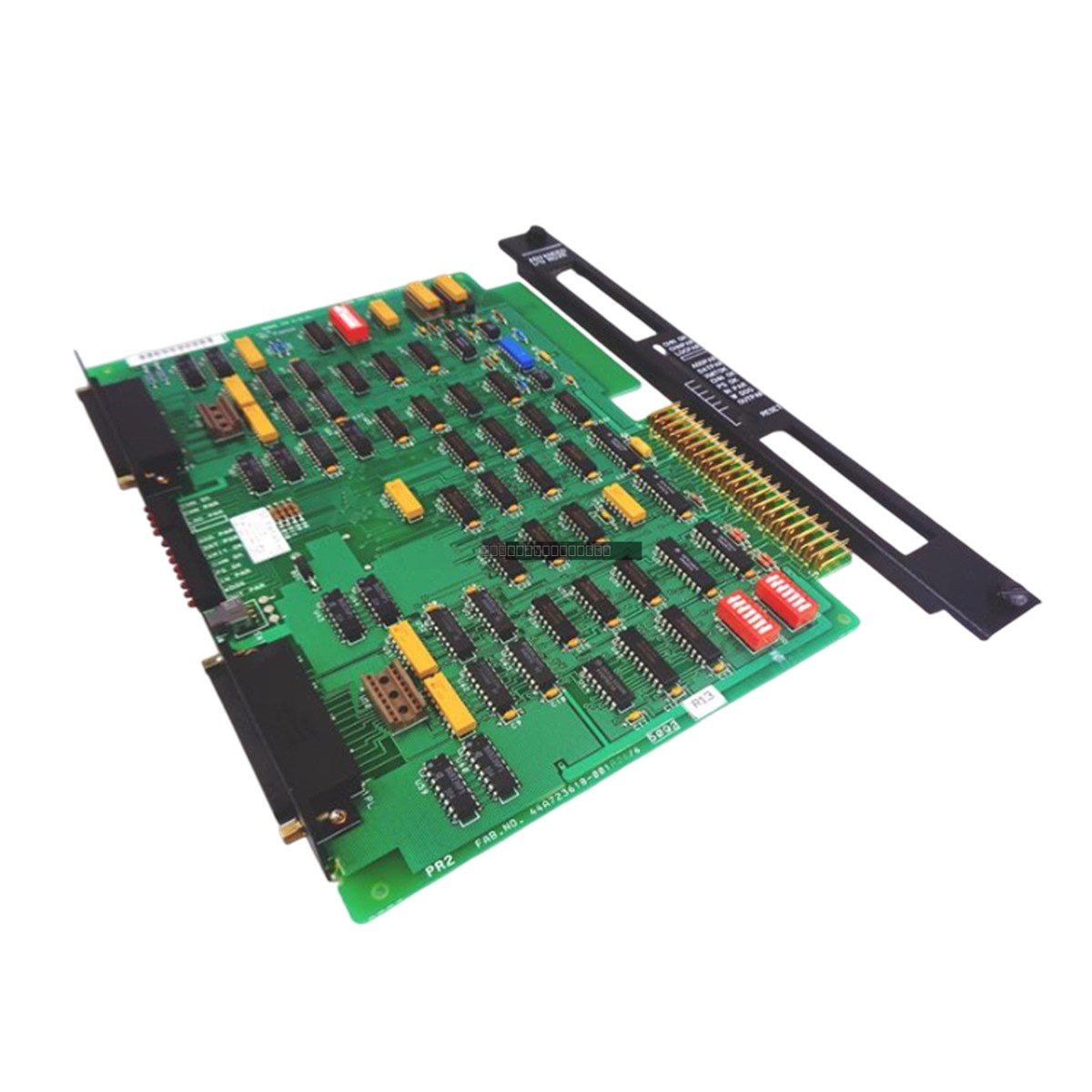

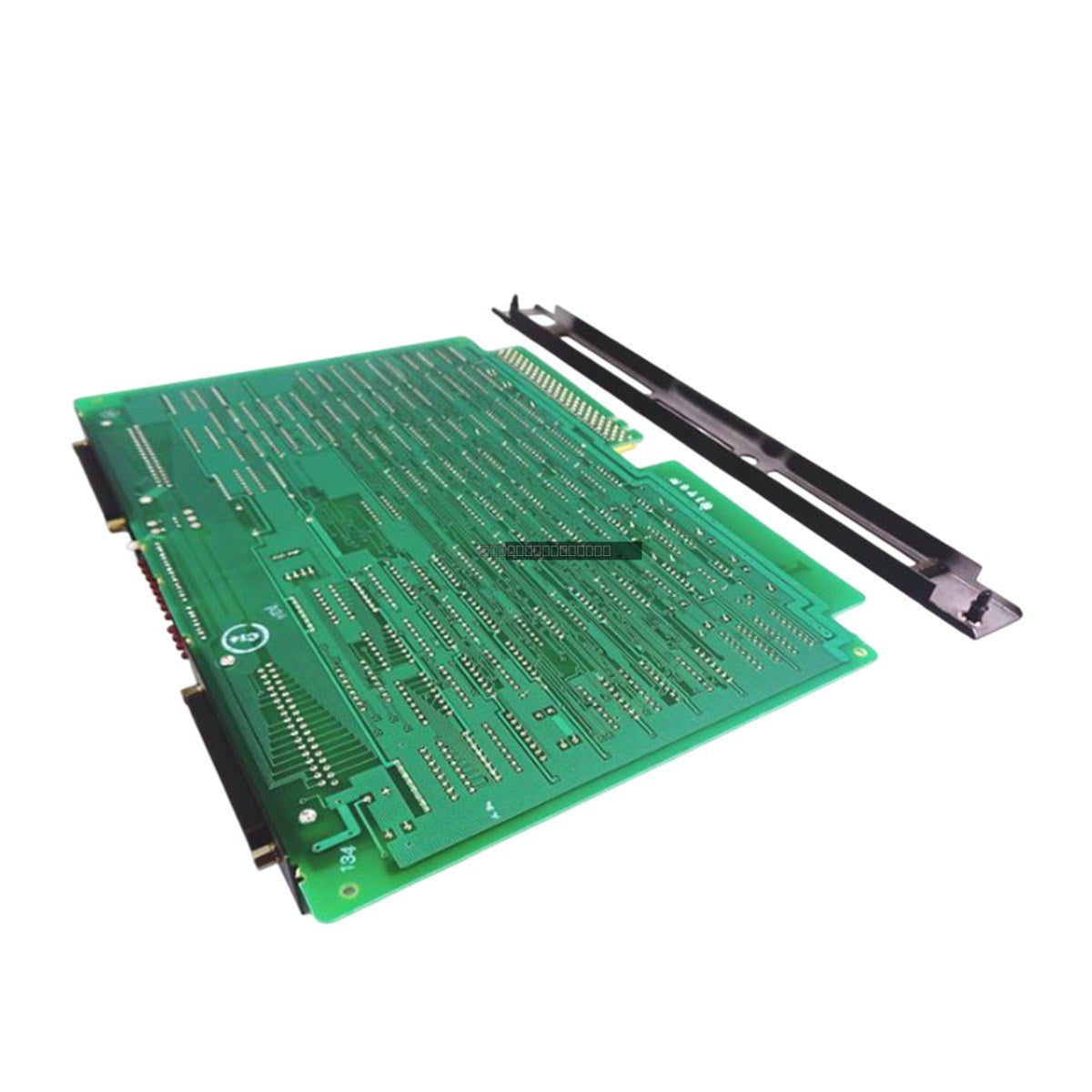

The GE Fanuc IC600BF830 is an advanced I/O receiver module designed for integration within Series Six programmable logic controller (PLC) systems. This module serves as a vital component for managing communication and signal synchronization across distributed I/O rack configurations. By facilitating reliable data exchange between racks, the IC600BF830 helps maintain system stability and reduces propagation delays in demanding industrial environments, such as chemical processing, steel manufacturing, and oil refining.
Features
System Synchronization: Engineered to provide robust signal integrity and data bus stabilization across multi-rack PLC topologies.
Diagnostic Monitoring: Features an integrated array of 12 status LEDs for real-time monitoring of communication health, module status, and power bus verification.
Manual Configuration: Equipped with an 8-position DIP switch bank for hardware-level addressing, eliminating the need for external software configuration tools.
Connectivity: Utilizes dual 37-pin D-type connectors to ensure secure and reliable upstream and downstream communication links.
Rack Logic: Includes two resistor +PAC sockets to define chassis sequence and placement, ensuring accurate system identification.
Technical Specifications
Model
IC600BF830
Brand
GE Fanuc
Product Line
Series Six
Power Draw
1.2 Amps
Power Source
Backplane Bus
Slot Assignment
Leftmost slot (I/O rack)
Operating Temperature
0 to 60 deg C
Storage Temperature
0 to 70 deg C
Installation Guidelines
Power Safety: Always disconnect power from the PLC rack before inserting or removing the module to prevent electrical damage.
Slot Placement: The module is designed for the leftmost slot of the Series Six I/O rack. Ensure the backplane connector is fully seated.
Addressing: Configure the 8-position DIP switches according to your system's specific addressing requirements prior to final installation.
Grounding: Ensure the rack chassis is properly grounded to mitigate EMI and maintain signal integrity.
Environment: Maintain the operating environment within the specified 0 to 60 deg C range to ensure long-term reliability.
FAQ
What is the primary function of the IC600BF830?
The IC600BF830 acts as an I/O receiver module for GE Series Six PLC systems, enabling communication and data synchronization between multiple I/O racks.
How do I configure the module address?
The module uses an onboard 8-position DIP switch bank, allowing for manual hardware addressing without requiring specialized software.
Where should this module be installed in the rack?
This module is specifically designed for the leftmost slot of the Series Six I/O rack.
