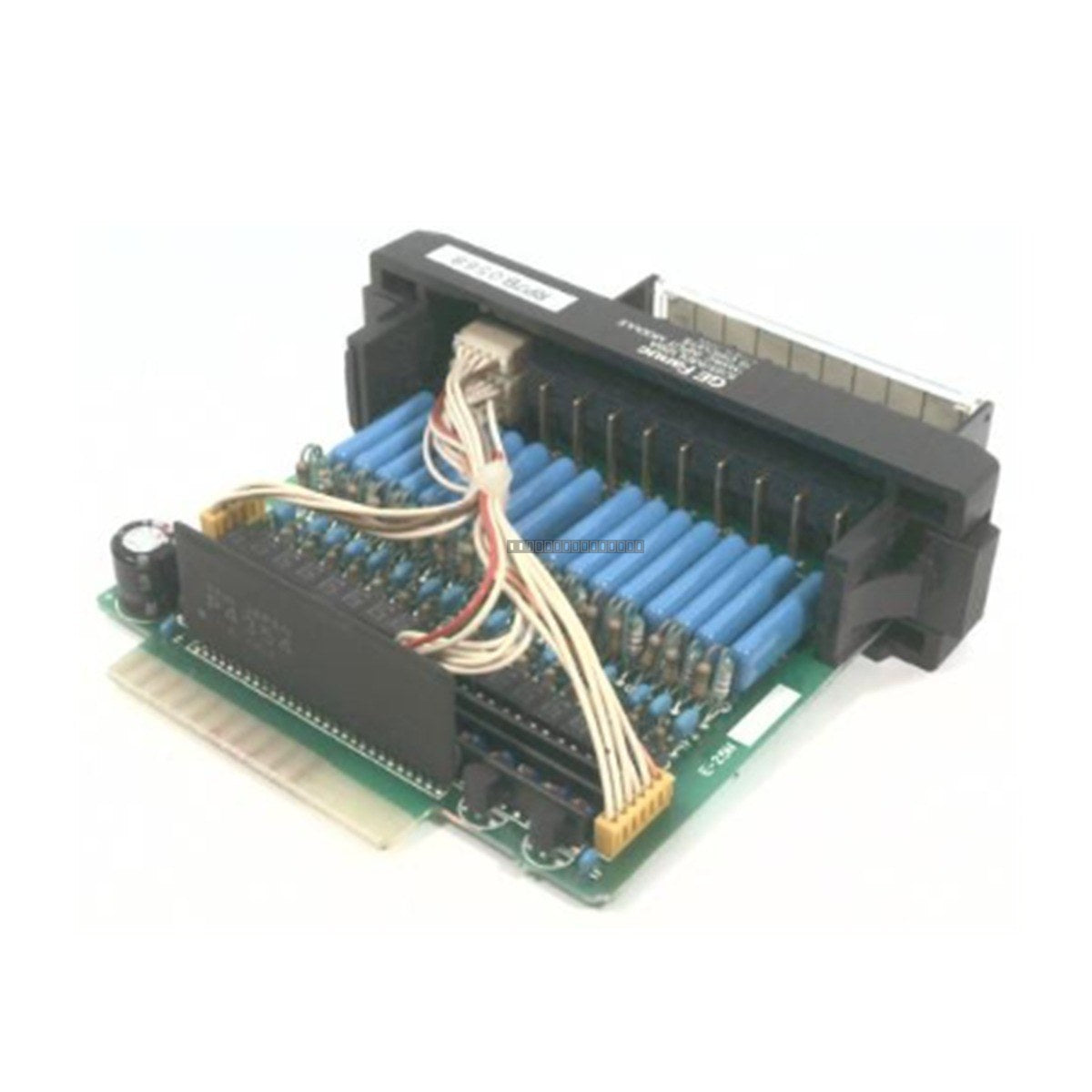

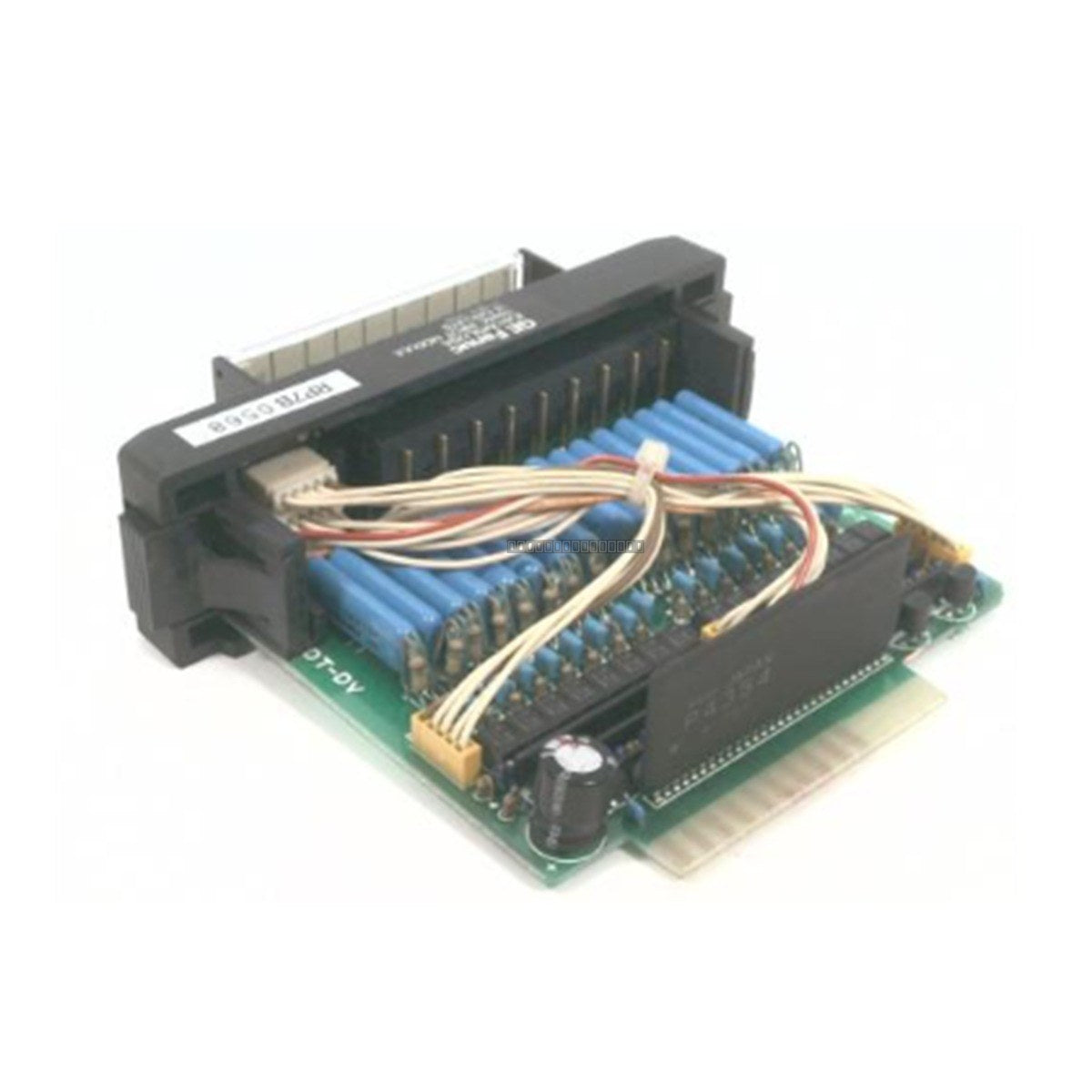

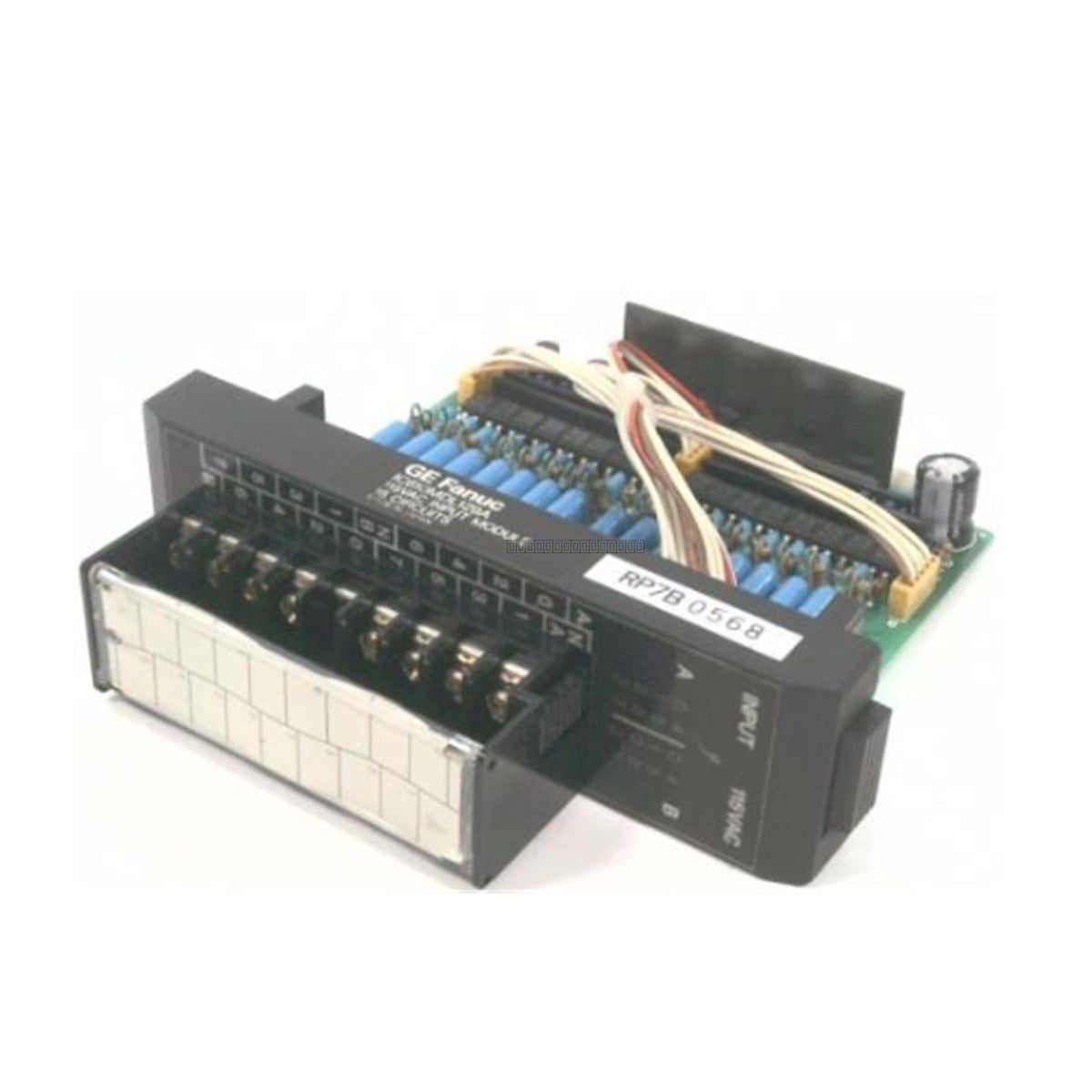

The IC610MDL129 is a 16-channel discrete AC input module designed for integration within the legacy GE Fanuc Series One programmable controller platform. It serves as a robust interface for processing field signals from devices such as pushbuttons, selector switches, and relay contacts in demanding industrial environments. By converting high-voltage field signals into logic-level data, this module ensures reliable signal processing and system availability. The design features a field-replaceable terminal block to streamline maintenance and reduce mean time to repair (MTTR).
Features
16-channel discrete AC input configuration.
Two isolated groups of eight channels each, allowing for dual power source compatibility.
Integrated logic-side status indicators for real-time diagnostic feedback.
Removable terminal board for simplified field wiring and maintenance.
Optimized for Series One backplane integration in both primary and expansion rack configurations.
Applications
This module is suitable for legacy automation control systems in industries such as water treatment, mining operations, and assembly manufacturing where 115 VAC discrete signal monitoring is required.
Technical Specifications
Model
IC610MDL129
Brand
GE Fanuc
Product Line
Series One
Module Type
AC Input Module
Number of Channels
16 (2 groups of 8)
Nominal Input Voltage
115 VAC
Operating Voltage Range
80 to 132 VAC
Input Current
14.5 mA at 60 Hz
On-Level Voltage
Above 80 VAC
Off-Level Voltage
Below 15 VAC
Response Time (Off-to-On)
5 to 50 ms
Response Time (On-to-Off)
5 to 60 ms
Backplane Power Consumption
64 mA at 9 VDC
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system power is disconnected before installing or removing the module from the Series One backplane.
Verify that the input voltage levels match the module specifications (80-132 VAC) to prevent damage.
Use the removable terminal block for field wiring; ensure all connections are secure and properly torqued.
Maintain proper ventilation within the enclosure to ensure the module operates within its specified 0 to 60 deg C temperature range.
Route field wiring away from high-voltage AC lines or high-EMI sources to minimize signal interference.
FAQ
Can this module be used in an expansion rack? Yes, the IC610MDL129 is compatible with Series One expansion racks, supporting up to 5 modules in a 5-slot rack or 10 modules in a 10-slot rack.
What is the isolation configuration of this module? The module features 16 input circuits divided into two isolated groups of eight, allowing the module to monitor inputs from two different power sources simultaneously.
