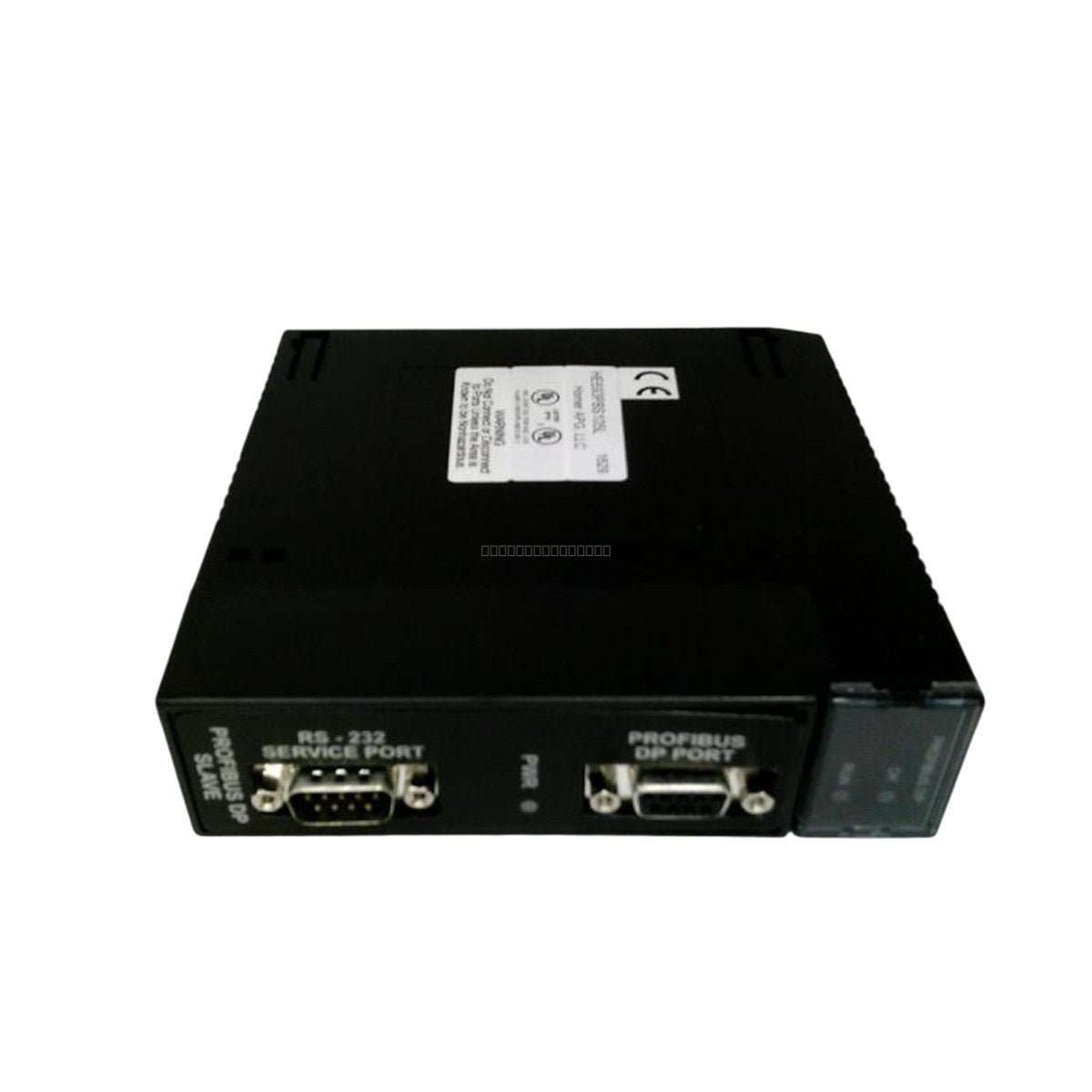

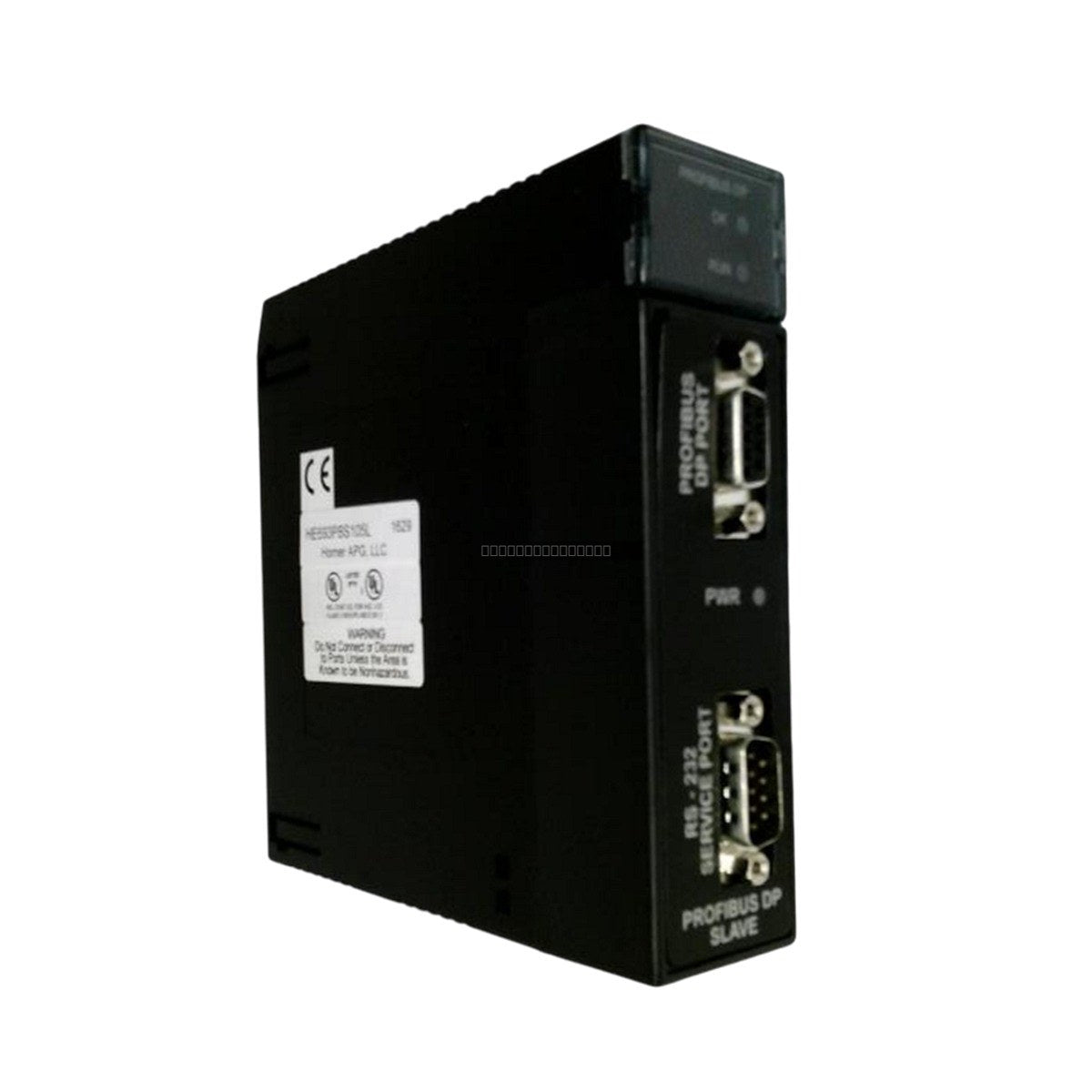

General Electric HE693PBS105 Series 90-30 Profibus DP Slave Network Module

Description

The HE693PBS105 is a dedicated Profibus DP slave communication module designed for the General Electric Series 90-30 PLC platform. This module enables seamless integration of the PLC into a Profibus DP network, acting as a slave device to facilitate data exchange with a Profibus master. It is engineered to provide robust, isolated communication, ensuring reliable performance in demanding industrial environments.

Features

• Profibus DP Slave functionality for Series 90-30 PLC racks.
• Supports a wide range of baud rates from 9.6 kbps up to 12 Mbps.
• Supports up to 32 devices per segment without repeaters, expandable to 64 devices with repeaters.
• Integrated 9-pin D-sub connector for standard Profibus DP network cabling.
• Includes an RS-232 interface for configuration and diagnostic monitoring.
• Provides approximately 1500 VAC isolation between field and logic circuits to prevent ground loops and protect against voltage spikes.

Applications

• Aluminum smelting: Reliable distributed control for plant-wide automation.
• Material handling: Coordination of conveyor systems, cranes, and dispatching equipment.
• Pump and valve control: Integration of electric pumps and automated control valves.
• Automated welding: Synchronization of robotic welding tongs and arc welding systems.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
• Seat the module firmly into the designated Series 90-30 I/O rack slot and secure it using the integrated locking mechanism.
• Use shielded Profibus-rated cabling for the DP port to minimize EMI interference.
• Route communication cables away from high-voltage power lines and sources of electromagnetic noise.
• Verify that the module is correctly configured using the appropriate software (e.g., VersaPro 1.10 or higher) before initiating network communication.

FAQs

What is the primary function of the HE693PBS105?

The HE693PBS105 acts as a Profibus DP slave module for the GE Series 90-30 PLC, allowing it to communicate as a slave device within a larger Profibus network.

What baud rates are supported by this module?

The module supports standard Profibus baud rates including 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, and 12M.

Is this module compatible with all Profibus types?

No, it is specifically designed for Profibus DP (Decentralized Peripherals) slave operation and does not support Profibus FMS or PA protocols.

What software is required for setup?

Configuration of the HE693PBS105 typically requires VersaPro software, version 1.10 or higher.
