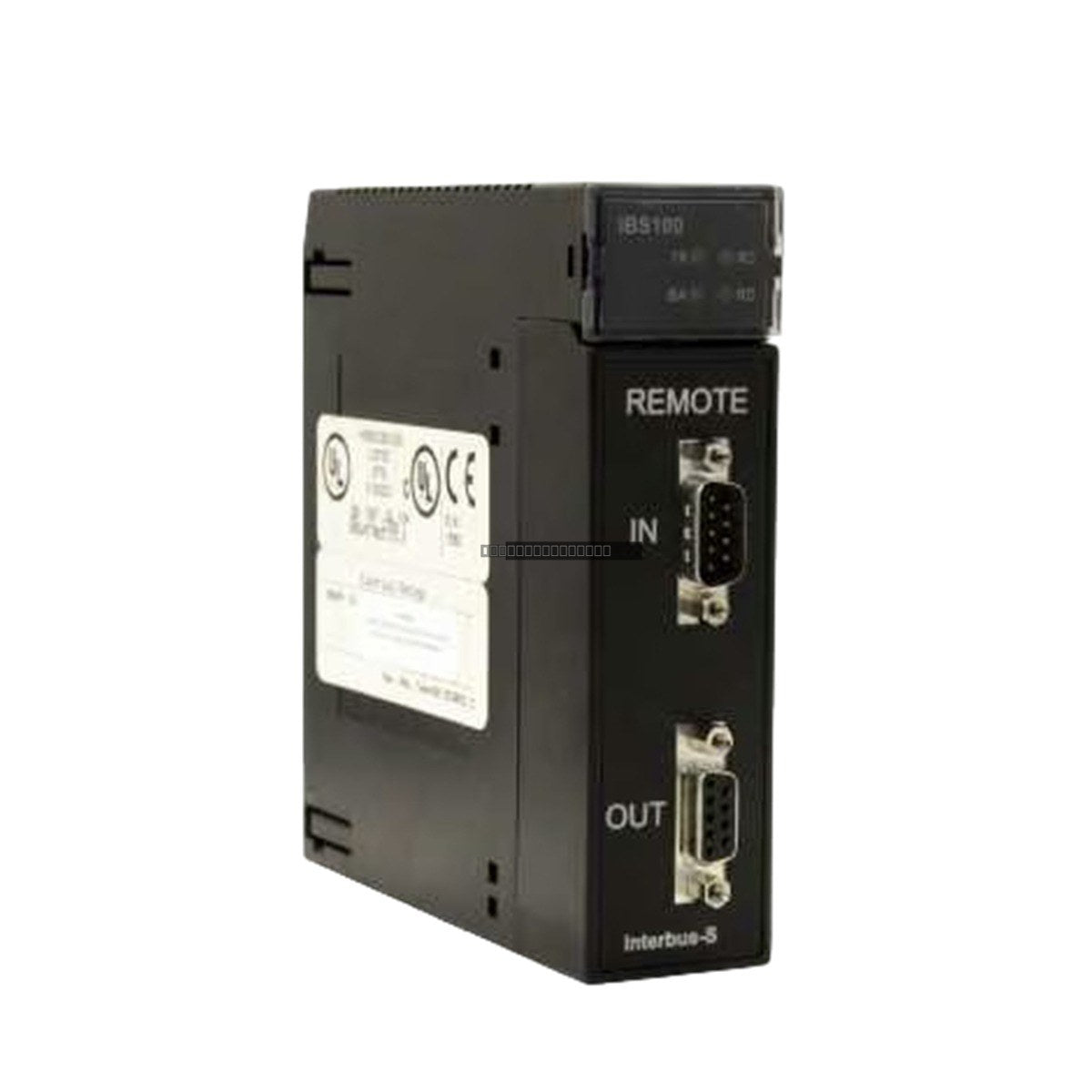

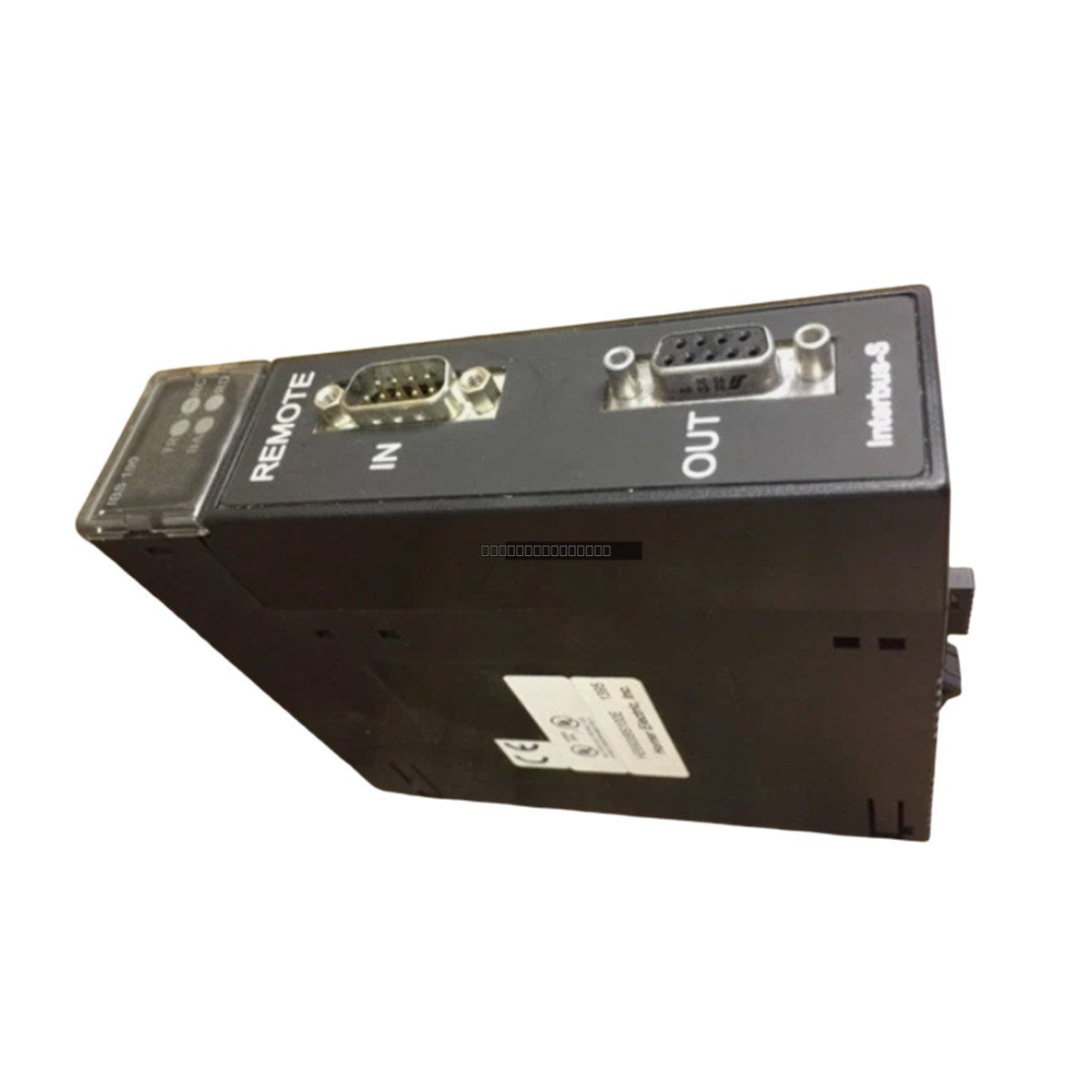

The General Electric HE693IBS100 is an Interbus-S Slave Module designed for the Series 90-30 PLC platform. This interface unit facilitates communication between the GE 90-30 controller and an Interbus-S fieldbus network, acting as a slave device to exchange data with a master controller. It supports the transmission of up to 64 words of data, providing reliable integration for distributed I/O and remote automation components within the Interbus-S ecosystem.
Features
Designed for seamless integration with GE Series 90-30 PLC racks.
Supports up to 64 words of data exchange.
Fixed baud rate of 500 kbit/s for consistent network performance.
1500 V ac isolation to protect against electrical noise and surges.
Standard 9-pin D-sub female interface for fieldbus connectivity.
Technical Specifications
Product Model
HE693IBS100
Module Type
Interbus-S Slave Module
Rack Supply Voltage
24 V dc
Current Consumption
120 mA
Baud Rate
500 kbit/s (fixed)
Interface Connector
9-pin D-sub female
Isolation
1500 V ac
Operating Temperature
0 degC to +60 degC
Storage Temperature
-40 degC to +85 degC
Humidity
5% to 95% RH (non-condensing)
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into an available slot in the Series 90-30 rack, ensuring proper alignment with the backplane connector.
Secure the module using the built-in locking tabs or screws to ensure a stable mechanical connection.
Use a shielded 9-pin D-sub cable for the Interbus-S connection to minimize EMI interference.
Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.
FAQ
What is the primary function of the HE693IBS100?
The HE693IBS100 serves as an Interbus-S slave interface, allowing a GE Series 90-30 PLC to communicate as a slave node on an Interbus-S fieldbus network.
Can the baud rate be adjusted on this module?
No, the HE693IBS100 operates at a fixed baud rate of 500 kbit/s.
Is this module hot-swappable?
It is recommended to power down the PLC rack before inserting or removing any I/O module to prevent potential damage to the backplane or module electronics.
