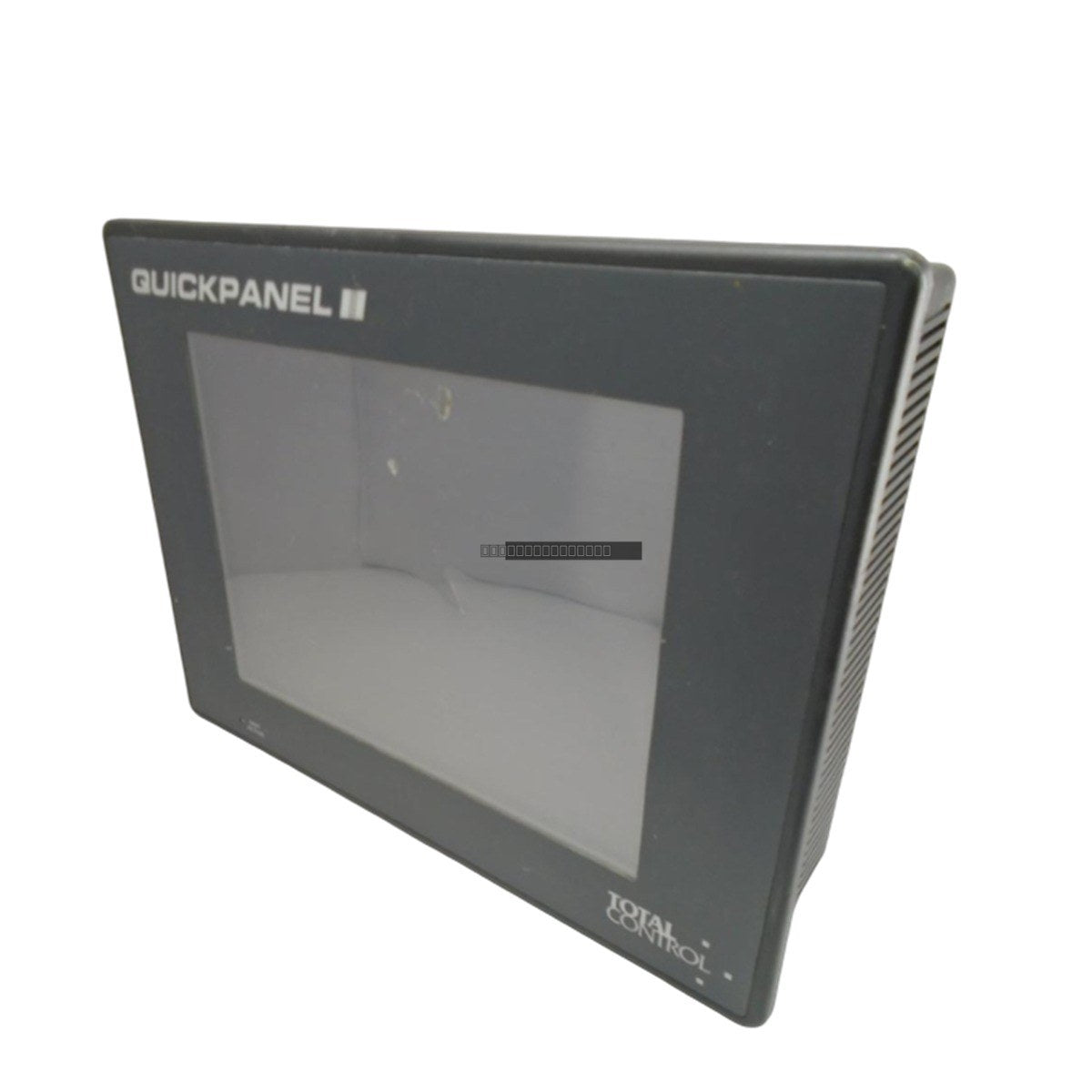

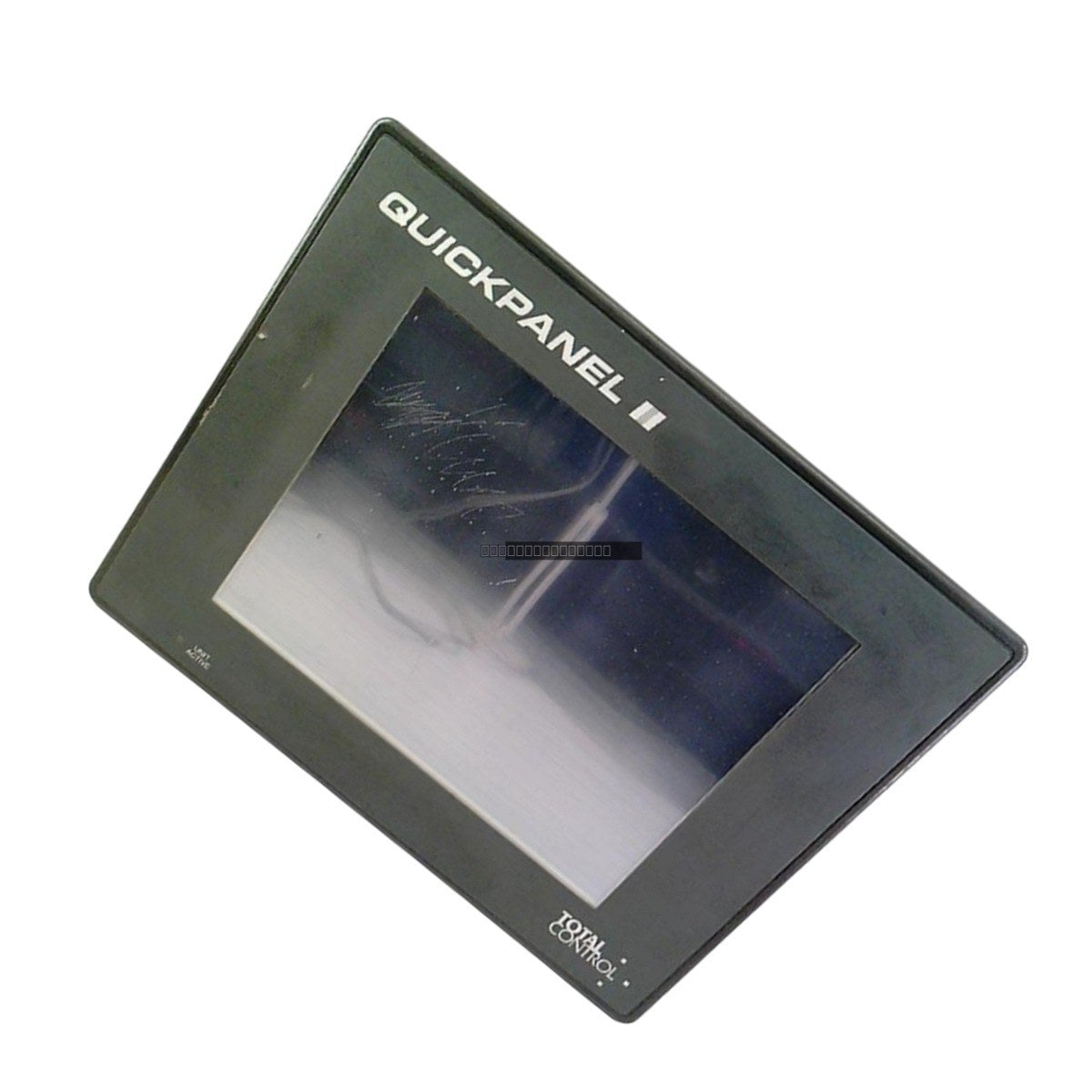

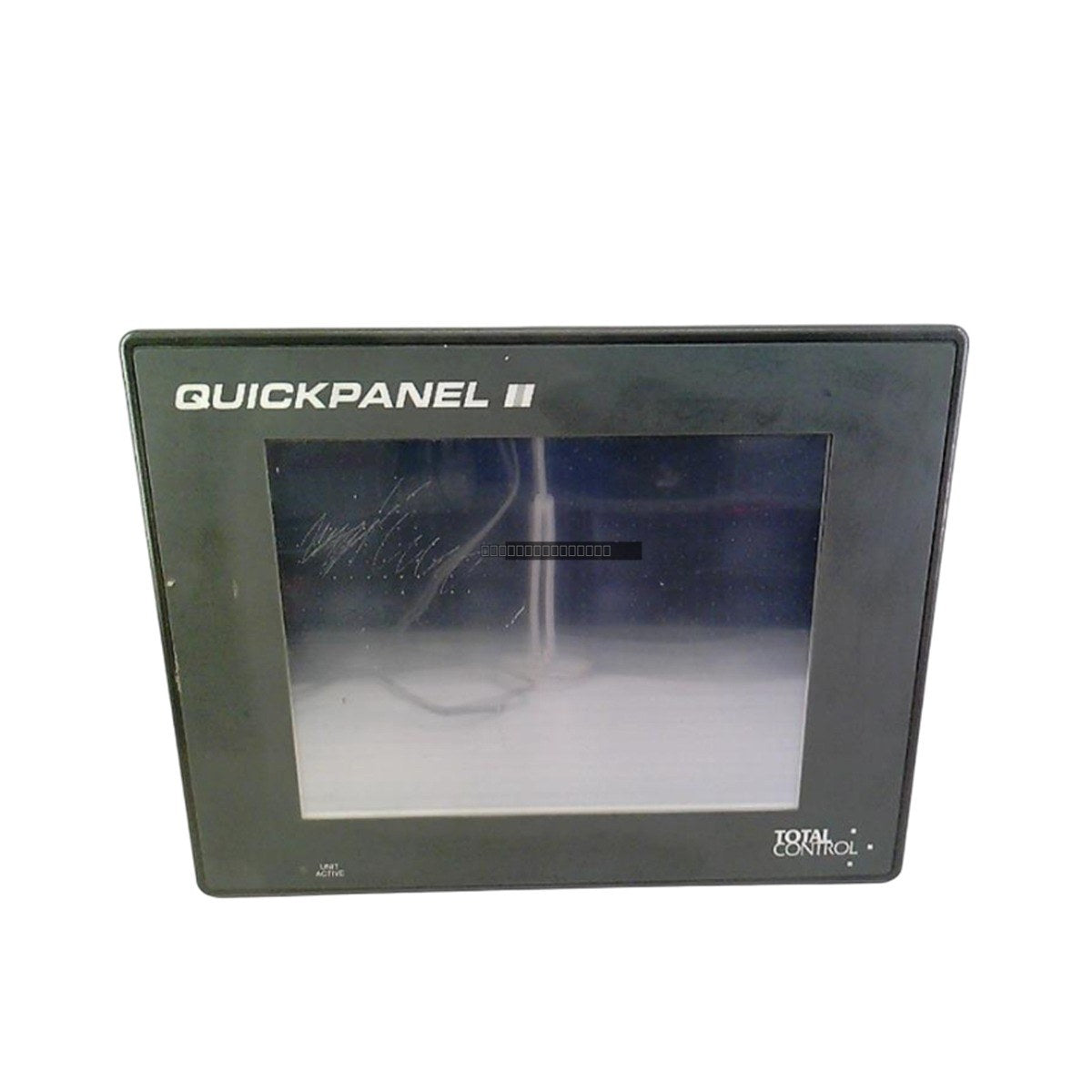

The GE Fanuc QPI2D100L2P is a high-reliability industrial operator terminal engineered for machine-level control and data visualization. Programmed via QuickDesigner Version 3.7, this Human Machine Interface (HMI) coordinates data flows between operators and machine networks within continuous-process applications such as metal casting, mining extraction, and chemical processing. The robust construction provides a localized control hub that withstands the environmental stressors of heavy factory floors, minimizing process blindness and reducing operational downtime.
Features
10.4-inch monochrome LCD matrix display for clear data visualization.
Passive, natural air convection cooling architecture to protect internal components from dust, oil mist, and particulates.
Integrated serial communication port (SI/O) for multi-protocol PLC networking.
Dedicated download interface port for project updates and system maintenance.
20-millisecond power dropout tolerance to safeguard active memory during voltage dips or phase shifts.
NEMA 4X/12 and IP65 rated enclosure for harsh industrial environments.
Applications
This HMI is designed for demanding industrial environments, including metal casting, mining, chemical processing, and general manufacturing lines where localized control and immediate fault diagnostics are required.
Technical Specifications
Model
QPI2D100L2P
Brand
GE Fanuc Total Control
Product Family
QuickPanel
Display
10.4-inch Monochrome LCD
Input Voltage
24 VDC (20.4 to 27.6 VDC range)
Power Consumption
50 VA
Dropout Immunity
20 ms
Software
QuickDesigner Version 3.7
Operating Temperature
0 to 50 deg C
Storage Temperature
-10 to 60 deg C
Humidity
30 to 85 percent (non-condensing)
Enclosure Rating
NEMA 4X/12, IP65
Installation Guidelines
Ensure the unit is mounted in a panel cutout that meets the specified dimensions to maintain the NEMA/IP seal integrity.
Use shielded communication cables for serial connections to minimize EMI interference from high-voltage equipment.
Verify that the power supply is stable and within the 20.4 to 27.6 VDC range before applying power.
Maintain adequate clearance around the unit to allow for natural air convection cooling.
Ensure the unit is properly grounded to the cabinet chassis to prevent electrical noise and potential damage from static discharge.
FAQ
What software is required to program the QPI2D100L2P?
This unit requires QuickDesigner Version 3.7 for project development and system configuration.
Does this unit support color graphics?
No, the QPI2D100L2P features a monochrome LCD matrix display.
What is the power requirement for this HMI?
The unit operates on 24 VDC, with an acceptable operating window of 20.4 to 27.6 VDC.
