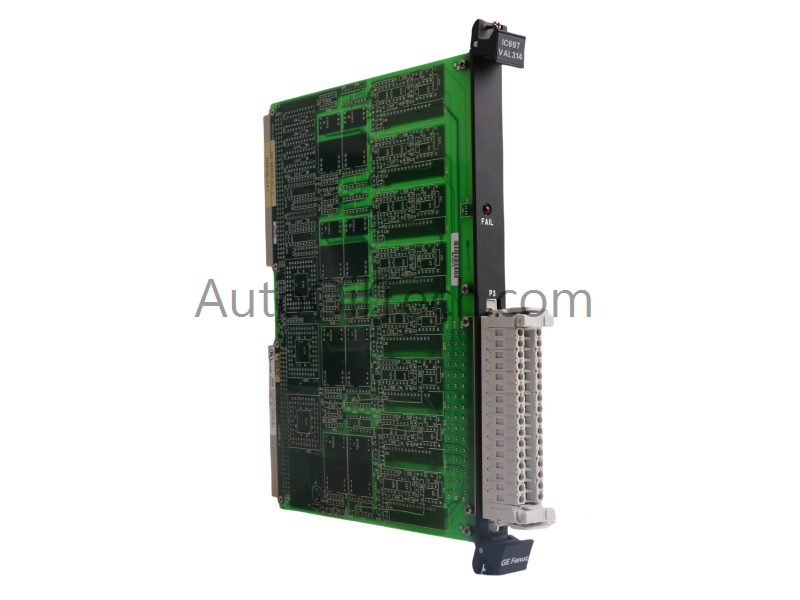

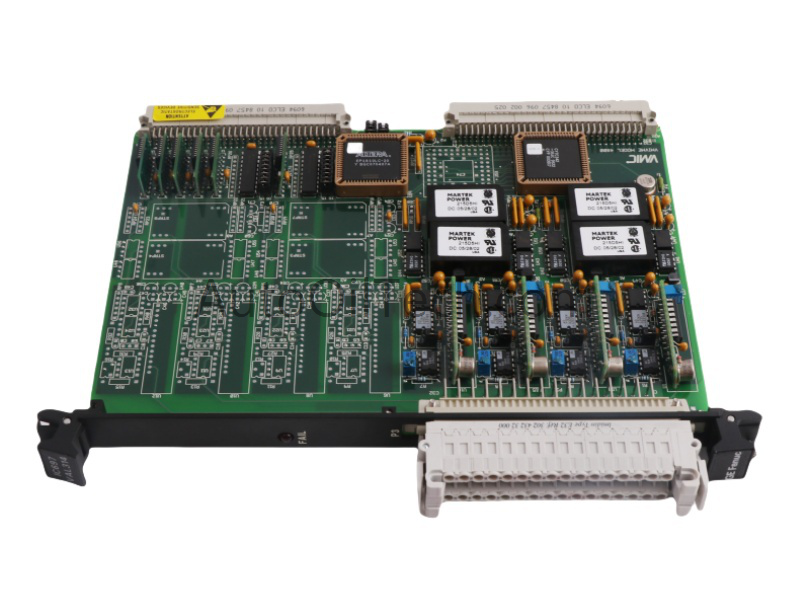

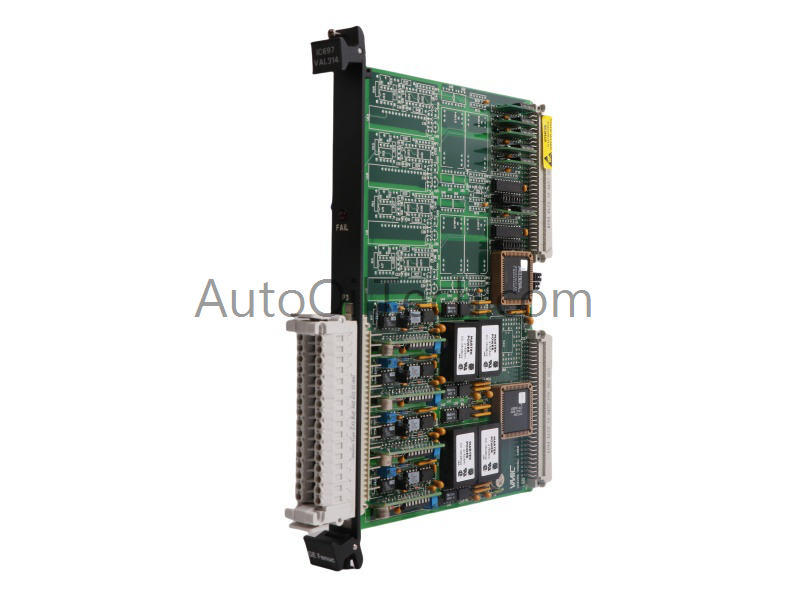

The IC697VAL314 is a high-resolution analog-to-digital converter board developed for GE Fanuc’s Series 90-70 PLC systems. Designed to convert analog signals into digital format, it features a 12-bit ADC and supports input ranges from ±50 mV to ±10 VDC. This module is ideal for industrial applications requiring accurate signal processing and real-time monitoring.
Key Specifications
Parameter
Details
Model Number
IC697VAL314
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Converter Board
ADC Resolution
12-bit
Input Range
±50 mV to ±10 VDC
Overvoltage Protection
Yes
Isolation Rating
1000 VDC
Input Filtering
40 Hz factory-configured
LED Indicators
Input status
VMEbus Space
128 bytes
Installation
Jumper-configurable, 128-byte boundary
Calibration
May be required for specific applications
Maintenance
Periodic checks recommended
Dimensions (W×H×D)
2.1 × 20.2 × 26.1 cm
Weight
0.42 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Converts analog signals to digital with 12-bit resolution
Supports ±50 mV to ±10 VDC input ranges
Built-in overvoltage protection and EMI filtering
Opto-isolated for enhanced electrical safety
Auto-scanning on power-up with no software required
Jumper-configurable for flexible VMEbus installation
