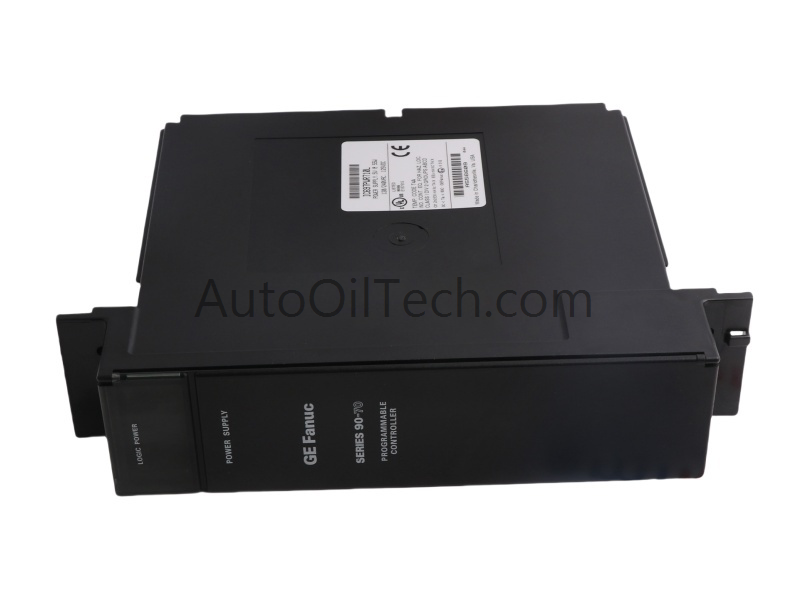

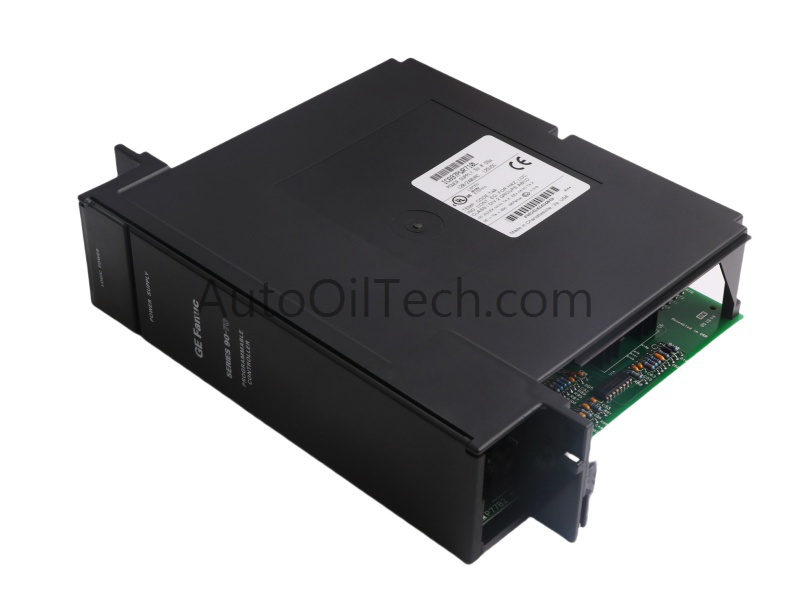

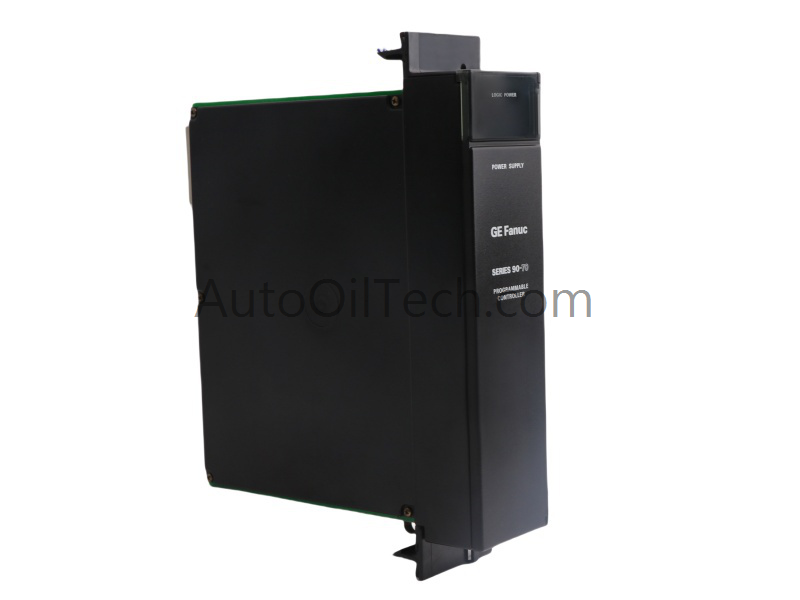

The IC697PWR710 is a converter board-style power supply module designed for GE Fanuc’s Series 90-70 PLC systems. It installs in the leftmost slot of any standard IC697 or VME integrator rack, delivering regulated backplane power to connected modules.
Key Specifications
Parameter
Details
Model Number
IC697PWR710
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Converter Board
Input Voltage Range
90–264 VAC @ 47–63 Hz / 100–150 VDC
Max Input Power
90 W
Inrush Current
3 A (typical)
Output Voltage
5.1 VDC nominal (4.90–5.25 VDC range)
Output Power
Up to 56 W
Overvoltage Protection
Clamps at 6.2 VDC
Overcurrent Protection
Limits to 12 A
Ride-through Time
21 ms (AC input loss)
Power Factor
>0.95 (active correction)
Dimensions (W×H×D)
6.5 × 21.8 × 29.3 cm
Weight
1.02 kg
Grounding
AWG #12 / 3.3 mm² to earth ground
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Wide input range supports both AC and DC sources.
Overvoltage and overcurrent protection safeguard connected modules.
Active power factor correction improves energy efficiency.
21 ms ride-through ensures stability during brief power loss.
Noise immunity and dedicated grounding enhance system reliability.
