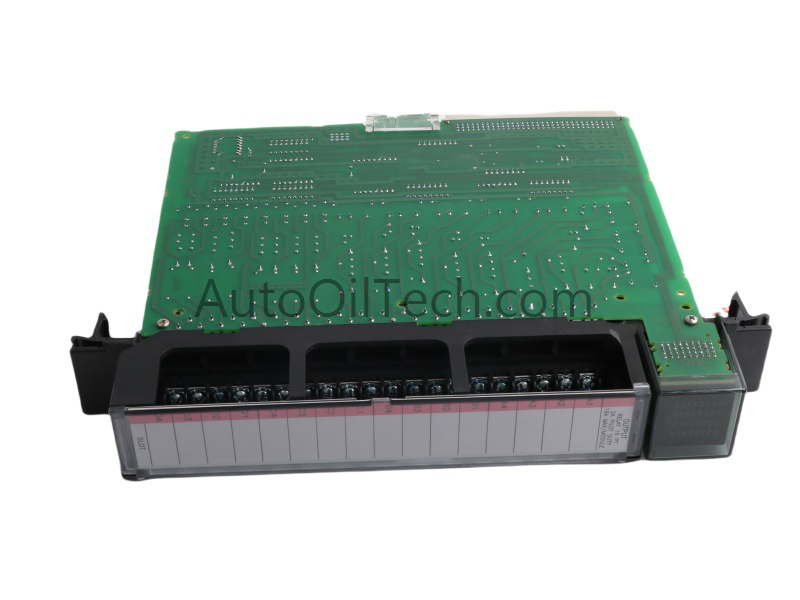

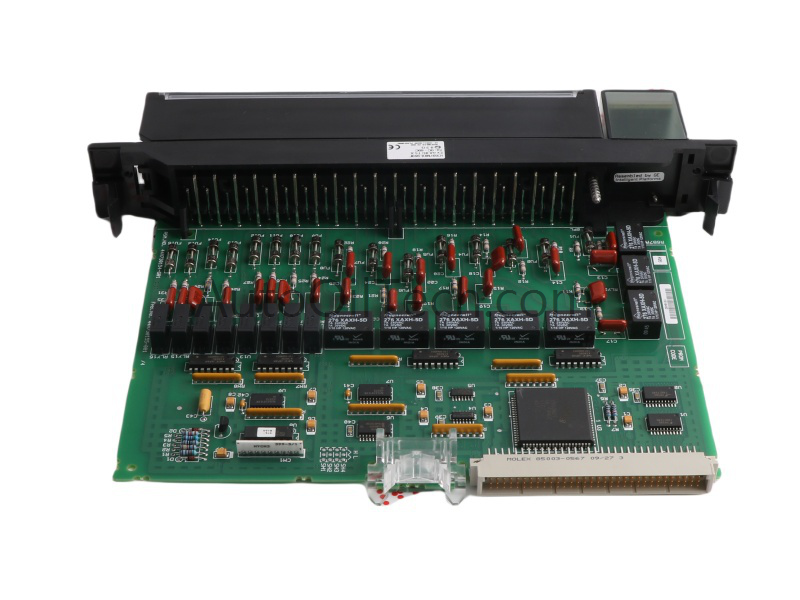

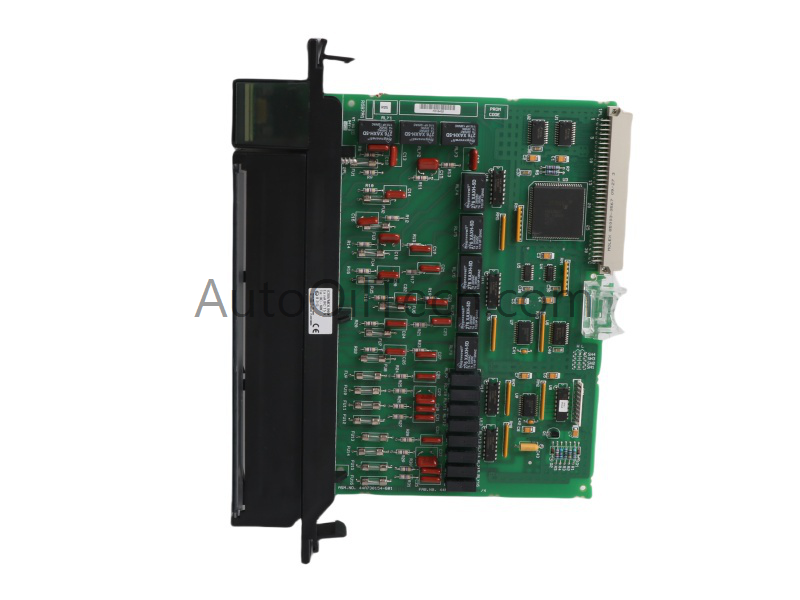

The IC697MDL940 is a 16-point relay output module engineered for GE Fanuc’s Series 90-70 PLC systems. It features 8 Form C and 8 Form A contact outputs, divided into two groups of four, supporting both AC and DC loads for flexible industrial control applications.
Key Specifications
Parameter
Details
Model Number
IC697MDL940
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Relay Output
Output Channels
16 (8 Form C, 8 Form A)
Voltage Range (AC)
120/240 VAC
Voltage Range (DC)
5/24/125 VDC
Max Load Current
2.0 A (5–265 VAC / 5–30 VDC), 0.2 A (31–150 VDC Form A only)
Min Load Current
10 mA
Max Power
480 VA (AC), 60 W (DC)
Response Time
≤10 ms
Switching Frequency
20 cycles/min (inductive loads)
Contact Material
Silver alloy
Contact Resistance
≤0.2 Ω
Mechanical Life
20 million operations
Electrical Life
1 million operations
Protection
3 A fuse + snubber per channel
Isolation Rating
1500 V
Dimensions (W×H×D)
4 × 22 × 29.1 cm
Weight
0.66 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
Supports both AC and DC loads with Form A and Form C contact configurations.
Built-in snubber circuits and fuses protect each output channel.
High mechanical and electrical life ensures long-term reliability.
Fast switching response suitable for time-sensitive operations.
1500 V isolation enhances safety in high-voltage environments.
