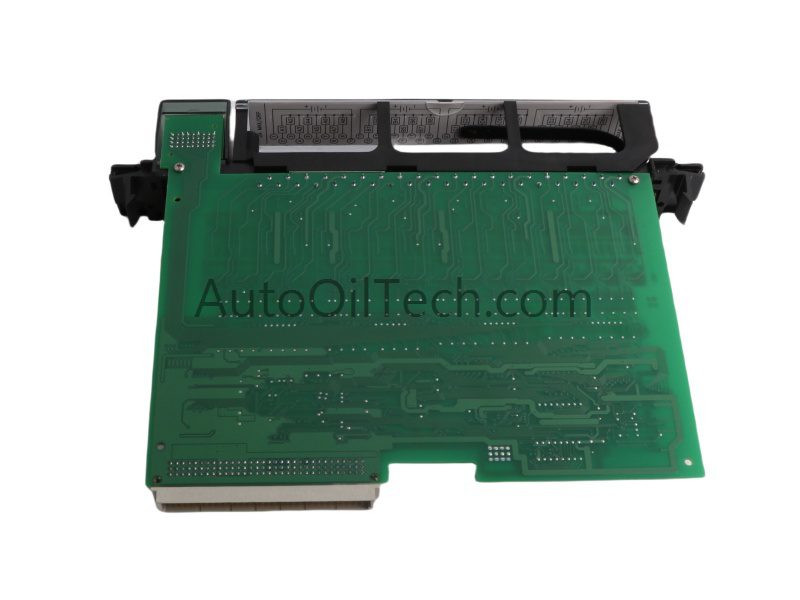

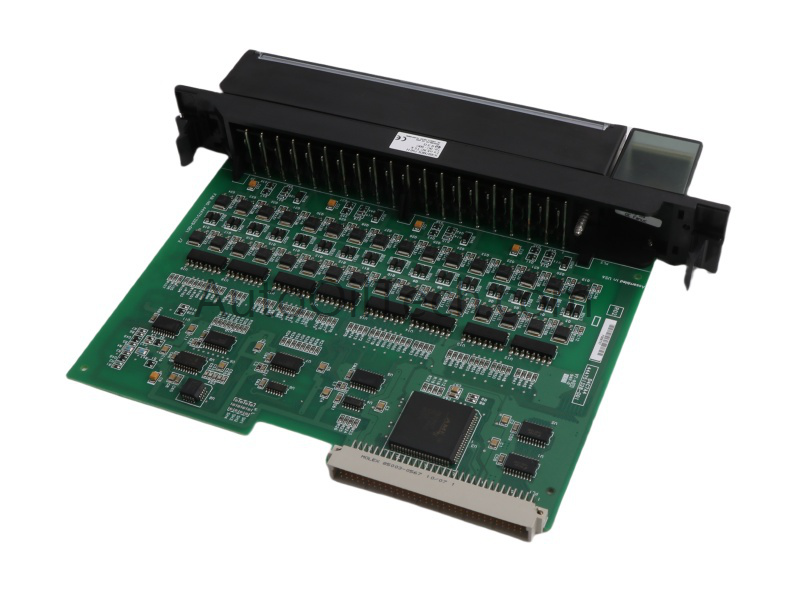

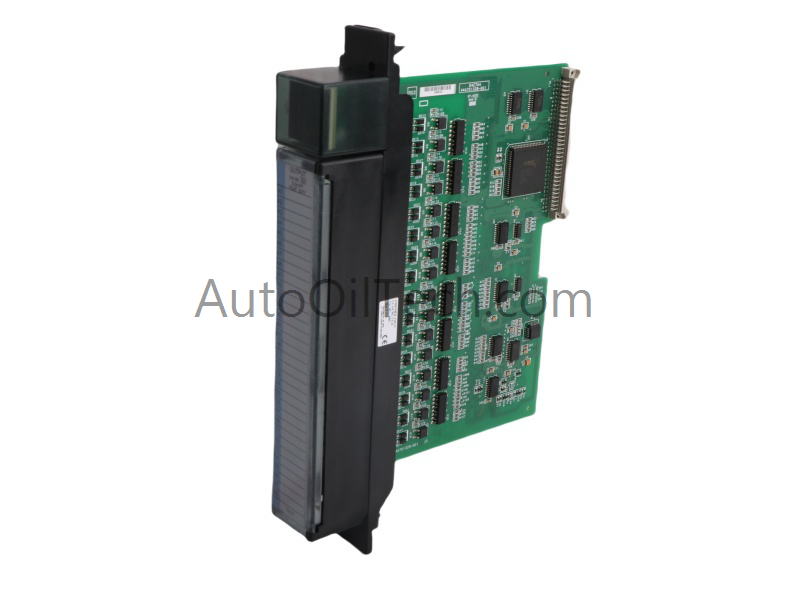

The IC697MDL750 is a 32-point discrete output module engineered for GE Fanuc’s Series 90-70 PLC systems. It supports DC loads from 20 to 60 VDC and is ideal for controlling solenoids, pilot lamps, and motor starters in industrial automation.
Key Specifications
Parameter
Details
Model Number
IC697MDL750
Manufacturer
GE Fanuc
Product Series
Series 90-70
Module Type
Discrete Output
Output Channels
32 (4 groups of 8)
Rated Voltage
24/48 VDC
Voltage Range
20–60 VDC
Max Current per Channel
0.5 A
Max Current per Group
2.0 A
Inrush Current
10 A for 20 ms
Response Time
1 ms
Output Voltage Drop
1 V max
Isolation (Group)
5000 V
Isolation (Backplane)
1500 V
Terminal Block
Removable, #22–#14 AWG wire
Bus Current Draw
0.25 A @ 5 VDC
Compliance
VME Standard C.1
Dimensions (W×H×D)
4 × 22 × 29 cm
Weight
0.58 kg
Product Origin
USA
HS Code
8537101190
Condition
Brand New
Availability
In Stock
Discontinued Status
Active
Minimum Order Quantity
1
Features
32 DC output channels with fast 1 ms switching.
Group isolation rated at 5000 V for enhanced safety.
Handles high inrush currents up to 10 A.
Removable terminal block simplifies installation and maintenance.
Complies with VME standards for system compatibility.
